Image: Look

Image: Look contains the primary image adjustment tools and sliders for viewing, color grading, and exporting R3D footage while using Legacy controls. Most adjustments in Image:Look use the slider function. Click and drag the slider left or right to decrease or increase the value, respectively. Alternatively, enter a value into the value box next to the slider to select a specific level. To add the Image:Look group to a panel while using Legacy controls, right-click in a panel and select Image:Look.

Look: Image

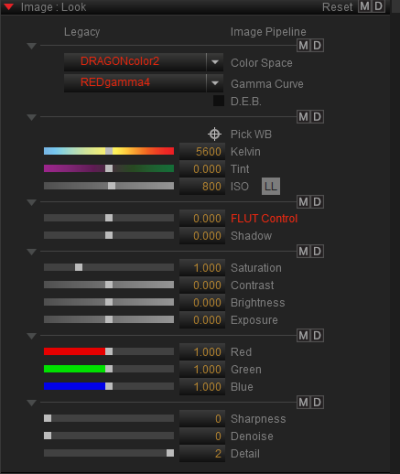

Figure: Look: Image

Image: Look groups include:

Image:Look Group

Details

Color Space and Gamma Curve

Color Space and Gamma Curve

White Balance Adjustments

White Balance Adjustments

FLUT®, Shadow, and DRX

FLUT, Shadow, and DRX

Saturation, Contrast, Brightness, Exposure

Saturation, Contrast, Brightness, and Exposure

Red, Green, Blue Channels

Red, Green, and Blue Channels

Sharpness, Denoise, Detail

Sharpness, Denoise, and Detail

Color Space and Gamma Curve

Color Space and Gamma Curve enable you to set chrominance and luminance LUTs to express the color and gamma values of your RAW footage.

Effect

description

Color Space

Determined by the final export format, such as TIFF, DPX, or XML

Gamma Curve

REDlogFilm Gamma Space setting is recommended as a neutral starting point for grading footage

D.E.B.

DRAGON Enhanced Blacks (D.E.B.) reduces red grain that affects midtones, darks, and shadows

NOTE: RED ROCKET and RED ROCKET-X do not support D.E.B.

For more information, see the following tutorials:

NOTE: Color and Gamma Space settings for R3D files are set in-camera and captured in the R3D metadata. When an R3D is opened in REDCINE-X PRO, the Color and Gamma Space settings reflect the in-camera setting.

Color Space Options

NOTE: To view all color and gamma space options, go to Preferences > General and select the Show Advanced Controls check box.

  • REDcolor
  • REDcolor2
  • REDcolor3
  • REDcolor4
  • DRAGONcolor
  • DRAGONcolor2
  • REC 2020
  • RedSpace
  • Camera RGB
  • REC 709
  • sRGB
  • Adobe 1998
  • XYZ
  • REDWideGamutRGB
  • DCI-P3
  • DCI-P3 D65

Gamma Curve Options

NOTE: To view all color and gamma space options, go to Preferences > General and select the Show Advanced Controls check box.

  • REDgamma
  • REDgamma2
  • REDgamma3
  • REDgamma4
  • REDLog
  • REDlogFilm
  • RedSpace
  • Linear
  • sRGB
  • REC 709
  • PDLog 685
  • PDLog 985
  • HDR-2084
  • BT1886
  • Log3G12
  • Log3G10
  • Hybrid Log-Gamma
  • Gamma 2.2
  • Gamma 2.6

White Balance Adjustments

White Balance is the process of adjusting how color is rendered in an image so that objects that appear white in person also appear white in the image. You can set the Kelvin slider number to the color temperature of the scene. The slider graphic indicates how the image looks at that Kelvin value.

For more information, see the Using White Balance to Control Color Casts article.

White Balance allows you to adjust the following image characteristics:

Effect

Description

Range

Default

Pick WB

Click the Pick WB crosshairs and select an area of the image that is approximately 18% gray

N/A

N/A

Kelvin

Adjust the RGB color matrix to compensate for the relative coolness or warmness

1800 K to 9400 K

5600 K

Tint1

Adjust the RGB color matrix to compensate for yellow and green tinting

–100.0 to 100.0

0.000

ISO2

Adjust the overall sensitivity of each pixel in the RAW image

50 to 12,800

800

  1. This parameter is valuable when the ambient light source contains significant amounts of yellow and green, such as in environments with fluorescent lighting.
  2. When a clip is shot with a sensor that supports Low Light Mode and Low Light Mode is enabled, the LL icon is displayed next to the ISO label.

FLUT, Shadow, and DRX

This group allows you to adjust the following image characteristics:

Effect

Description

Range

Default

FLUT Control

Adjust ISO without clipping the highlights or crushing the shadows

–8.000 to 8.000

0.000

Shadow

The shadow slider sets the black point, which determines the left-most extreme of the image histogram.

-2.000 to 2.000

0.000

DRX1

Dynamic Range Extension (DRX) attempts to recover clipped highlights

0.000 to 1.000

1.000

  1. DRX is not available for DRAGON clips.

Saturation, Contrast, Brightness, and Exposure

This group allows you to adjust the following image characteristics:

Effect

Range

Default

Saturation

0.000 to 4.000

1.000

Contrast

–1.000 to 1.000

0.000

Brightness

–10.000 to 10.000

0.000

Exposure

–7.000 to 7.000

0.000

Red, Green, and Blue Channels

This group allows you to adjust the following image characteristics independently:

Channel

Description

Range

Default

Red

Increase/decrease the gain of the Red channel

0.000 to 2.000

1.000

Green

Increase/decrease the gain of the Green channel

0.000 to 2.000

1.000

Blue

Increase/decrease the gain of the Blue channel

0.000 to 2.000

1.000

Sharpness, Denoise, and Detail

This group allows you to adjust the following image characteristics:

Effect

Range

Default

Sharpness

0 to 3

0

Denoise

0 to 6

0

Detail

0 to 2

2
