Post: Image: Effects

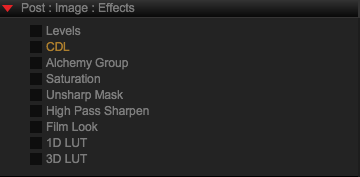

Figure: Post: Image: Effects
To add the Post: Image: Effects group to a panel, right-click in a panel and select Post: Image: Effects. The Post: Image: Effects adjustments are processed with R3D footage at export.
|
Effect |
Description |
Settings |
Range |
Default |
|---|---|---|---|---|
|
Levels |
Adjust the brightness, contrast, and tonal range via input and output black, midtone, and white points |
RGB Levels |
0 to 255 |
N/A |
|
Output Levels |
0 to 255 |
N/A |
||
|
CDL1
|
Load and apply Color Decision Lists |
N/A |
N/A |
N/A |
|
Alchemy Group |
Special control like base and richness for film |
Alchemy |
–1.000 to 1.000 |
0.000 |
|
Clarity |
–1.000 to 1.000 |
0.000 |
||
|
Skin |
0.000 to 1.000 |
0.000 |
||
|
Saturation1 |
Increase or decrease the intensity of color |
N/A |
0.000 to 2.000 |
1.000 |
|
Unsharp Mask |
Sharpen with finer control to enhance contrast along edge details |
Amount |
0 to 500 |
50 |
|
Radius |
0.100 to 5.000 |
1.000 |
||
|
Threshold |
0.00 to 255.00 |
0.000 |
||
|
High Pass Sharpen |
Sharpen with contrast along edge details |
Radius |
0.100 to 10.000 |
1.000 |
|
Film Look |
Apply film grain |
Grain Strength |
0.000 to 1.000 |
0.300 |
|
Grain Size |
1.00 to 2.00 |
1.30 |
||
|
Grain Chroma |
0.000 to 1.000 |
0.300 |
||
|
Grain Softness |
0.000 to 1.500 |
0.300 |
||
|
Shadow |
0.050 to 0.500 |
0.350 |
||
|
Highlight |
0.500 to 0.950 |
0.750 |
||
|
1D LUT |
Load and apply 1D LUTs |
N/A |
N/A |
N/A |
|
3D LUT1 |
Load and apply 3D LUTs |
Edge Length |
0 to 64 |
32 |
- Only available while using Legacy controls.
Enable Post: Image: Effects
To enable Post: Image: Effects, select the check box next to the effect that you want to enable.
NOTE: To rearrange the order of the applied effects, drag the names of the effects to your preferred location.
Adjust Post: Image: Effects
To make changes to Post: Image: Effects, follow the instructions below:
- Select the check box to activate a Post: Image: Effects group.
- Use the slider or enter a new value.
