Install the MOTION MOUNT

NOTE: You can change lens mounts in the field. However, RED recommends that you change lens mounts only in a dust-free environment.

REQUIRED TOOL(S): T20 TORX driver

1. Ensure that the camera is turned off and remove any accessories or cables that may interfere with installation.
2. Inspect the gold electrical contact pins on the front of the camera and the gold contact pads on the rear of the lens mount to ensure that they are free of any contamination.
3. Align the lens mount on the front of the camera. The camera connection pins must align with the lens mount pins.

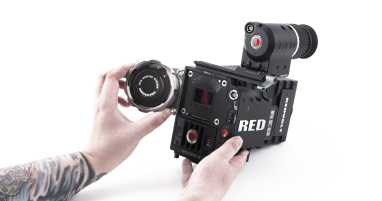

   Figure: Align Lens Mount Pins

4. Replace and loosely tighten the four (4) M4x0.7 x 8 mm lens mount screws in a cross pattern (“X” pattern) using a T20 TORX driver.

   WARNING: DO NOT FULLY TIGHTEN.

   NOTE: Some lens mounts have captive screws that are not removable.

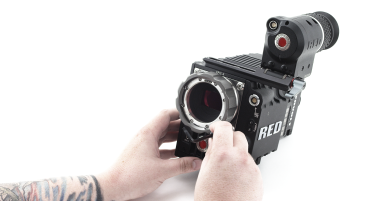

   Figure: Tighten Screws

5. Tighten the four (4) lens mount screws evenly in a cross pattern (“X” pattern) using a T20 TORX driver. DO NOT exceed 350 in-oz, or damage may occur.

WARNING: DO NOT OVERTIGHTEN.

6. After installation, a hardware rediscover or firmware upgrade may be required. If a MOTION MOUNT is not recognized, you will be unable to access the MOTION MOUNT menu at Menu > Settings > Setup > Lens. To perform a hardware rediscover, go to Menu > Settings > Maintenance > Rediscover. A system reboot is required after a hardware rediscover.

   NOTE: For more information and troubleshooting, go to Camera Does Not Recognize the MOTION MOUNT.

   NOTE: If you need to replace any screws, submit a Support ticket at https://support.red.com.
