Install RED ROCKET-X and HD-SDI Slot Filler

Since each Windows-based computer is different and highly customizable, the instructions in this section are general and cover the essential steps for installing a RED ROCKET-X and HD-SDI slot filler (optional) in a Windows-based computer.

Depending on how your system is set up, you may need to rearrange components in your system or perform actions not described in these instructions in order to successfully install the RED ROCKET-X and HD-SDI slot filler. For more information about installing components in your system, refer to the computer manufacturer instructions.

WARNING: The computer system you are installing the RED ROCKET-X in works with voltages that can be hazardous to your health.

1. Ensure that the computer is turned off.

2. Wait 5 to 10 minutes to ensure that the system components cool down.

3. Unplug the power cable and all external cables from the computer.

   WARNING: Never work on the system or access its interior while any power cables are plugged in.

4. Touch the metal on the outside of the computer to discharge any static electricity from your body.

   NOTE: To avoid generating static electricity while installing the RED ROCKET-X, DO NOT walk around the room until you have completed the installation and closed the computer.

5. Lay the Windows-based computer on its side.

6. Open the computer panel so that you can access the PCIe slots. For more information, refer to the computer manufacturer instructions.

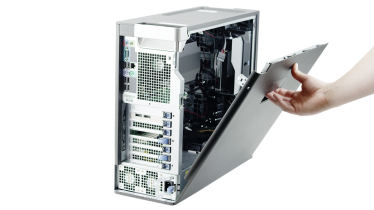

   Figure: Remove Panel

7. Remove one (1) free slot bracket from the system. Depending on your Windows-based computer, you may need to use a Phillips #1 screwdriver to remove the slot bracket.

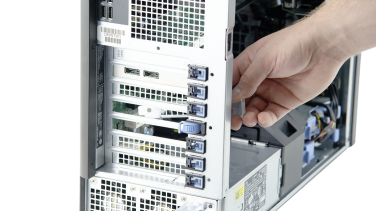

   Figure: Remove Slot Bracket

8. Line up the RED ROCKET-X connectors with a PCIe x16 physical slot that provides at least 16 lanes (x16), and then gently but firmly press the card into the slot. If you installed the PC extender, ensure that the PC extender slides into the PCIe card holder.

   NOTE: To prevent damage to your system and the RED ROCKET-X, DO NOT rock the card or use excessive force when installing the RED ROCKET-X.

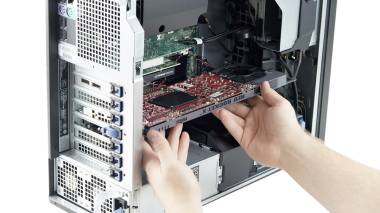

   Figure: Insert RED ROCKET-X

9. Plug the Windows-based computer 6-pin PCIe power cable into the RED ROCKET-X. Make sure that the latch of the power cable aligns with the corresponding slot on the RED ROCKET-X.

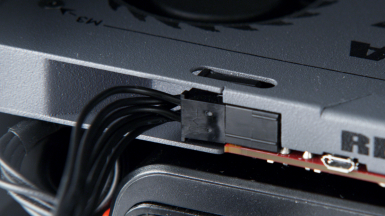

   Figure: Connect Power to RED ROCKET-X

10. If you are using the HD-SDI slot filler, follow the instructions below to install and connect the HD-SDI slot filler:

    For more information, go to Supported HD-SDI Signals.

    1. Remove one (1) free slot bracket from the system. Depending on your Windows-based computer, you may need to use a Phillips #1 screwdriver to remove the slot bracket.

    2. Slide the HD-SDI slot filler into the empty slot so that the SDI Out B connector is toward the back.

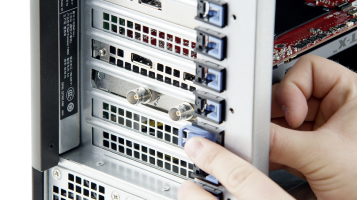

       Figure: Install HD-SDI Slot Filler

       CAUTION: Ensure that the HD-SDI slot filler or connectors DO NOT contact other components inside the computer.

    3. Secure the HD-SDI slot filler. Depending on your Windows-based computer, you may need to use a Phillips #1 screwdriver to install a screw that attaches the HD-SDI slot filler to the computer.

    4. Connect the SDI Out A cable on the HD-SDI slot filler to the SDI Out A connector on the RED ROCKET-X. The SDI Out A connector is the right connector when the RED ROCKET-X is installed.

    5. Connect the SDI Out B cable on the HD-SDI slot filler to the SDI Out B connector on the RED ROCKET-X. The SDI Out B connector is the left connector when the RED ROCKET-X is installed.

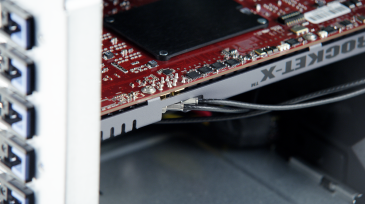

       Figure: Connect HD-SDI Slot Filler to RED ROCKET-X

11. Reinstall the computer casing.

12. Return the computer to the upright position.

13. Reconnect all cables to the computer system.

14. To install or upgrade the RED ROCKET-X driver and firmware, go to Install RED ROCKET-X Software.
