HD-SDI Slot Filler
The HD-SDI slot filler provides optional high-definition serial digital interface (HD-SDI) connectors for the RED ROCKET. Installing the HD-SDI slot filler is optional. Review your system and project requirements before you decide whether or not to install the HD-SDI slot filler.

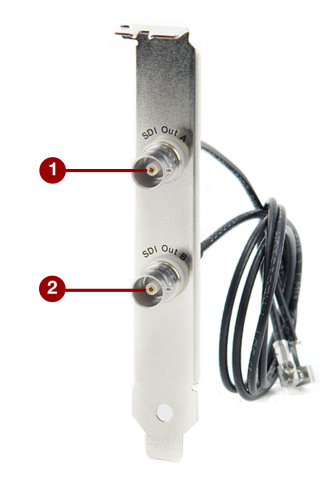

Figure: HD-SDI Slot FIller Connectors
|
HD-SDI Slot FIller Connectors |
||
|---|---|---|
|
# |
Connector |
Description |
|
1 |
SDI Out A |
BNC connector for an output of digital video signals (serial digital interface, port A); either output of YUV in single-link or first stream of RGB in dual-link mode |
|
2 |
SDI Out B |
BNC connector for an output of digital video signals (serial digital interface, port B); output of the second stream of RGB in dual-link mode |
NOTE: When the RED ROCKET Breakout Box is on and connected to the RED ROCKET, the SDI outputs of the RED ROCKET are inoperative.
