RED ROCKET
NOTE: Your RED ROCKET may be either green or red. Earlier models are green, and later models are red. However, there is no difference in functionality between the different models.

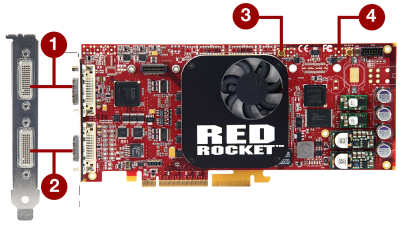

Figure: RED ROCKET Connectors
|
RED ROCKET Connectors |
||
|---|---|---|
|
# |
Connector |
Description |
|
1 |
DVI A/B |
DMS-59 connector for an output of digital RGB 8 bit video signals (channel A/B, two single-link connections). This connector can be connected to a DMS-59 to Dual DVI-I Y Splitter Cable (included) to provide two standard DVI connectors. |
|
2 |
DVI C/D |
DMS-59 connector for an output of digital RGB 8 bit video signals (channel C/D, used for two single-link connections in quad display applications). This connector can be connected to a DMS-59 to Dual DVI-I Y Splitter Cable (included) to provide two standard DVI connectors. |
|
3 |
SDI Out A |
MCX connector for an output of digital video signals (serial digital interface, port A); either output of YUV in single-link or first stream of RGB in dual-link mode. |
|
4 |
SDI Out B |
MCX connector for an output of digital video signals (serial digital interface, port B); output of the second stream of RGB in dual-link mode. |
