EPIC/SCARLET Adaptor Operations

This section describes the installation and removal of EPIC/SCARLET module adaptors.

Install the +1 Adaptor Module

REQUIRED TOOL(S): T20 TORX® driver

  1. Turn off the camera.

  2. Remove the REDMOTE, if attached.

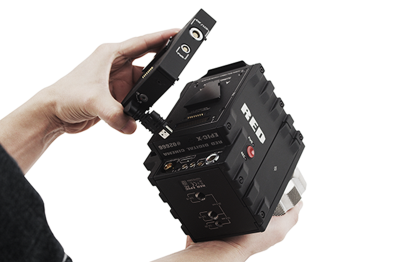

  3. Position the +1 Adaptor Module over the V-mount on the rear of the BRAIN.

    4. Figure: Install the +1 Module Adaptor

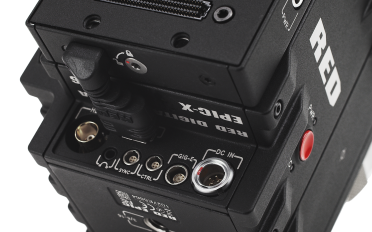

  4. Insert the HDMI connector into the HDMI port on the BRAIN.

    5. Insert the HDMI Connector to the BRAIN

    Figure: Insert the HDMI Connector to the BRAIN

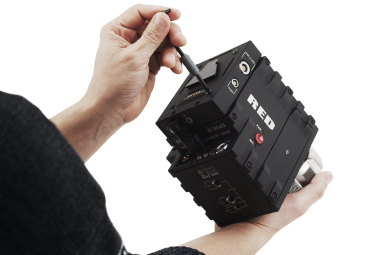

  1. Apply pressure and tighten the four (4) captive screws in a cross pattern (“X” pattern) approximately two (2) turns each using a T20 TORX driver. DO NOT FULLY TIGHTEN.

    2. Install Screws

    Figure: Install Screws

  2. Fully tighten the four (4) screws in a cross pattern (“X” pattern).

    WARNING: DO NOT OVERTIGHTEN.

Remove the +1 Adaptor Module

REQUIRED TOOL(S): T20 TORX driver

  1. Turn off the camera.
  2. Loosen the four (4) captive mounting screws in a cross pattern (“X” pattern) using a T20 TORX driver.
  3. Disconnect the HDMI connector from the BRAIN.
  4. Remove the +1 Adaptor Module from the BRAIN.
