DSMC2 REDVOLT XL Module
Figure: DSMC2 REDVOLT XL Module
The DSMC2 REDVOLT XL Module mounts seamlessly to the back of the DSMC2 BRAIN—and select other I/O expanders—to provide support for long-lasting and rechargeable REDVOLT XL batteries. The DSMC2 REDVOLT XL Module features a smaller, more ergonomic design compared to the REDVOLT XL Module with one (1) dual-action release button for removing an attached battery.
The DSMC2 REDVOLT XL Module offers a DC IN power port that can be used to power the camera system when the module is attached to the BRAIN®. An included protective baseplate enables the DSMC2 REDVOLT XL Module to serve as a portable and stand-alone REDVOLT XL battery charger. Plug in the DSMC® AC Power Adaptor to the 6-pin 1B DC IN connector on the module and connect a REDVOLT XL battery. While the module is mounted to the BRAIN, it only charges an attached REDVOLT XL battery if the BRAIN is powered off.
Two (2) rear facing auxiliary ports provide power for external camera accessories, while remaining out of your way while shooting.
WARNING: DO NOT attempt to power a third-party device without first verifying the cabling and connections are correct, since that may cause damage. Damage to the device, the module, or other components of the camera system caused by attempting to power a third-party device incorrectly may not be covered under warranty.
NOTE: The DSMC2 REDVOLT XL Module ONLY supports REDVOLT XL batteries. DO NOT use a REDVOLT battery.
Insert a REDVOLT XL
- Align and insert the REDVOLT XL.
- Apply pressure to the REDVOLT XL until a click is heard, signalling the battery is properly seated.
Remove a REDVOLT XL
-
Press the Eject button on top of the DSMC2 REDVOLT XL Module.
- Remove the REDVOLT XL.

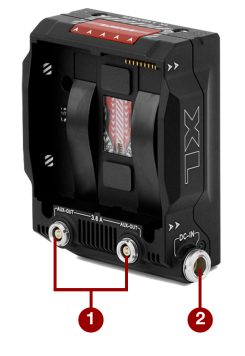

DSMC2 REDVOLT XL Module Connections
Figure: DSMC2 REDVOLT XL Module
|
# |
Connector |
Connector Type |
Connector Function |
|---|---|---|---|
|
1 |
AUX POWER OUT - 3.8 A |
2-pin 0B |
Provides a combined 3.8 A max current out for 2-pin based accessories when the module is receiving power |
|
2 |
DC IN |
6-pin 1B |
Provides power to the camera system, the AUX POWER OUT port, and an approximate 2 A charge current to an attached REDVOLT XL battery |
AUX POWER OUT
The 2-pin 0B AUX POWER OUT port provides a combined maximum 3.8 A of current for camera accessories. That total current is provided through one AUX POWER OUT port, or split between the two ports.
NOTE: The AUX POWER OUT port is always active whenever a charged REDVOLT XL battery is attached to the module, regardless of camera state or presence of a DC power source.
Figure: Front Face of AUX POWER OUT Connector
|
2-Pin 0B AUX POWER OUT Connector |
|||
|---|---|---|---|
|
Pin |
Signal |
Description |
Direction |
|
1 |
GROUND |
Common ground |
N/A |
|
2 |
+11.5 to +17 VDC |
+11.5 to 17 VDC unregulated battery pass-through power |
Out |
NOTE: Mating connector is EEG.0B.302.CLL.
DC IN
Use the 6-pin 1B DC IN port to charge batteries and provide power to the AUX POWER OUT port.
Figure: Front Face of DC IN Connector
|
6-pin 1B DC IN Connector |
|||
|---|---|---|---|
|
PIN |
Signal |
Description |
Direction |
|
1 |
+VBATT |
Power input, +11.5 to +17 VDC |
Out |
|
2 |
+VBATT |
Power input, +11.5 to +17 VDC |
Out |
|
3 |
SCL-BATT |
Serial battery bus clock |
Out |
|
4 |
GROUND |
Power return (camera ground) |
Out |
|
5 |
GROUND |
Power return (camera ground) |
Out |
|
6 |
SDA-BATT |
Serial battery bus clock |
Out |
NOTE: Mating connector is FGJ.1B.306.CWLD72Z.
Compatible Cables
- 790-0138: RED 2B-to-1B Power Adaptor Cable
- 790-0164, 790-0646: XLR Power Cable (10')
- 790-0165, 790-0647: XLR Power Cable (30')
DSMC2 REDVOLT XL Module Indicator LEDs
The DSMC2 REDVOLT XL Module indicator LEDs display information about the current state of an equipped REDVOLT XL Battery when the module is used as a desktop charging station. Refer to the following table for information about the different REDVOLT XL charging states.
|
Color/Flashing |
Description |
|---|---|
|
Green |
Battery is fully charged |
|
Green flashing |
Charging; half second on, half second off |
|
Green/Red flashing |
Lamp self test at power up; half second red, half second green |
|
Green/Red flashing (alternating) |
Error; alternating, half second green, half second red, repeat |
|
Red flashing |
Battery discharge alert; heartbeat (red) pulse once per minute indicates that the battery is discharging and should be removed from module1 |
- The DSMC2 REDVOLT XL Module draws a small amount of power any time a battery is attached, when there is no charging source available.
Charge With the DSMC2 REDVOLT XL Module
The DSMC2 REDVOLT XL Module can charge one (1) REDVOLT XL battery, but only when the camera is off. When the camera is on, power is drawn from the battery rather than the attached power supply, resulting in a net loss of power. The DSMC2 REDVOLT XL Module can fully charge a discharged REDVOLT XL in approximately four (4) hours.
To charge a REDVOLT XL battery with the DSMC2 REDVOLT XL Module, follow the instructions below:
- Turn off the camera.
- Attach the protective baseplate to the DSMC2 REDVOLT XL Module.
- Connect the DSMC AC Power Adaptor to the DC IN port on the DSMC2 REDVOLT XL Module.
NOTE: The battery does not charge if the power source is connected to the DC IN port on the BRAIN.
- Insert a REDVOLT XL battery into the DSMC2 REDVOLT XL Module.
WARNING: DO NOT use the DSMC2 REDVOLT XL Module as a desktop charger without the protective baseplate to cover the rear connectors. This may cause irreparable damage to the rear connectors on the module and is not covered under warranty.
