DSMC2 V-Lock Battery Module
Figure: DSMC2 V-Lock Battery Module
The DSMC2 V-Lock Battery Module is a low profile cable-free module that enables you to power your DSMC2 BRAIN and camera accessories using RED BRICK, REDVOLT-V, or other standard V-Lock batteries. The V-Lock mount and protected release button ensure ongoing power even during mobile shoots.
This DSMC2 battery module offers a P-Tap connector on top and an auxiliary port on the side for powering peripherals and accessories. Together the P-Tap and auxiliary connectors support a maximum combined current of 3.8 Amps.
The module also offers a DC IN power port that can be used to power the camera system when the module is attached to the BRAIN. When DC IN power is supplied to the module, and the camera is turned off, the module can also trickle charge the attached V-Lock battery.
Manufactured from robust aluminum alloy, this DSMC2 battery module offers a blend of utility and power support in a lightweight and space-saving form factor. The DSMC2 V-Lock Battery Module is an ideal power solution for use with most DSMC2 expanders. Alternatively, connect the DSMC2 V-Lock Battery Module directly to your DSMC2 BRAIN for a low-profile, battery-only power configuration.
WARNING: DO NOT attempt to power a third-party device without first verifying the cabling and connections are correct, since that may cause damage. Damage to the device, the module, or other components of the camera system caused by attempting to power a third-party device incorrectly may not be covered under warranty.
NOTE: This design of the DSMC2 V-Lock Battery Module (720-0052) replaces the earlier version of the module (720-0049), which did not have the AUX OUT and DC IN ports. All other functionality is the same.

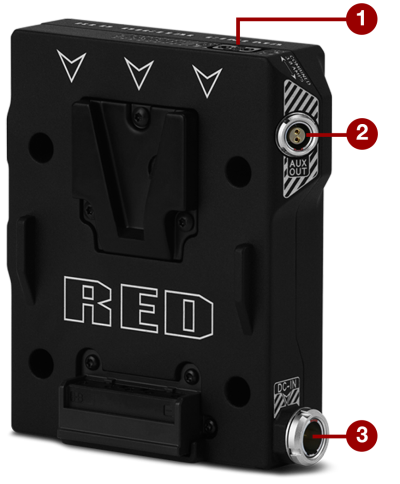

DSMC2 V-Lock Battery Module Connectors
Figure: DSMC2 V-Lock Battery Module
|
# |
Connector |
Connector Type |
Connector Function |
|---|---|---|---|
|
1 |
AUX Power (P-TAP) - 3.8 A1 |
2-pin Female |
Provides a 3.8 A max current when the module is receiving power |
|
2 |
AUX POWER OUT - 3.8 A1 |
2-pin 0B |
Provides a 3.8 A max current out for 2-pin based accessories when the module is receiving power |
|
3 |
DC IN |
6-pin 1B |
Provides power to the camera system, the AUX POWER OUT port, and an approximate 2 A charge current to an attached battery |
- The AUX Power (P-TAP) and AUX POWER OUT connectors share a 3.8 A max current. For example, if one (1) port is drawing 2A, the other port can provide up to 1.8A.
AUX Power (P-Tap)
The DSMC2 V-Lock Battery Module offers one (1) P-Tap connector that provides power (3.8 A max) for camera accessories.
Figure: DSMC2 V-Lock Battery Module P-Tap Connector
|
2-pin P-TAP Connector |
|||
|---|---|---|---|
|
PIN |
Signal |
Description |
Direction |
|
1 |
GROUND |
Common ground |
N/A |
|
2 |
+11.5 to +17 VDC |
+11.5 to 17 VDC unregulated battery pass-through power |
Out |
Aux Power Out
The DSMC2 V-Lock Battery Module offers one (1) AUX POWER OUT port that provides power (3.8 A max) for camera accessories.
Figure: Front Face of AUX POWER OUT Connector
|
2-Pin 0B AUX POWER OUT Connector |
|||
|---|---|---|---|
|
Pin |
Signal |
Description |
Direction |
|
1 |
GROUND |
Common ground |
N/A |
|
2 |
+11.5 to +17 VDC |
+11.5 to 17 VDC unregulated battery pass-through power |
Out |
DC IN
Use the DC IN port to provide power to the camera system. When power is applied to the DC IN port, Aux Power is available from the module, and the attached battery may be charged.
Figure: Front Face of DC IN Connector
|
6-pin 1B DC IN Connector |
|||
|---|---|---|---|
|
PIN |
Signal |
Description |
Direction |
|
1 |
+VBATT |
Power input, +11.5 to +17 VDC |
Out |
|
2 |
+VBATT |
Power input, +11.5 to +17 VDC |
Out |
|
3 |
SCL-BATT |
Serial battery bus clock |
Out |
|
4 |
GROUND |
Power return (camera ground) |
Out |
|
5 |
GROUND |
Power return (camera ground) |
Out |
|
6 |
SDA-BATT |
Serial battery bus clock |
Out |
NOTE: Mating connector is FGJ.1B.306.CWLD72Z.
Compatible Cables
- 790-0138: RED 2B-to-1B Power Adaptor Cable
- 790-0164, 790-0646: XLR Power Cable (10')
- 790-0165, 790-0647: XLR Power Cable (30')
Install the DSMC2 V-Lock Battery Module
REQUIRED TOOL(S): T20 TORX® driver
- Turn off the camera.
- Position the module on the rear of the camera or expander, aligning the connector on the front of the module with the connector on the rear of the camera or expander.
- Apply pressure and tighten the four (4) captive screws in a cross pattern (“X” pattern) approximately two (2) turns each using a T20 TORX driver. DO NOT FULLY TIGHTEN.
- Fully tighten the four (4) screws in a cross pattern (“X” pattern) using a T20 TORX driver.
WARNING: DO NOT OVERTIGHTEN.
Insert a Battery
To insert a RED BRICK, REDVOLT-V, or other standard V-Lock battery in the DSMC2 V-Lock Battery Module , follow the instructions below:
- Install the DSMC2 V-Lock Battery Module. For more information, go to Install the DSMC2 V-Lock Battery Module .
- Align and insert the battery.
- Apply pressure to the battery until a click is heard, signaling the battery is properly seated.
Remove a Battery
To remove a RED BRICK, REDVOLT-V, or other standard V-Lock battery from the DSMC2 V-Lock Battery Module, follow the instructions below:
- Press the Eject button to the left of the DSMC2 V-Lock Battery Module.
- Remove the battery.
Charge Batteries With the DSMC2 V-Lock battery Module
The DSMC2 V-Lock Battery Module can charge one (1) RED BRICK, REDVOLT-V, or other standard V-Lock battery, but only when the camera is off. When the camera is on, power defaults to the DC IN rather than the attached battery. The DSMC2 V-Lock Battery Module can charge a fully discharged RED BRICK in approximately 10.4 hours and a REDVOLT-V in approximately three (3) hours.
To charge a RED BRICK, REDVOLT-V, or other standard V-Lock battery with the DSMC2 V-Lock Battery Module, follow the instructions below:
- Turn off the camera.
- Attach the DSMC2 V-Lock Battery Module to the BRAIN or expander.
- Connect the DSMC AC Power Adaptor to the DC IN port on the DSMC2 V-Lock Battery Module.
NOTE: The battery does not charge if the power source is connected to the DC IN port on a separate expander.
- Insert the battery into the DSMC2 V-Lock Battery Module.
WARNING: DO NOT use the DSMC2 V Lock Battery Module as a desktop charger. This may cause damage to the rear connectors on the module and is not covered under warranty.
