REDVOLT Charger (Quad)

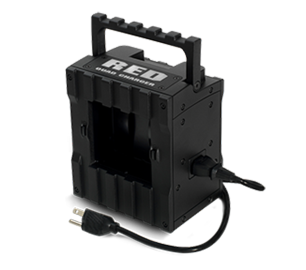

Figure: REDVOLT Charger (Quad)
The REDVOLT Charger (Quad) is the fastest way to charge up to four REDVOLT or two REDVOLT XL batteries. All batteries charge simultaneously, with up to 1.75 A distributed evenly to each cell until fully charged. The REDVOLT Charger (Quad) can charge multiple REDVOLT or REDVOLT XL batteries in two (2) hours or less.
NOTE: The REDVOLT Charger (Quad) stops charging automatically if battery temperature exceeds 40˚C (104˚F), or drops below 0°C (32°F).
REDVOLT Charger (Quad) LED Indicators
The light on the REDVOLT Travel Charger displays a specific color and pattern indicating the state of charge.
|
Color Pattern |
Description |
|---|---|
|
Green |
Charger on, battery fully charged |
|
Green/Red flashing (alternating) |
Charger on, fail condition |
|
Amber flashing |
Charger on, battery connected and charging |
Recharge REDVOLT Batteries
- Connect the REDVOLT Charger (Quad) to a 100–240 VAC, 50/60 Hz power outlet.
- Insert REDVOLT or REDVOLT XL battery into the charging bay.
- Apply pressure until you hear a click to ensure the battery is fully seated.
- Charge the battery until the LED indicator turns green, signalling a fully charged battery.
- Press the Eject button on the desired battery charging bay(s) and remove the battery.
- REDVOLT: Press the Eject button to eject the battery.
- REDVOLT XL: Press both Eject buttons to eject the battery.
