DSMC2 REDVOLT Expander

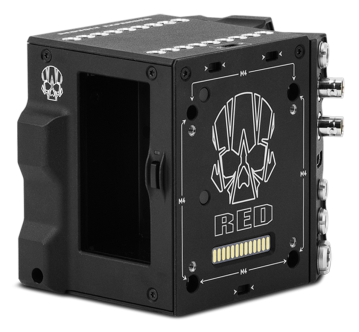

Figure: DSMC2 REDVOLT Expander
DSMC2 REDVOLT Expander LED Indicator
The DSMC2® REDVOLT Expander LED indicator displays a specific color and pattern indicating the state of charge.
|
Color Pattern |
Description |
|---|---|
|
Off |
No battery |
|
Green |
Battery fully charged |
|
Green flashing |
Battery connected and charging |
|
Green/Red flashing (alternating) |
Fail condition |
|
Green/Red flash |
Power ON LED Test |
|
Red |
Battery discharge alert |
