RED Cables
RED cables and accessories provide solutions for video monitoring, audio, and power supply requirements.
EVF/LCD Cables

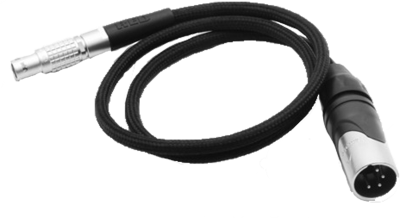

Figure: EVF/LCD Cable (18")
EVF/LCD Cables are high quality cables with industry-standard LCD/EVF connectors. They provide a clean video feed and power source from the EVF/LCD port on the BRAIN to an EVF or LCD display. EVF/LCD cables are available in straight or right angle connector options.
NOTE: These EVF/LCD cables are compatible with EPIC/SCARLET and DSMC2 cameras. The DSMC2 LCD/EVF Adaptor A is required to use these EVF/LDC cables with DSMC2 cameras.
RED offers the following EVF/LCD Cables:
|
Item |
Part Number |
|---|---|
|
EVF Cable (6') |
790-0052 |
|
EVF Cable (10') |
790-0053 |
|
LCD Cable (6') |
790-0055 |
|
LCD Cable (10') |
790-0056 |
|
LCD/EVF Cable (18") |
790-0151, 790-0641 |
|
LCD/EVF Cable (18", Right-to-Straight) |
790-0153, 790-0642 |
|
LCD/EVF Cable (24", Right-to-Straight) |
790-0451, 790-0651 |
|
LCD/EVF Cable (4', Right-to-Straight) |
790-0161, 790-0644 |
|
LCD/EVF Cable (7", Right-to-Right) |
790-0158 |
|
LCD/EVF Cable (12", Right-to-Right) |
790-0162, 790-0645 |
|
LCD/EVF Cable (18", Right-to-Right) |
790-0448, 790-0649 |
|
LCD/EVF Cable (32", Right-to-Right) |
790-0449, 790-0650 |
4-Pin to 2-Pin Adaptor Cable

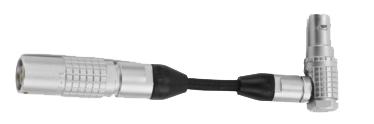

Figure: 4-Pin to 2-Pin Adaptor Cable
The 4-Pin to 2-Pin Adaptor Cable enables you to power 2-pin based accessories from the +1 Adaptor Module or Pro I/O Module.
NOTE: The 4-Pin to 2-Pin Adaptor Cable is compatible with EPIC and SCARLET cameras.
2-Pin 1B-to-Flying Lead Cable
The 2-Pin 1B-to-Flying Lead Cable provides a 1B LCD/EVF connector and flying leads for custom cable creation. Create a custom cable for powering camera accessories using 1B 12 V ports available on DSMC modules.
NOTE: The 2-Pin 1B-to-Flying Lead Cable is compatible with EPIC and SCARLET cameras.
2B-to-1B Power Adaptor Cable
The 2B-to-1B Power Adaptor Cable enables support for RED ONE® power accessories that use 2B connectors.
NOTE: The 2B-to-1B Adaptor Cable is compatible with DSMC2 cameras.
RED 2B-To-1B Power Cable (10')
The RED 2B-To-1B Power Cable (10') is a high-quality cable for powering your DSMC or DSMC2® camera from a RED BRICK Charger.
NOTE: The RED 2B-To-1B Power Cable is compatible with EPIC, SCARLET, and DSMC2 cameras.
Pro I/O Aux Power Out + GPIO Cable (6')

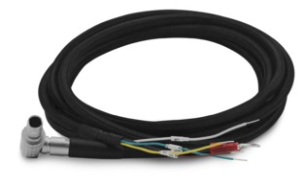

Figure: Pro I/O Aux Power Out + GPIO Cable (6')
The Pro I/O Aux Power Out + GPIO Cable (6') connects to the 4-pin GPIO port and/or 4-pin PWR port on the Pro I/O Module. The Pro I/O Aux Power Out + GPIO Cable (6') cable allows you to remotely trigger the camera from an external device and/or provide unregulated +11 VDC to +17 VDC battery power to an external device.
WARNING: DO NOT attempt to make your own Pro I/O Aux Power Out + GPIO Cable.
NOTE: The Pro I/O Aux Power Out + GPIO Cable is compatible with EPIC and SCARLET cameras.
