Power Adaptors and Accessories

This section describes power accessories that provide external power options for the camera system.

DSMC AC Power Adaptor

The DSMC^® AC Power Adaptor provides a maximum sustained power load of 150 W (15 V at 10 A) for continuous shooting. An industry-standard 1B LCD/EVF connector attaches directly to the DSMC BRAIN^®.

The output of the DSMC AC Power Adaptor is overcurrent protected, and the adaptor shuts down if an excess load condition occurs. If the output trips for any reason, remove any external loads from the camera (such as lights, motors, etc) and unplug the adaptor.

NOTE: The DSMC AC Power Adaptor is compatible with DSMC2^® cameras.

RED Cradle

The RED Cradle enables you to simultaneously mount a RED BRICK and RED DRIVE or RED RAM.

NOTE: Requires a 2B-to-1B Power Adaptor Cable for use with the camera.

NOTE: The RED Cradle is compatible with DSMC2 cameras.

RED Quickplate

The RED Quickplate provides a reliable solution for powering the camera with a RED BRICK.

NOTE: Requires a 2B-to-1B Power Adaptor Cable for use with the camera.

NOTE: The RED Quickplate is compatible with DSMC2 cameras.

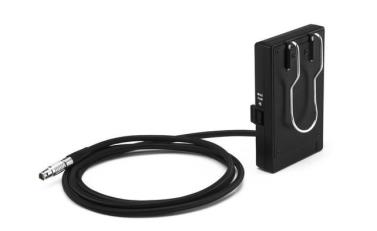

Battery Belt Clip (DSMC)

The Battery Belt Clip (DSMC) provides a portable power solution for lightweight hand-held configurations. The attached power cable with a 6-pin 1B DC-IN connector allows you to plug directly into the BRAIN DC IN port, without the use of a 2B-to-1B Power Adaptor Cable.

NOTE: The Battery Belt Clip (DSMC) is compatible with DSMC2 cameras.
