EPIC/SCARLET Module Types and Priority
Attach modules to the EPIC/SCARLET BRAIN® in the order outlined below to optimize power distribution, cable position, and access to batteries, media, and controls.
Figure: DSMC Module Priority
Attach modules to the back of the BRAIN in the following order:
- Adaptor Modules: The +1 Adaptor Module or Module Adaptor provide support for other modules.
- Battery Modules: The Pro Battery Module (Dual), the Pro Battery Module (Quad), and the REDVOLT XL Module are examples of rear battery modules.
- Battery Modules: The Pro Battery Module (Dual), the Pro Battery Module (Quad), and the REDVOLT XL Module are examples of rear battery modules.
- Media Modules: The Rear SSD Module is the only rear mountable media module.
- Other Devices: The Backpack Quickplate (Short) with Backpack Base Plate, R.C.P.™ Bridge, or REDMOTE.
Pro I/O Module

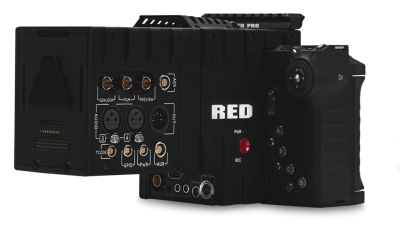

Figure: Module Adaptor and Pro I/O Module
When using a Pro I/O Module along with other EPIC/SCARLET modules, ensure that it is attached closest to the BRAIN, behind the Module Adaptor or +1 Adaptor Module. This improves access to cables, modules, and batteries, as well as ensuring proper power distribution.
WARNING: DO NOT use the EVF/LCD port on the +1 Adaptor Module if a Pro I/O Module is connected to the DSMC® BRAIN. The Pro I/O Module overrides the EVF/LCD and AUX power out ports when connected.
