3-Axis System Cables
This section provides the pinout information for each side of each cable.
RED W.M.D. Motor Cable (Focus, Iris, Zoom)
The RED W.M.D. Motor Cable is a 7-pin 1B to 7-pin 1B LEMO cable used to connect your RED Lens Control Motor to your RED W.M.D. RED offers the following cables:
-
790-0434: RED W.M.D. Motor Cable 12"
-
790-0406: RED W.M.D. Motor Cable 18"
-
790-0412: RED W.M.D. Motor Cable 24"
NOTE: The RED Lens Control Motor is also compatible with third-party systems using an appropriate RED motor cable with the proper internal identification resistor. For more information, visit the RED Store or submit a Support ticket at https://support.red.com.

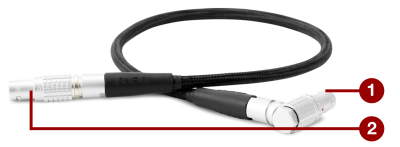

Figure: RED W.M.D. Motor Cable (12")
|
# |
connector |
Part Number |
|---|---|---|
|
1 |
J1 |
LEMO FHG.1B.307.CLAD62Z |
|
2 |
J2 |
LEMO FGG.1B.307.CLAD62Z |
RED W.M.D. Motor Cable (Focus, Iris, Zoom) Pinout
Figure: Front Face View J1 (Left)
|
red W.M.D. motor cable (focus, iris, zoom) |
|||
|---|---|---|---|
|
J1 |
J2 |
Signal |
Wire Color |
|
J1-1 |
J2-1 |
Motor (+) |
Red |
|
J1-2 |
J2-2 |
Motor (–) |
Black |
|
J1-3 |
J2-3 |
Encoder A |
Orange |
|
J1-4 |
J2-4 |
+5 VDC |
Brown |
|
J1-5 |
J2-5 |
GND |
Blue |
|
J1-6 |
J2-6 |
Encoder B |
Violet |
|
J1-7 |
J2-7 |
Motor ID |
Yellow |
|
J1-SHELL |
J2-SHELL |
GND (Shield) |
Braid Shield |
