RED Start/Stop Cable (1B to BNC)
The RED Start/Stop Cable (1B to BNC) is used with the Sync Cable to provide start/stop support and allow external timecode and genlock to be connected to the camera. This cable connects to the EXP port on the W.M.D. and an auxiliary device for start/stop, genlock, and timecode. RED offers the following cable:
-
790-0416: RED Start/Stop Cable (1B to BNC)
NOTE: Requires the 3BNC-to-00 LEMO Sync Cable and a BNC-to–BNC Adaptor (both are included with the RED 3-Axis Lens Control System).
NOTE: When using the RED Start/Stop Cable (1B to BNC), you must configure the W.M.D. for DSMC start/stop operation only. On the W.M.D., go to Select > Start/Stop > DSMC.

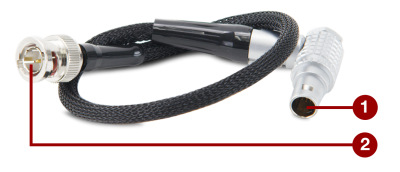

Figure: RED Start/Stop Cable (1B to BNC)
|
# |
Connector |
Part Number |
|---|---|---|
|
1 |
J1 |
LEMO FGG.1B.314.CLAD42Z |
|
2 |
J2 |
Amphenol 31-70013 |
RED Start/Stop Cable (1B to BNC) Pinout
Figure: Front Face View of J1 (Left)
|
red start/stop cable (1b to bnc) |
|||
|---|---|---|---|
|
J1 |
J2 |
Signal |
Wire Color |
|
J1-1 |
J2-1 (SHELL) |
GND |
Yellow |
|
J1-2 |
- |
232 Rx |
- |
|
J1-3 |
- |
+12 VDC |
- |
|
J1-4 |
- |
232 Tx |
- |
|
J1-5 |
- |
Start/Stop Contact Pin |
- |
|
J1-6 |
- |
Start/Stop Status in 3V3 |
- |
|
J1-7 |
J2-2 |
DSMC Start/Stop 3.3 Con Pin |
Red |
|
J1-8 |
- |
AUX GPIO 1_3.3 |
- |
|
J1-9 |
- |
+3.3 VDC |
- |
|
J1-10 |
- |
Cable ID |
- |
|
J1-11 |
- |
- |
- |
|
J1-12 |
- |
AUX GPIO 2_3.3 |
- |
|
J1-13 |
- |
- |
- |
|
J1-14 |
- |
- |
- |
|
J1-SHELL |
J2-1 (SHELL) |
GND (SHIELD) |
Braid Shield |
