W.M.D. Connectors

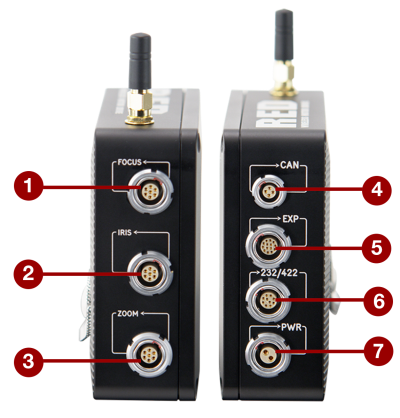

Figure: W.M.D. Connections
|
# |
Connector |
Connector Type |
Connector Function |
|---|---|---|---|
|
1 |
FOCUS |
7-pin 1B LEMO® |
Lens motor drive support; Focus control knob on T.H.C. |
|
2 |
IRIS |
7-pin 1B LEMO |
Lens motor drive support; Iris control knob on T.H.C. |
|
3 |
ZOOM |
7-pin 1B LEMO |
Lens motor drive support; Zoom control slider on T.H.C. |
|
4 |
CAN |
4-pin 0B LEMO |
CAN communication and power for the T.H.C. |
|
5 |
EXP |
14-pin 1B LEMO |
Start/Stop, Tally, RS-232, GPIOs |
|
6 |
232/422 |
10-pin 1B LEMO |
RS-232/422 communication |
|
7 |
PWR |
2-pin 1B LEMO |
12 to 18 VDC power |
W.M.D. Lens Motor Connector
The W.M.D. Lens Motor connector is an industry-standard 7-pin 1B LEMO connector.
Figure: W.M.D. 7-Pin 1B Lens Drive Connector
|
7-PIN 1B LEMO Lens Drive Connector |
|
|---|---|
|
Pin |
Signal |
|
1 |
Motor (+) |
|
2 |
Motor (–) |
|
3 |
Encoder A |
|
4 |
+5 VDC |
|
5 |
GND |
|
6 |
Encoder B |
|
7 |
Motor ID |
W.M.D. CAN Connector
The W.M.D. CAN connector is a 4-pin 0B LEMO connector that provides power and CAN communications between the W.M.D. and T.H.C., or other auxiliary devices.
Figure: W.M.D. 4-Pin 0B CAN Connector
|
4-PIN 0B LEMO CAN Connector |
|
|---|---|
|
Pin |
Signal |
|
1 |
GND |
|
2 |
CANL |
|
3 |
CANH |
|
4 |
VCC |
W.M.D. Start/Stop/Tally Expansion Connector
The W.M.D. Start/Stop/Tally expansion connector is a 14-pin 1B connector that provides expansion (EXP) support for the RED 3-Axis Lens Control System. The W.M.D. Start/Stop/Tally expansion connector has a maximum power out of 500mA.
Figure: W.M.D. 14-Pin Start/Stop and Tally Connector
|
14-PIN 1B LEMO START/STOP EXPANSION Connector |
|
|---|---|
|
Pin |
Signal |
|
1 |
GND |
|
2 |
232_Rx |
|
3 |
+12 VDC |
|
4 |
232_TX |
|
5 |
Momentary Start/Stop |
|
6 |
DSMC Tally |
|
7 |
DSMC Start/Stop Contact |
|
8 |
AUX GPIO 1_3.3 |
|
9 |
+3.3 VDC |
|
10 |
Cable ID |
|
11 |
N/A |
|
12 |
AUX GPIO 2_3.3 |
|
13 |
N/A |
|
14 |
N/A |
W.M.D. AUX Connector
The W.M.D. AUX connector is a 10-pin 1B connector used for RS-232 communication and power with other third-party systems and accessories.
Figure: W.M.D. 10-pin 0B RS232 Connector
|
6-PIN 0B LEMO AUX Connector |
|
|---|---|
|
Pin |
Signal |
|
1 |
+12 VDC |
|
2 |
232 Tx |
|
3 |
232 Rx |
|
4 |
422 Tx+ |
|
5 |
422 Rx+ |
|
6 |
422 Rx- |
|
7 |
422 Tx- |
|
8 |
232 Select Jumper |
|
9 |
232 Select Jumper |
|
10 |
GND |
W.M.D. Power Connector
The W.M.D. PWR connector is a 2-pin 1B LEMO power connector to supply power to the W.M.D. from your camera or other power modules.
Figure: W.M.D. 2-Pin 1B Power Connector
|
2-PIN 1B LEMO POWER Connector |
|
|---|---|
|
Pin |
Signal |
|
1 |
GND |
|
2 |
+12 VDC |
