W.M.D. Power Cable 2-Pin 1B to 2-Pin 0B
The W.M.D. Power Cable 2-Pin 1B to 2-Pin 0B (18") connects your RED W.M.D. to a standard 12 V 2-pin 0B LEMO accessory port (found on the QUICKPLATE Module and REDVOLT XL Module) to power the RED 3-Axis Lens Control System. RED offers the following cable:
-
790-0410: W.M.D. Power Cable 2-Pin 1B to 2-Pin 0B 18"

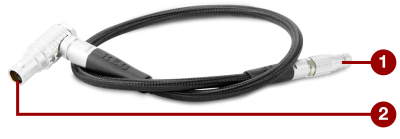

Figure: W.M.D. Power Cable 2-Pin 1B to 2-Pin 0B (18")
|
# |
Connector |
Part Number |
|---|---|---|
|
1 |
J1 |
LEMO FGG.0B.302.CLAD56Z |
|
2 |
J2 |
LEMO FHG.1B.302.CLAD56Z |
W.M.D. Power Cable 2-Pin 1B to 2-pin 0B Pinout
Figure: Front Face View of J1 (Left)
|
W.M.D. Power Cable 2-pin 1b to 2-pin 0b |
|||
|---|---|---|---|
|
J1 |
J2 |
Signal |
Wire Color |
|
J1-1 |
J2-1 |
GND |
Black |
|
J1-2 |
J2-2 |
+12 VDC |
Red |
|
J1-SHELL |
J2-SHELL |
GND (SHIELD) |
Braid Shield |
