W.M.D. Power Cable 2-Pin 1B to 4-Pin XLR
The RED W.M.D. Power Cable 2-Pin 1B to 4-Pin XLR (8') connects your RED W.M.D. to a 12v 4-pin XLR standard accessory port to power the RED 3-AXIS Lens Control System. RED offers the following cable:
-
790-0411: W.M.D. Power Cable 2-Pin 1B to 4-Pin XLR 8'

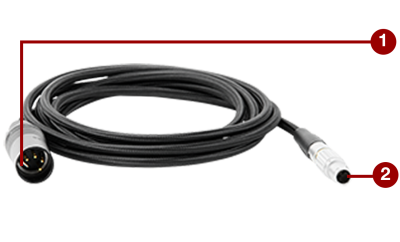

Figure: W.M.D. Power Cable 2-Pin 1B to 4-Pin XLR (8')
|
# |
Connector |
Part Number |
|---|---|---|
|
1 |
J1 |
Neutrik® XLR NC4MXX-B |
|
2 |
J2 |
LEMO FGG.1B.302.CLAD62Z |
W.M.D. Power Cable 2-Pin 1B to 4-pin XLR Pinout

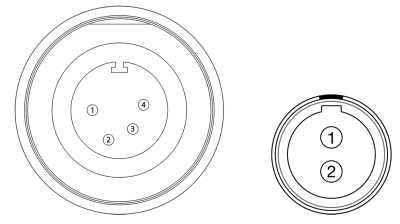

Figure: Front Face View of J1 (Left) and J2 (Right)
|
W.M.D. Power Cable 2-pin 1b to 4-pin XLR |
|||
|---|---|---|---|
|
J1 |
J2 |
Signal |
Wire Color |
|
J1-1 |
J2-1 |
GND |
Black |
|
J1-2 |
- |
- |
- |
|
J1-3 |
- |
- |
- |
|
J1-4 |
J2-2 |
+12 VDC |
Red |
|
J1-SHELL |
J2-SHELL |
GND (SHIELD) |
Braid Shield |
