RED STATION REDMAG 2.5"
You can use the RED STATION REDMAG 2.5" to offload content from your REDMAG 1.8" SSD to a third-party external 2.5" SSD or spinning hard drive. RED does not provide any 2.5" media or drives.

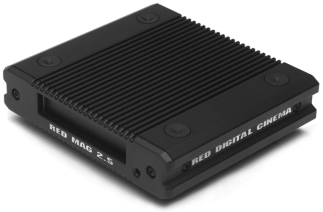

Figure: RED STATION REDMAG 2.5"
RED STATION REDMAG 2.5" Included Components
The items listed in the table below ship with the RED STATION REDMAG 2.5".
|
ITEM |
PART NUMBER |
|---|---|
|
RED STATION REDMAG 2.5" |
750-0007 |
|
RED STATION Rubber Feet Set |
790-0293 |
|
RED STATION eSATA Cable (24") |
790-0250 |
|
RED STATION FW800 Cable (2") |
790-0253 |
|
RED STATION FW800 Cable (24") |
790-0251 |
|
RED STATION USB-to-MINI USB Cable (24") |
790-0315 |
|
RED STATION AC Power Adaptor |
790-0292 |
|
RED STATION USB to DC Power Cable (24") |
790-0316 |
|
RED STATION DC Power Coupler (2") |
790-0249 |
Compatible 2.5" Hard Drives
The following 2.5" hard drives are compatible with RED STATION REDMAG 2.5":
- Seagate 2.5" Desktop Hard Drive 5400 RPM, 320GB (Model number: ST9320325AS)
- Seagate 2.5" Desktop Hard Drive 5400 RPM, 500GB (Model number: ST9500325AS)
- Seagate 2.5" Desktop Hard Drive 7200 RPM, 250GB (Model number ST9250410AS)
- Seagate 2.5" Desktop Hard Drive 7200 RPM, 320GB (Model number ST9320423AS)
- Western Digital 2.5" Desktop Hard Drive 7200 RPM, 320GB (Black) (Model number: WD3200BJKT)
RED STATION REDMAG 2.5" Connectors and Controls
Figure: RED STATION REDMAG 2.5" (Rear)
|
# |
Connector |
Description |
Compatible Parts |
Part Numbers |
|---|---|---|---|---|
|
1 |
POWER |
Both connectors accept power from any RED STATION that is already connected to a RED STATION Base; can also output power to another RED STATION in a stand-alone configuration or when powered by a RED STATION Base |
RED STATION DC Power Coupler (2") |
790-0249 |
|
2 |
eSATA connector1 |
Connect to computer via an eSATA connection |
RED STATION eSATA Cable (24") |
790-0250 |
|
3
|
FireWire 800
|
Use either connector to connect to a computer or additional RED STATIONs via a FireWire 800 connection
|
RED STATION FW800 Cable (2") |
790-0253 |
|
RED STATION FW800 Cable (24") |
790-0251 |
|||
|
4 |
MINI USB slot |
Connect to computer via a Mini USB connection |
USB-to-MINI USB Cable (24") |
790-0315 |
|
5 |
On/Off Switch |
Turn on/off |
N/A |
N/A |
|
6
|
+5 VDC IN
|
+5 VDC power in
|
RED STATION AC Power Adaptor |
790-0292 |
|
RED STATION USB to DC Power Cable (24") |
790-0316 |
|||
|
N/A |
2.5" Hard Drive slot (front) |
Slot for inserting a third-party 2.5" SSD or spinning hard drive |
N/A |
N/A |
- Only Silicon Image or HighPoint SATA cards connect to the RED STATION REDMAG 2.5" through eSATA.
RED STATION REDMAG 2.5" LEDs
Figure: RED STATION REDMAG 2.5" (Front)
|
LED |
COLOR/FLASHING |
Description |
|---|---|---|
|
Power Indicator LED |
Off |
Powered off and turned off |
|
Red |
Powered on and turned on |
|
|
Red flashing (fast) |
Accessing media |
