RED STATION Base
The RED STATION Base provides power to up to three (3) RED STATIONs (excluding the RED STATION REDMAG 1.8" (Mini) and RED STATION RED MINI-MAG – ESATA/USB 3.0), eliminating the need to have AC power adaptors going to each module. This product is a great solution for those who are managing multiple RED STATIONs and want to reduce cable clutter.

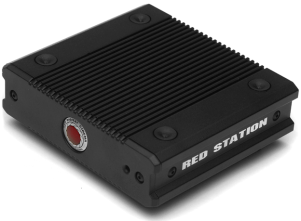

Figure: RED STATION Base
RED STATION Base Included Components
The items listed in the table below ship with the RED STATION Base.
|
ITEM |
PART Number |
|---|---|
|
RED STATION Base |
750-0004 |
|
RED STATION Base AC POWER ADAPTOR |
790-0308 |
|
RED STATION DC Power Coupler (2") |
790-0249 |
Figure: RED STATION Base (Rear)
|
# |
Connector |
Description |
Compatible Parts |
Part Numbers |
|---|---|---|---|---|
|
1 |
POWER |
Allows RED STATION Base to power up to three (3) RED STATIONs |
RED STATION DC Power Coupler (2") |
790-0249 |
|
2 |
On/Off Switch |
Turn on/off |
N/A |
N/A |
|
3 |
+5 VDC IN |
+5 VDC power in |
RED STATION AC Power Adaptor |
790-0292 |
|
RED STATION USB to DC Power Cable (24") |
790-0316 |
RED STATION Base LEDs
Figure: RED STATION Base (Front)
|
LED |
Color/Flashing |
Description |
|---|---|---|
|
Power Indicator LED |
Off |
Powered off and turned off |
|
Red |
Powered on and turned on |
