Interchangeable OLPFs
The camera system includes intelligent, interchangeable optical low pass filters (OLPFs). The camera automatically recognizes the OLPF type installed, eliminating the need to configure OLPF settings in the camera menu.
RED offers the following modular DSMC2 S35 interchangeable OLPFs:
|
Item |
Part Number |
Required Firmware |
|---|---|---|
|
DSMC2 S35 Standard OLPF |
790-0513 |
v6.1.18 or later |
|
DSMC2 S35 Skin Tone-Highlight OLPF |
790-0511 |
v6.1.18 or later |
|
DSMC2 S35 Low Light Optimized OLPF |
790-0512 |
v6.1.6 or later |
|
DSMC2 S35 H2O OLPF |
790-0547 |
v6.1.44 or later; or v6.2.9 or later |
DSMC2 S35 OLPF Revisions and Compatibility
DSMC2 S35 OPLFs shipped through October 2016 have curved glare stops at the top and bottom of the OLPF. DSMC2 S35 OLPFs shipped after October 2016 have straight glare stops. The images below show the difference between the original (curved glare stops) and modified (straight glare stops) DSMC2 S35 OLPFs:

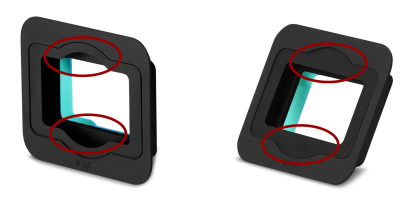

Figure: Original DSMC2 S35 OLPF, Curved Glare Stops (Left); and Modified DSMC2 S35 OLPF, Straight Glare Stops (Right)
The modified DSMC2 S35 OLPFs (straight glare stops) are incompatible with the following lenses due to their protruding rear elements:
- Leica Super-Elmar-M 18mm f/3.8 ASPH
- Leica Super-Elmar-M 21mm f/3.4 ASPH
Other lenses that have very long protruding rear elements and require the Leica M Mount may not be fully compatible with the modified DSMC2 S35 OLPFs (straight glare stops).
If your setup requires the lenses listed above, use the earlier revision of the DSMC2 S35 OLPF (the revision with the curved glare stops). If you do not have the earlier revision of the DSMC2 S35 OLPF and need it, submit a Support ticket at https://support.red.com.
