Media Modules
This section describes the media modules. RED® offers the following media modules:
|
Item |
Part Number |
|---|---|
|
DSMC 1.8" SSD Side Module |
720-0013 |
|
DSMC 1.8" SSD Side Module (DRAGON)1 |
N/A |
|
Carbon Fiber DSMC 1.8" SSD Side Module (DRAGON)2 |
N/A |
|
RED MINI-MAG® Side SSD Module |
720-0021 |
|
Carbon Fiber RED MINI-MAG Side SSD Module2 |
N/A |
|
Rear SSD Module |
720-0009 |
- The DSMC 1.8" SSD Side Module (DRAGON) is only available with the purchase of a RED DRAGON sensor-based BRAIN.
- Carbon fiber side SSD modules are only available with the purchase of a carbon fiber BRAIN.
Side SSD Modules

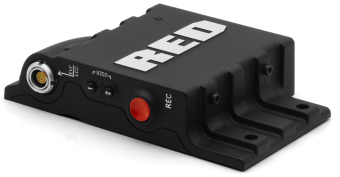

Figure: DSMC Side SSD Module
Media modules attach to the camera to enable the use of RED MINI-MAG or REDMAG™ 1.8" SSD media. Both side SSD module systems have the same 16-Pin 1B LCD/EVF connector, user keys, and REC button.
For more information, see the DSMC Media Operation Guide.
Side SSD Module Connector
|
Connector |
Connector Type |
Connector Function |
|---|---|---|
|
EVF/LCD |
N/A |
Power and external monitoring support for an electronic viewfinder or display |
Side SSD Module Controls
|
Control |
Description |
|---|---|
|
User Key 1 |
Programmable key User Key 1 + 2 Press: Eject Media |
|
REC Button |
Programmable key Full Press: Record Toggle Half Press: AF Start |
|
User Key 2 |
Programmable key User Key 1 + 2 Press: Eject Media |
Side SSD LED
|
LED |
Color/Flashing |
Description |
|---|---|---|
|
Record Status LED1 |
Off |
Not recording, or media not mounted |
|
Red |
Recording |
- For more information on how to enable/disable this LED, go to Indicator.
Rear SSD Module
Figure: Rear SSD Module
The Rear SSD Module secures to the back of a Module Adaptor or a +1 Adaptor Module to serve as a rear location for recording to a REDMAG 1.8" SSD.
For more information, see the DSMC Media Operation Guide.
