Adaptor Modules
Figure: Module Adaptor (left) and +1 Adaptor Module (Right)
Adaptor modules enable you to connect other modules to the camera for expandable functionality. The +1 Adaptor Module provides an auxiliary power port for accessories and an additional EVF/LCD port for additional monitor viewing and output.
Both adaptor modules also offer additional 1/4-20 mounting points on top for configuration support. Most modules require a Module Adaptor or +1 Adaptor Module to attach to your camera.
For more information, go to Configure Your Camera.
WARNING: The Module Adaptor is NOT compatible with the +1 Adaptor Module.
WARNING: The +1 Adaptor Module IS NOT compatible with the Module Adaptor.
WARNING: DO NOT use the EVF/LCD port if a Pro I/O Module is connected to the camera.
RED offers the following adaptor modules:
|
Item |
Part Number |
|---|---|
|
Module Adaptor |
720-0008 |
|
+1 Adaptor Module1 |
720-0018 |
- The +1 Adaptor Module requires that your camera is on firmware v4.08 or later.
+1 Adaptor Module Connections

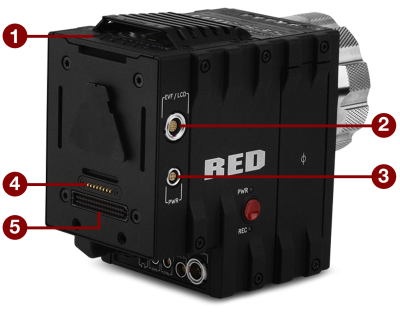

Figure: +1 Adaptor Module
|
# |
Connector |
Connector Type |
Connector Function |
|---|---|---|---|
|
1 |
Mounting |
1/4-20 mounting |
Supports bolt-on auxiliary equipment |
|
2 |
EVF/LCD |
N/A |
Custom digital video and power interconnection between the camera and RED EVF or RED LCD; Pinout not published |
|
3 |
Auxiliary power out (PWR) |
4-Pin 0B |
Supplies unregulated (+) 11.5 to 17 V battery pass-through; Connect to 2-Pin 0B accessories with the RED 4-Pin to 2-Pin Adaptor Cable; Max sustained current is 2 A |
|
4 |
REDMOTE® dock connector |
8-point POGO connector |
Power and support for the REDMOTE |
|
5 |
Dock connector |
SEARAY connector |
Supports power and communication with modules |
WARNING: DO NOT use the EVF/LCD port on the +1 Adaptor Module if a Pro I/O Module is connected to the camera. The Pro I/O Module overrides the EVF/LCD and AUX power out ports when connected.
NOTE: The default auxiliary power output setting is on. To toggle the power setting on/off, go to Menu > Power > Power Out > +1 PWR. The last power output setting is saved until a firmware upgrade or a factory reset.
+1 Adaptor Module Accessories
For more information, as well as a full list of EVF/LCD cables and other accessory cables, go to the RED Store.
|
Accessory |
Connector Type |
Connector Function |
Part Number |
|---|---|---|---|
|
4-Pin To 2-Pin Adaptor Cable1 |
4-pin 0B to 2-Pin 0B |
Power support for 2-pin based accessories |
790-0334 |
|
Micro HDMI-to-HDMI Adaptor2 |
Micro HDMI to Standard HDMI |
HDMI video connection from the camera to support auxiliary EVF/LCD attachment |
N/A |
- The 4-Pin to 2-Pin Adaptor Cable converts 4-pin power into a 2-Pin 0B female connection, enabling support for 2-pin based accessories from the +1 Adaptor Module or Pro I/O Module.
- The Micro HDMI-to-HDMI Adaptor is field-replaceable.
