Other Modules

This section describes other modules. RED offers the following miscellaneous modules:

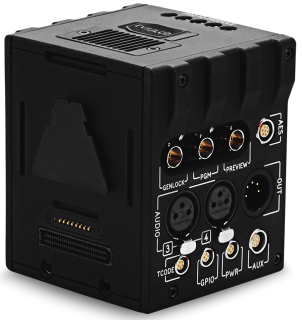

Pro I/O Module

The Pro I/O Module brings together the essential input and output (I/O) connections in one (1) module, providing a central hub for professional audio and video components. The Pro I/O Module offers the following features:

• Centralized ports that make it easy to manage connections and cables.
• LCD/EVF port that allows you to connect an additional RED LCD or EVF.
• Customizable triggers that interface with third-party GPIO and RS232 control devices using Pro I/O cables.
• Mounting points for an additional module or a REDMOTE.
• Internal cooling system that maintains an appropriate operating temperature.

For more information, see the Pro I/O Module Operation Guide.

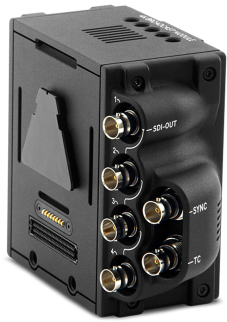

REDCAST Module

The REDCAST^® Module allows for live 4K streaming, enabling you to capture and view action in real-time. Compatible with both EPIC DRAGON and SCARLET DRAGON cameras, the REDCAST Module uses four (4) 3G-SDI output connections to broadcast 4K video at up to 60 frames per second. Five (5) 1/4-20 mounting holes are built into the top of the module, allowing for various mechanical peripherals to be attached.

For more information, see the REDCAST Module Operation Guide.
