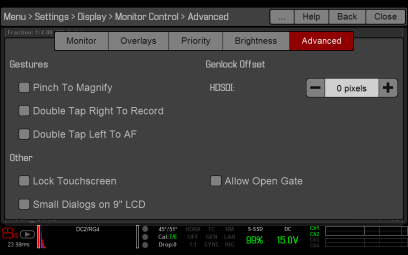

Advanced

Provides access to additional monitor settings.

Gestures

• Pinch to Magnify: Move two (2) fingers apart or together to toggle Magnify. For more information, go to Display Modes: Magnify.
• Double-Tap Right 25% to Record: Double-tap the right 25% of the video area on the LCD to toggle record.
• Double-Tap Left 25% to Start AF: Double-tap the left 25% of the video area on the LCD to start autofocus when compatible lenses are used.

Other

• Lock Touch Screen: Touchscreen control is locked. To unlock, tap the screen and follow the on-screen instructions.
• Small Dialogs on 9" LCD: The dialogs on the RED Touch 9.0" LCD are smaller than the default dialogs.

Genlock Offset

Offset the video of the HDSDI out or REDCAST Module to align it with the genlock signal:

• Negative offset: Advances the video, so the video reaches the switcher earlier than it would otherwise.
• Positive offset: Delays the video, so the video reaches the switcher later than it would otherwise.

Allow Open Gate

Open Gate allows the camera to preview images at a refresh rate that is twice the project time base. For example, if the project time base is 23.98 FPS or 24.00 FPS, enabling Open Gate causes the LCD or EVF to have a refresh rate of 48 Hz (50 Hz).

You cannot use Open Gate when:

• Varispeed is enabled.
• Speed Ramp mode is enabled.
• Genlock is enabled.
• The shutter angle is 180° or greater.

NOTE: When you disable Open Gate mode, the image on the EVF may be disrupted for up to three (3) seconds.
