Modes

Use the Modes menu to determine how the following settings display:

• Camera
• Lens

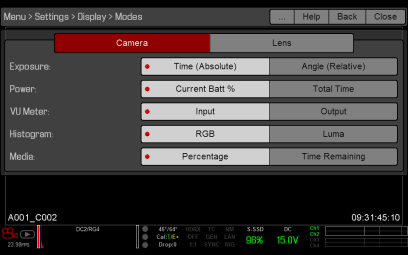

Camera

Exposure

• Time (Absolute): Displays the exposure time in seconds (1/xx sec). When you change the frame rate in this mode, the shutter time stays the same, but the shutter angle changes. (Default)
• Angle (Relative): Displays the exposure as an angle (1° to 360°). When you change the frame rate in this mode, the shutter angle stays the same, but the exposure time changes.

Power

• Current Batt %: Displays the remaining percentage of active battery. (Default)
• Total Time: Displays the total run-time left of battery power, taking into account all available batteries.

VU Meter

• Input: Displays levels of audio inputs (pre-mixer). (Default)
• Output: Displays levels of audio outputs (post-mixer).

Histogram

NOTE: The Histogram setting is disabled on Monochrome cameras.

• RGB: Displays red, green, and blue channels on histogram. (Default)
• Luma: Displays luma channel on histogram.

Media

• Percentage: Displays media space remaining as a percentage. (Default)
• Time Remaining: Displays media space remaining as time in hours and minutes (HHH:MM).

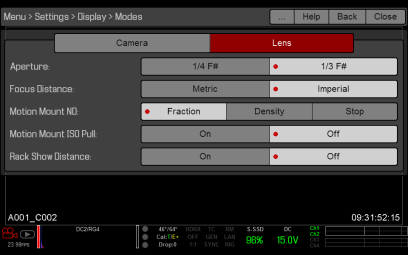

Lens

Aperture

• 1/4 F#: Aperture increments in 1/4 stops.
• 1/3 F#: Aperture increments in 1/3 stops. (Default)

Focus Distance

• Metric: Displays lens focus distances in meters.
• Imperial: Displays lens focus distances in feet and inches. (Default)

Motion Mount ND and Motion Mount ISO Pull

Only applicable when using a DSMC RED MOTION MOUNT^® S35 lens mount. For more information, see the RED MOTION MOUNT Operation Guide.

Rack Show Distance

• On: Displays the focus distance of each rack point on the Live Action Area when rack focus is enabled. For more information, go to Set Up Rack Focus.
• Off: Does not display the focus distance of rack points when rack focus is enabled. (Default)
