Self-Test

The Self-Test menu includes: Enable/Disable Sensor Test Pattern and Touchscreen.

Enable/Disable Sensor Test Pattern

The Sensor Test Pattern is used during manufacturing and stress testing. For more information, go to Perform a Stress Test. The Sensor Test Pattern is a white screen with vertical lines.

To enable/disable the sensor test pattern, go to Menu > Settings > Maintenance > Self-Test > Enable/Disable Sensor Test Pattern.

Touchscreen

To perform a touchscreen self-test, follow the instructions below:

1. Go to Menu > Settings > Maintenance > Self-Test.
2. Select Touchscreen.

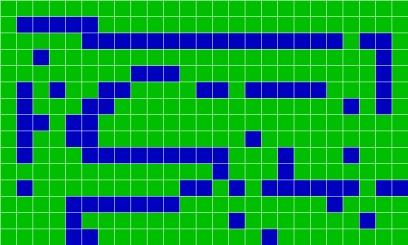

   A grid of green squares displays on the touchscreen.

3. Touch each box with your finger.

   Each green box turns blue.

4. To exit the self-test, perform one (1) of the following actions:
   • Touch all of the boxes, so that they are all blue.
   • Press and hold the touchscreen.
   • Press the Enter or Menu button on the DSMC Side Handle or REDMOTE.



   Figure: Self-Test Menu
