Playback Controls
General Playback Controls

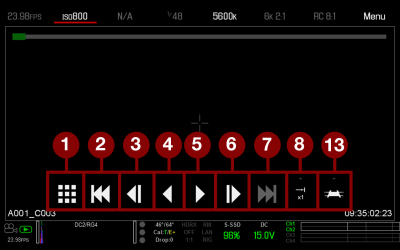

Figure: Playback Controls
|
# |
Control |
Description |
|---|---|---|
|
1 |
Clips |
View clips as thumbnails1 |
|
2 |
Load Previous Clip |
Loads the previous clip in the playlist. |
|
3 |
Frame-by-Frame Reverse |
Moves through the clip frame-by-frame in reverse. |
|
4 |
Reverse Play/Pause toggle |
Plays clip in reverse, and toggles between play and pause. |
|
5 |
Play/Pause toggle |
Toggles between play and pause. |
|
6 |
Frame-by-Frame Forward |
Moves through the clip frame-by-frame. |
|
7 |
Load Next Clip |
Loads the next clip in the playlist. |
|
8 |
Play Options |
Displays the following subset of options: Play Once, Loop, Loop Playlist, and Playback Speed. |
|
13 |
Playback Speed |
Option to select x1, x2, x4, x8, or x16 playback speed. |
- Thumbnail view is only available on an EPIC DRAGON or SCARLET DRAGON. On MYSTERIUM-X cameras, a logo appears instead of a thumbnail.
Play Options

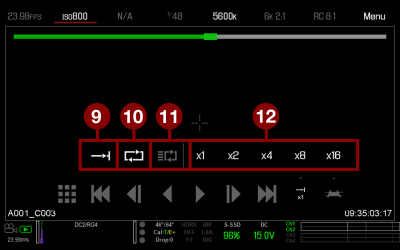

Figure: Play Options
|
# |
Control |
Description |
|---|---|---|
|
9 |
Marker Options |
Displays the following subset of options: In Point, Remove In/Out Point, Out Point, Previous Marker, and Next Marker. |
|
10 |
Play Once |
Plays clip to the end, and does not repeat the clip. |
|
11 |
Loop |
Plays the clip on a loop. |
|
12 |
Loop Playlist |
Loops all clips in the playlist. To create a playlist, go to Menu > Playback > Menu > Media > Playlist, and move clips to the Play List field. |
Marker Options

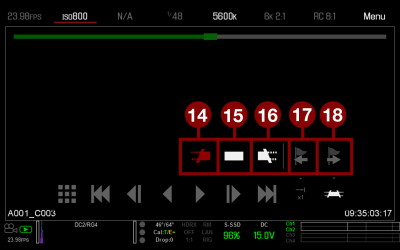

Figure: Marker Options
|
# |
Control |
Description |
|---|---|---|
|
14 |
In Point |
Sets a red In Point marker in the Playback Status Bar. Use an In Point marker in conjunction with an Out Point marker to play only a certain portion of a clip. The In/Out Point markers help when the clip is long and you want to focus on a particular segment. |
|
15 |
Remove In/Out Point |
Removes the In/Out Point markers and skips to the end of the clip. |
|
16 |
Out Point |
Sets a red Out Point marker in the Playback Status Bar. Use an Out Point marker in conjunction with an In Point marker to play only a certain portion of a clip. The In/Out Point markers help when the clip is long and you want to focus on a particular segment. |
|
17 |
Previous Marker |
Goes to the previous marked frame, which displays as a red line in the Playback Status Bar. Disabled when there are no marked frames. |
|
18 |
Next Marker |
Goes to the next marked frame, which displays as a red line in the Playback Status Bar. Disabled when there are no marked frames. |
