EPIC BRAIN
NOTE: Dimensions are shown in mm.
The optical axis height of all EPIC/SCARLET cameras is 95.90 mm.

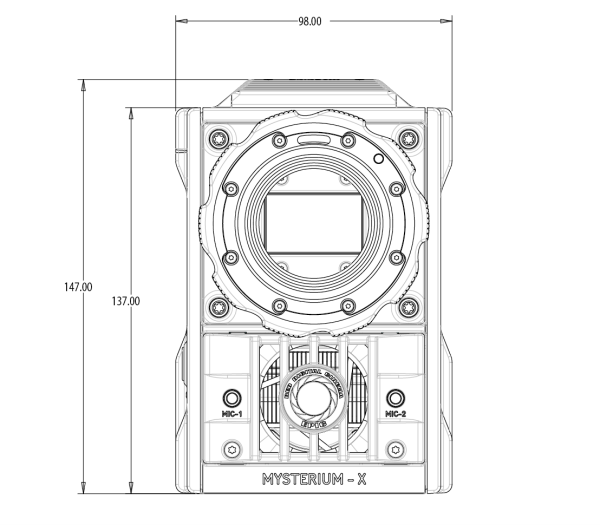

Front View
Figure: EPIC Front View

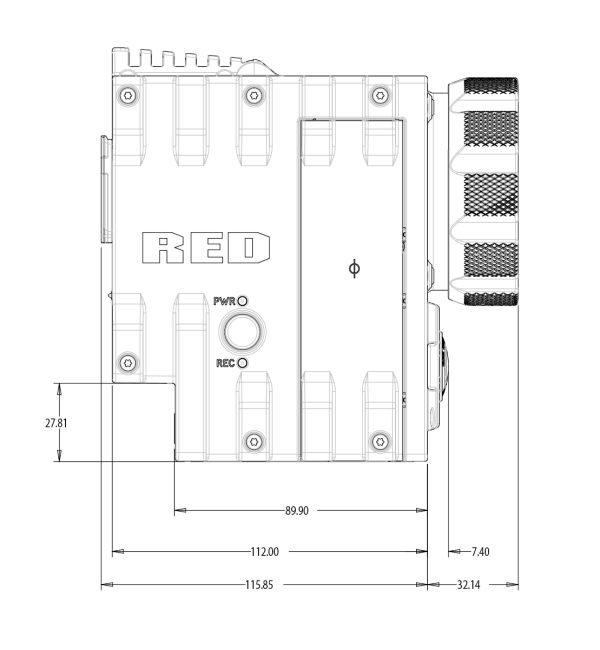

Side View (Left)
Figure: EPIC Side View (Left)

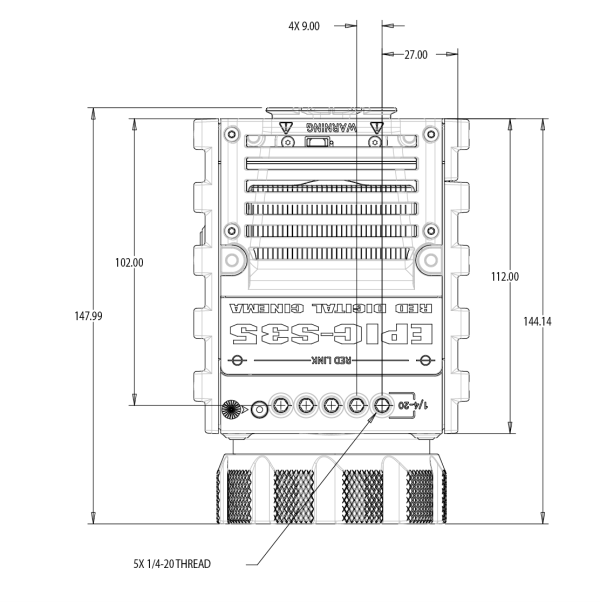

Top View
Figure: EPIC Top View
Bottom View
Figure: EPIC Bottom View

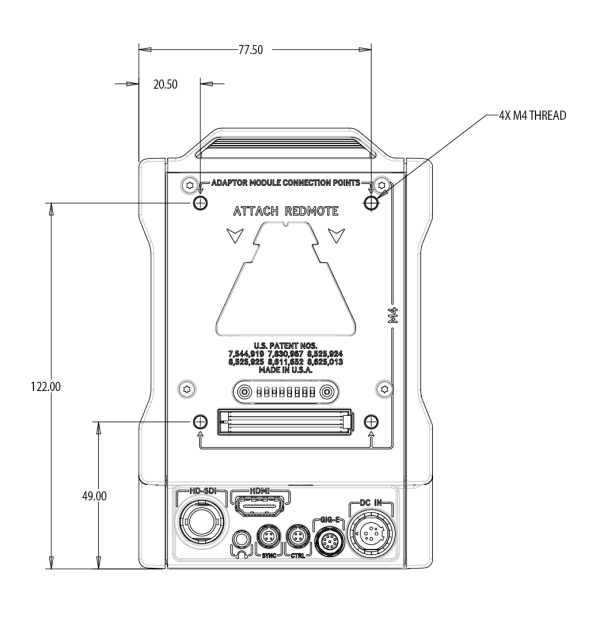

Back View
Figure: EPIC Back View
