WEAPON with MONSTRO 8K VV sensor BRAIN
NOTE: Dimensions are shown in mm.
The optical axis height of the camera is 95.90 mm.
Front View
Figure: WEAPON with MONSTRO 8K VV sensor Front View
Back View
Figure: WEAPON with MONSTRO 8K VV sensor Back View
Side View (Right)
Figure: WEAPON with MONSTRO 8K VV sensor Side View (Right)
Side View (Left)
Figure: WEAPON with MONSTRO 8K VV sensor Side View (Left)

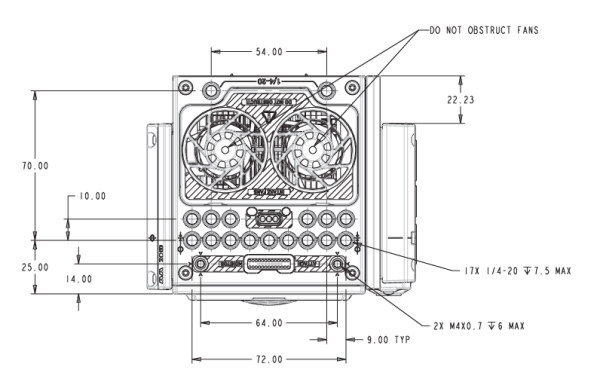

Top View
Figure: WEAPON with MONSTRO 8K VV sensor Top View
Bottom View
Figure: WEAPON with MONSTRO 8K VV sensor Bottom View
