Sensor (Flip/Mirror Scan Direction)

The Flip/Mirror Scan Direction feature rotates the image 180°, both on the monitor and in the recorded R3D file. Normally, the sensor scans the image from the top to the bottom. When the Flip/Mirror Scan Direction feature is enabled, the sensor scan direction reverses, and the sensor scans the image from the bottom to the top.

The Flip/Mirror Scan Direction feature is intended for multi-camera arrays when all sensors are synchronized, and at least one (1) camera is mounted upside-down. Using this feature is helpful for matching the line scan direction for the cameras in the array.

To enable the Flip/Mirror Scan Direction feature, follow the instructions below:

  1. Go to Menu > Settings > Project > Sensor.
  2. Select the Flip/Mirror Scan Direction check box.

    The camera rotates the image 180° on the monitor and in the recorded R3D file.

    Flip/Mirror Scan Direction

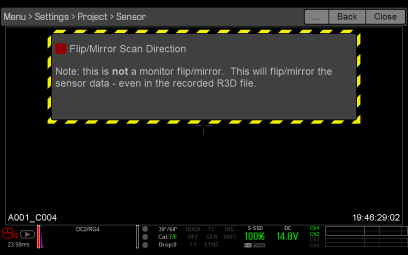

    Figure: Flip/Mirror Scan Direction
