DSMC2 Base Expander

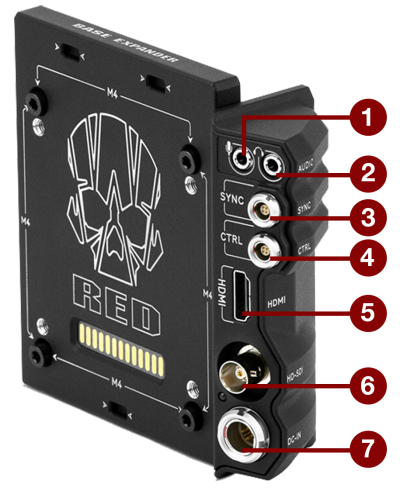

Figure: DSMC2 Base Expander
|
# |
Connector |
Connector Type |
Details |
|
1 |
Stereo Microphone |
3.5mm stereo |
|
|
2 |
Headphone Jack |
3.5mm stereo |
|
|
3 |
SYNC |
4-pin 00B LEMO |
|
|
4 |
CTRL |
4-pin 00B LEMO |
|
|
5 |
HDMI® |
HDMI 1.2, Type A |
|
|
6 |
HD-SDI |
BNC |
|
|
7 |
DC IN |
6-pin 1B LEMO |
