Auto Boot on Power

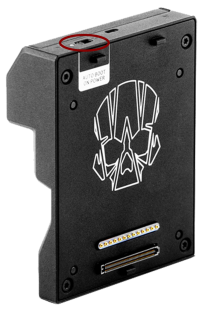

The DSMC2 Jetpack Expander, DSMC2 Jetpack-SDI Expander, DSMC2 REDVOLT Expander, DSMC2 V-Lock I/O Expander, and DSMC2 Production Module feature a selector switch that enables the camera to automatically boot when power is provided via the DC IN connector on the device. The Auto Boot on Power switch (identified by a line or a white star) is located on top of the device.

When Auto Boot on Power is enabled, the camera disables all power sources that are not the DC IN connector on the expander or module, including batteries and the DC IN connectors on any other modules.

NOTE: The battery plate on the DSMC2 Production Module is always enabled, regardless of the Auto Boot on Power switch position.

Enable Auto Boot on Power

1. Toggle the Auto Boot on Power switch to On (identified by a line or a white star).
2. Connect a power source to the DC IN connector.

   The camera turns on automatically.

3. Use one of the following methods to turn off the camera:
   • Go to Menu > Power and select Shutdown.
   • Press and hold PWR/REC until the Shutting Down... notification shows on the display.

NOTE: Simply disconnecting the power source may result in data loss.

Disable Auto Boot on Power

1. Toggle the Auto Boot on Power switch to Off (identified by a circle or a black star).

   The camera will not turn on automatically.
