Lens

To access the Lens menu, go to Menu > Settings > Setup > Lens.

Lens Tab

The options displayed on the Lens tab change based on the attached lens mount.

PL Mount

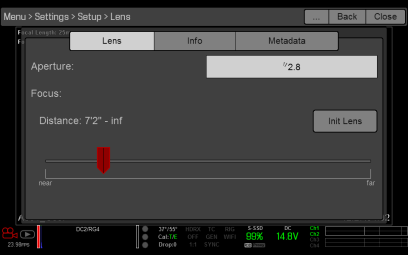

Canon and Nikon Lens Settings

The options below display when a DSMC Nikon Mount or DSMC Canon Mount is installed with a supported lens.

• Aperture: Enter the aperture value. The range and default depend on the lens.
• Focus: Use the slider to change the focal distance. Manually changing the focal distance on the lens itself does not cause the slider to move. This setting is only available if the lens is in AF mode.
• Init Lens: Initializes the lens.

Lens Info Tab

The Info tab displays the attached lens mount and lens information.

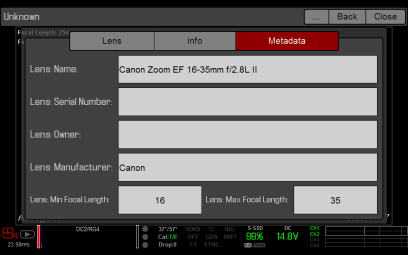

Lens Metadata Tab

If a supported lens is attached, the camera autopopulates some Lens Metadata fields. You can also manually edit the Lens Metadata fields to describe the attached lens. The information is stored in the clip metadata. The Lens Metadata fields are:

• Lens Name
• Lens Serial Number
• Lens Owner
• Lens Manufacturer
• Lens Min Focal Length
• Lens Max Focal Length

Motion Mount Tab

The Motion Mount menu is only accessible when a DSMC RED MOTION MOUNT S35 lens mount is installed. For more information, see the RED MOTION MOUNT Operation Guide.
