Keys

Map keys to often-used actions to easily control the camera. For a full list of the default key mappings, go to Default Key Functions.

Key Mapping

To map or remap a user key:

  1. Press the user key that you want to map.
  2. Select an action from the Press (or CCW) drop-down menu that you want to map to the user key.
  3. To un-map a key, select -Key Disabled- from the drop-down menu.
  4. If you want, map a Release or (CW) action to the key.

    A Release action occurs when a pressed key is released.

Options
  • Lock Side Module keys
  • Show key action notifications: A notification displays on the bottom of the display when you perform an action mapped to a key.

Key Options

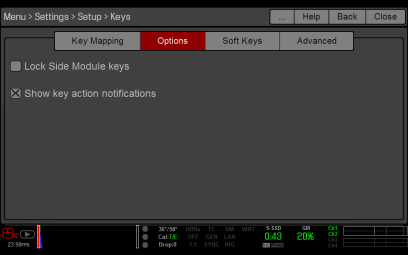

Figure: Key Options

Soft Keys

The following sets of soft keys are available on the touchscreen:

  • A, B, C, D: Left side of the touchscreen
  • 1, 2, 3, 4: Right side of the touchscreen

To map or remap a soft key, select an action from the drop-down menu next to the key you want to map.

  • Enable Soft Keys on touchscreen: Tap the left or right side of the touchscreen to show the soft keys.
  • Show key actions as labels: When the soft keys display, the number/letter of the key and the key action display.
Advanced

Use the Advanced tab to map any key, even if the key is not currently accessible.

WARNING: It is possible to remap the navigation keys using this tab. However, if you do not have a touchscreen attached, it is possible to lock out control. Be careful when remapping navigation keys.
