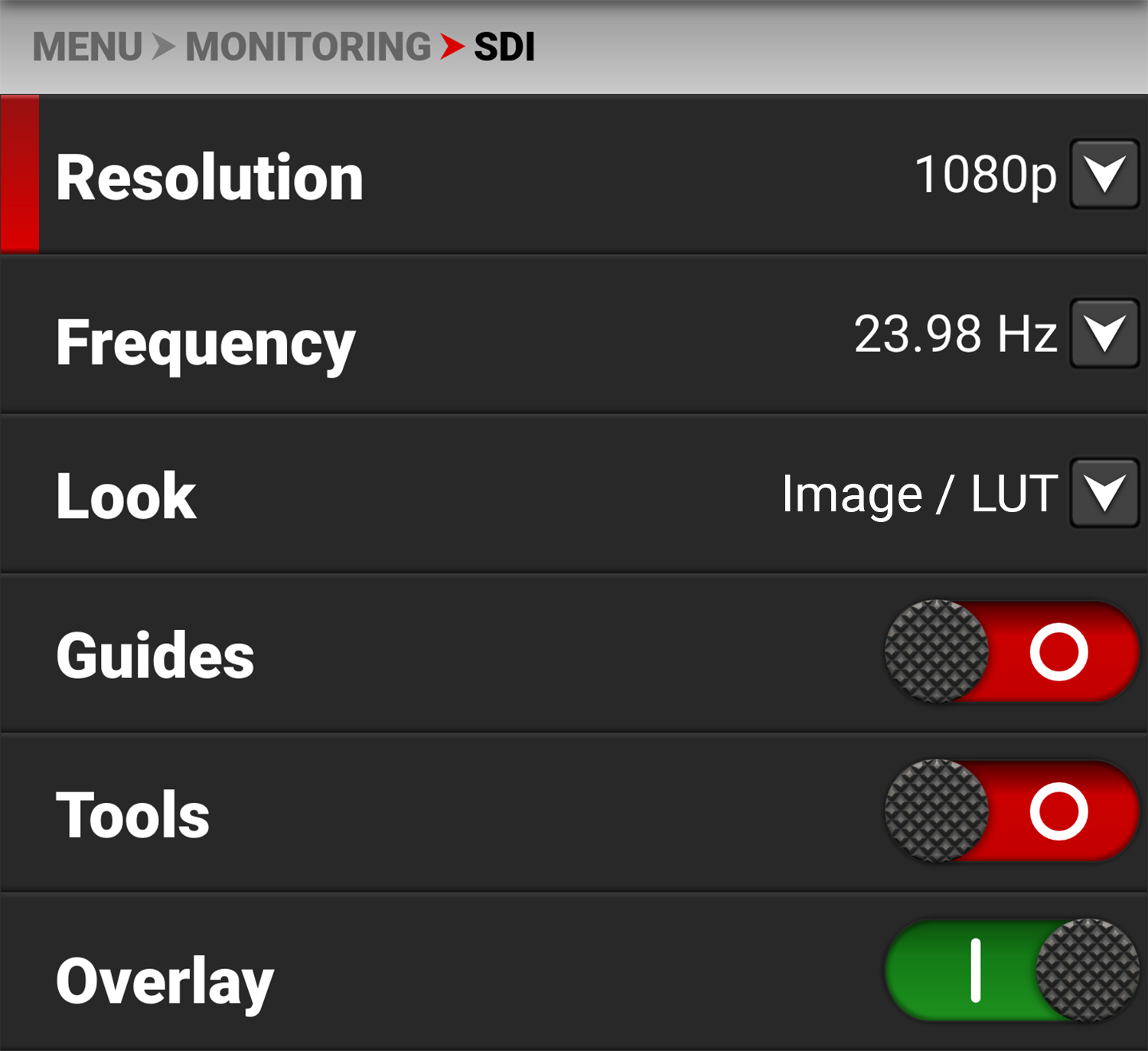

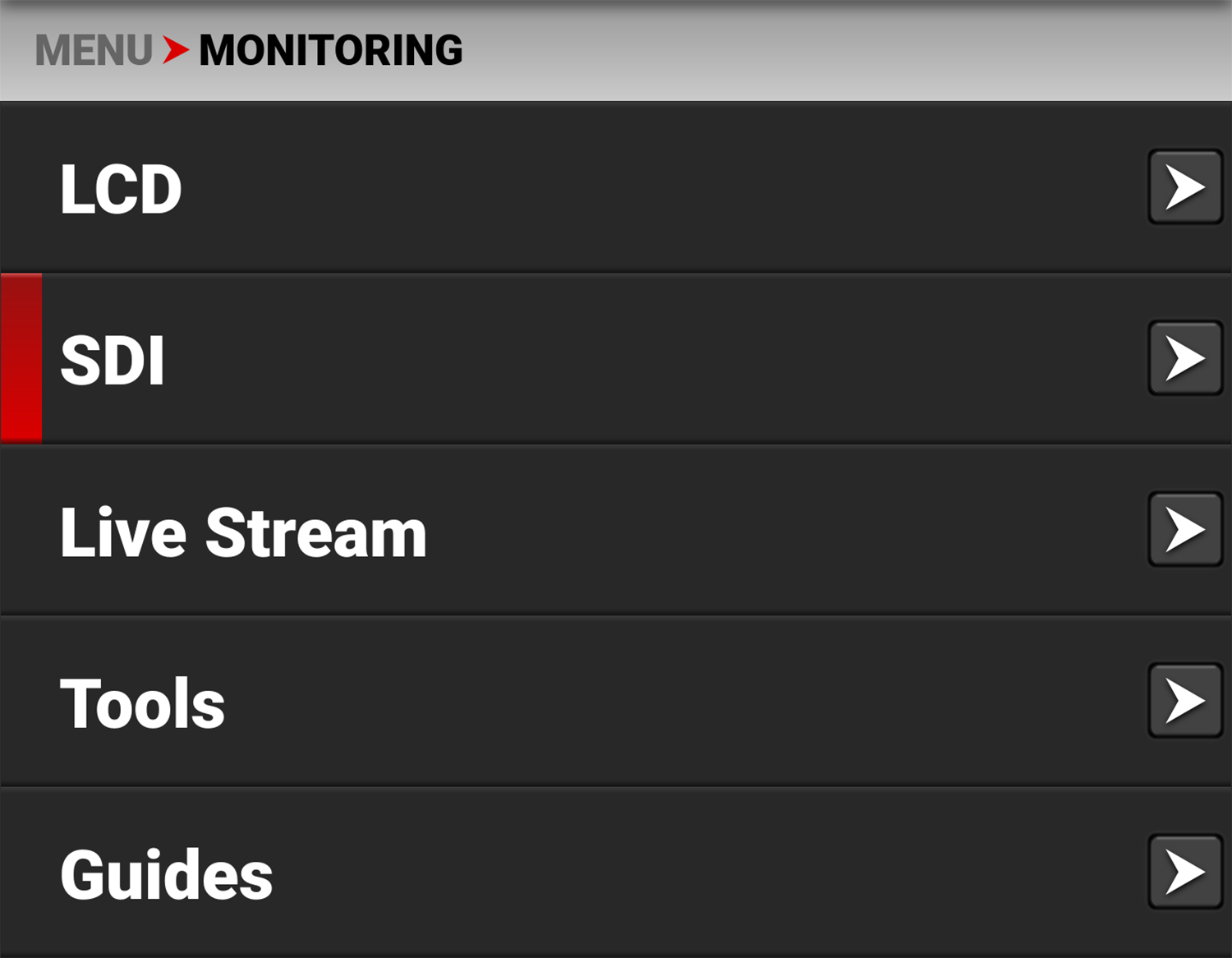

SDI
Use SDI to configure the SDI port settings.
NOTE: Always use 12G-SDI BNC cables when connecting the camera’s SDI port, regardless of the resolution.
WARNING: Always connect the DC power cable (or batteries) before connecting the BNC SDI cable. Always remove the BNC SDI cable before removing the DC power cable (or batteries).
The SDI port settings you can configure include:
|
Items |
Details |
|---|---|
|
Select the SDI port resolution |
|
|
Select the SDI port frequency |
|
|
Set the look of the playback between RWG / Log3G10 or Image / LUT |
|
|
Enable or disable the monitor guides |
|
|
Enable or disable the monitor tools |
|
|
Enable or disable the monitor overlay |
|
|
Select the overlay type |

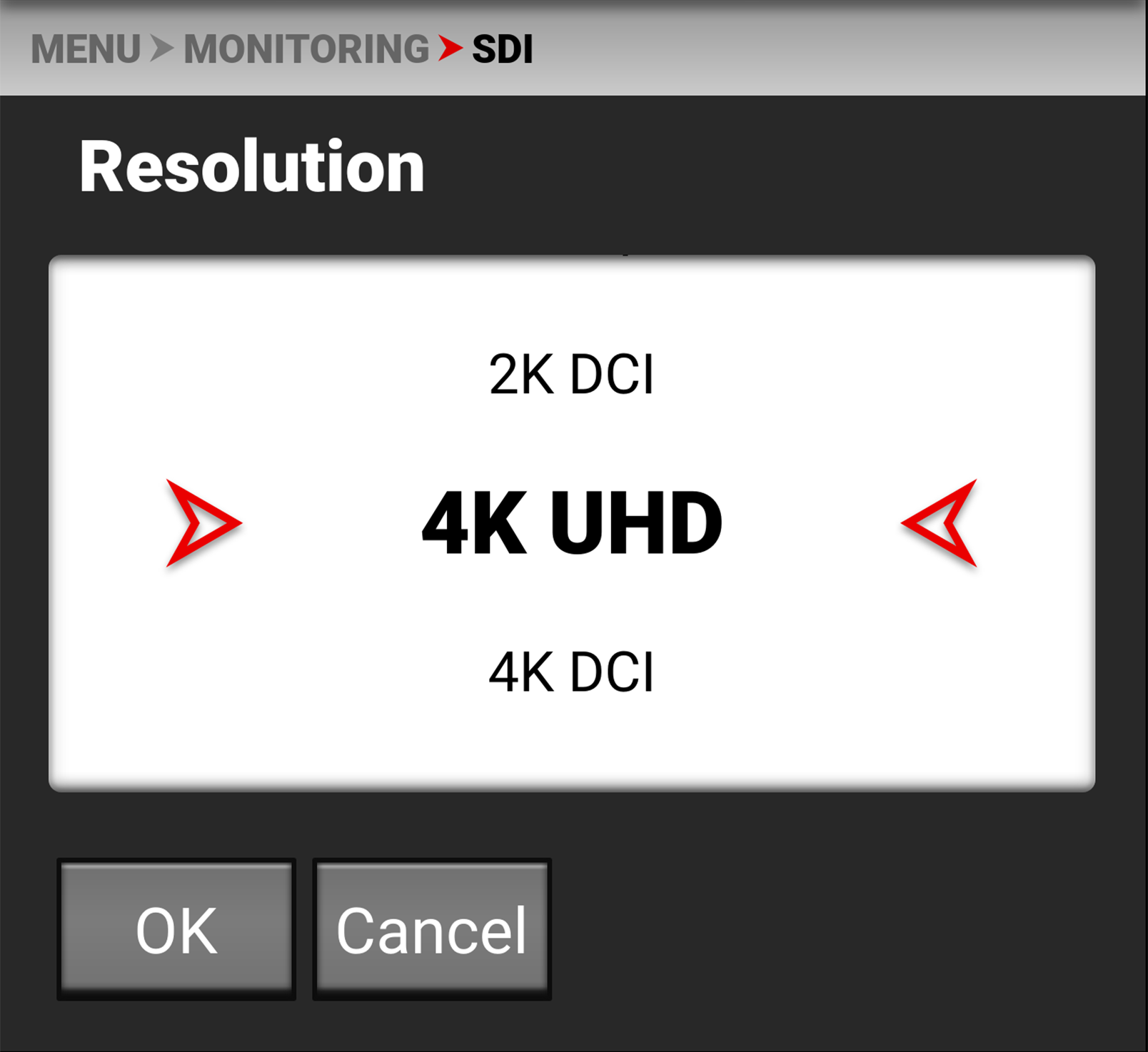

Resolution
|
|
Use resolution to select one of the following SDI port resolution settings: • 1080p • 2K DCI • 4K UHD • 4K DCI The resolution selected here controls the SDI output resolution of the preview page. |
Scaling Preview
When monitoring in 1080p or 4K UHD while capturing in a 17:9 format, the entire 17:9 image will be down-scaled to the 16:9 aspect ratio of 1080p or 4K UHD. Small black bars will only appear on the top and bottom of the frame in the monitor path and not on the recorded image.

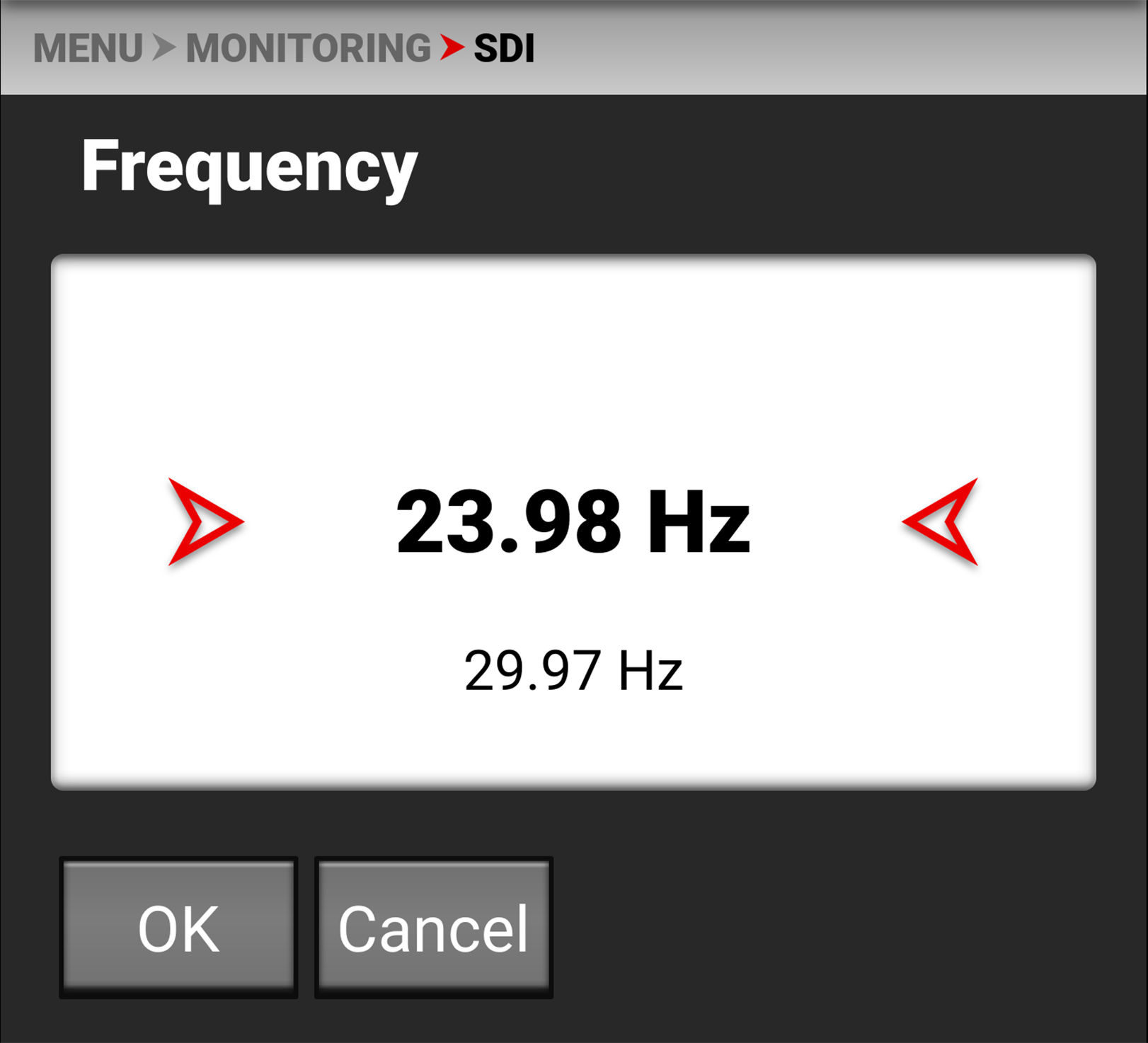

Frequency
|
|
Use Frequency to select one of the following SDI port frequency settings: • 23.98 Hz • 29.97 Hz • 59.94 Hz |

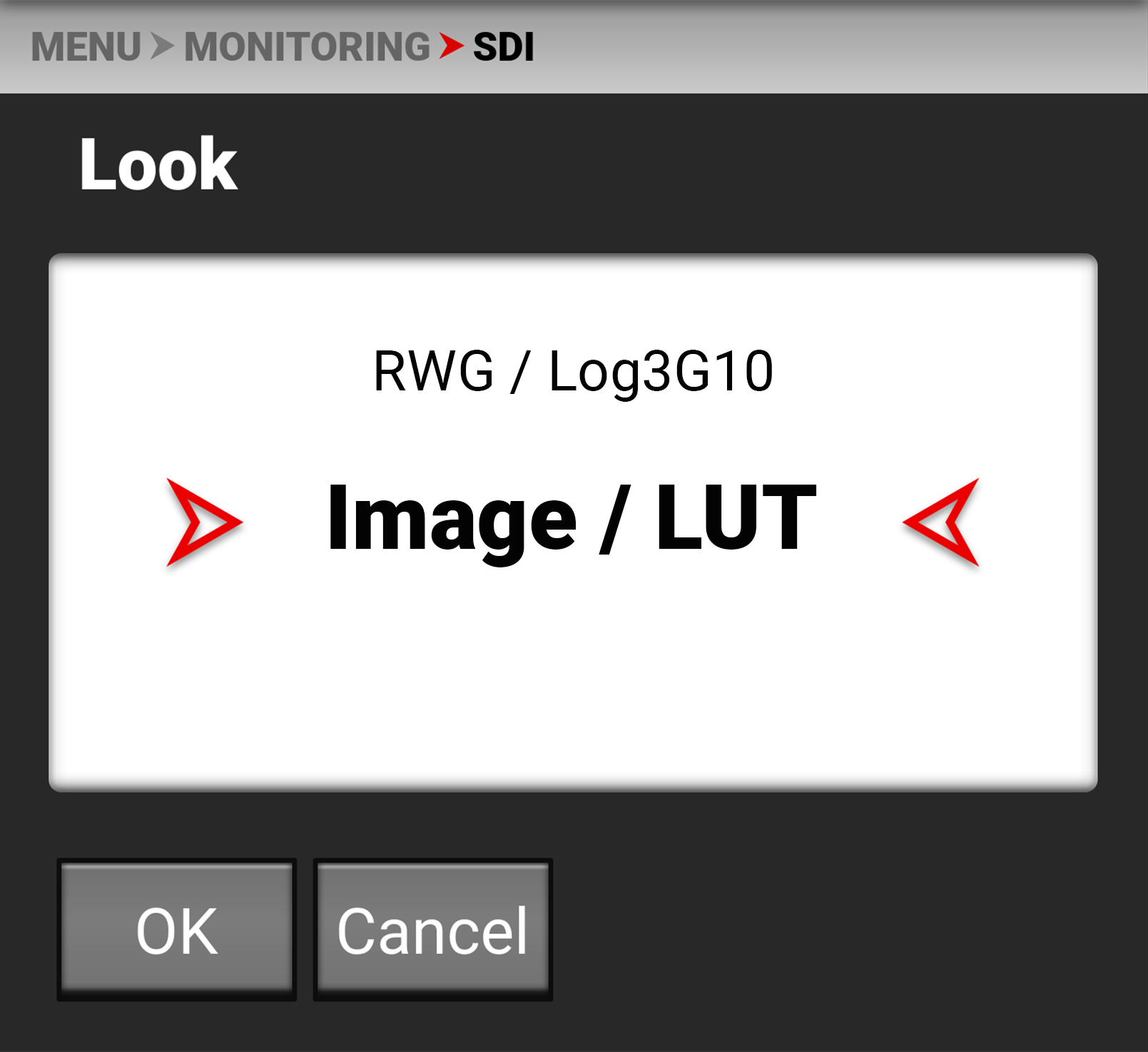

Look
|
|
You can select the look of the image preview signal sent to the SDI port. The selections include: • REDWideGamutRGB / Log3G10 • Image / LUT (default) |

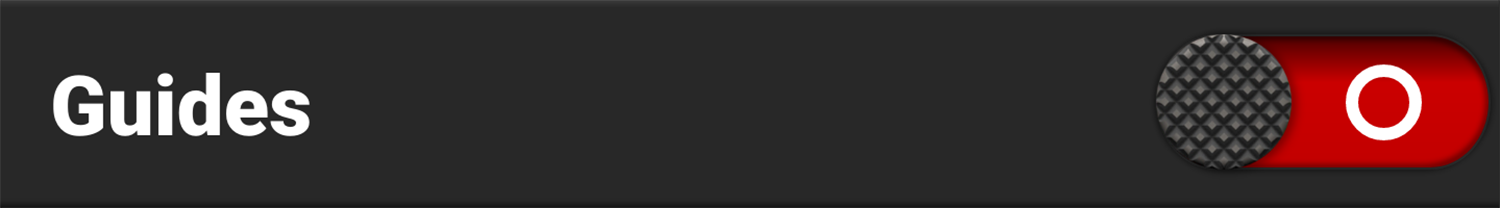

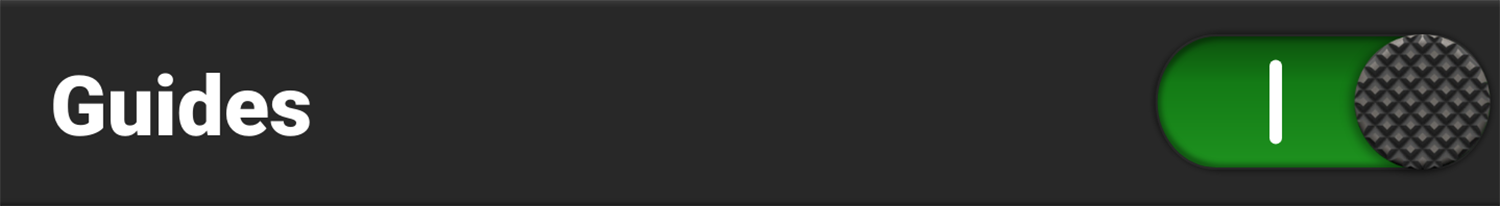

Guides
Use Guides to enable or disable the viewing of guides. Tap the switch to toggle between enabled and disabled.

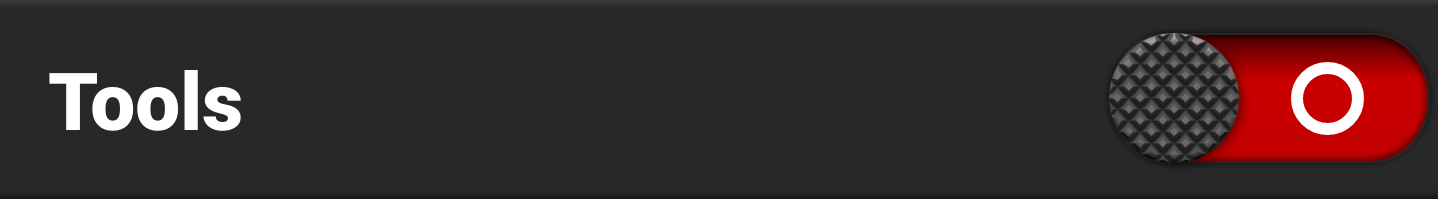

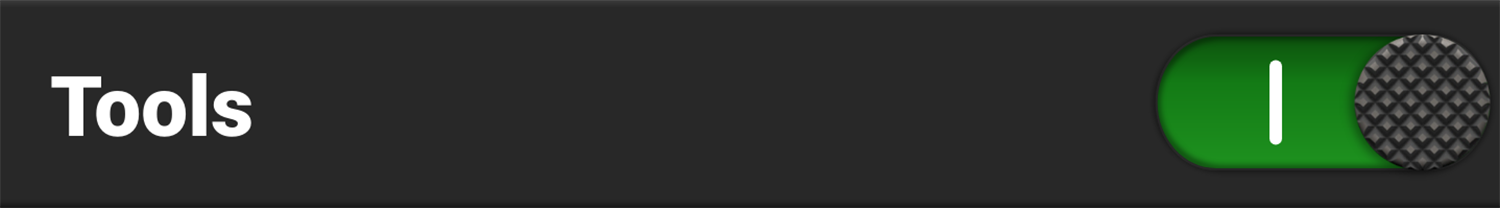

Tools
Use Tools to enable or disable the viewing of tools. Tap the switch to toggle between enabled and disabled.

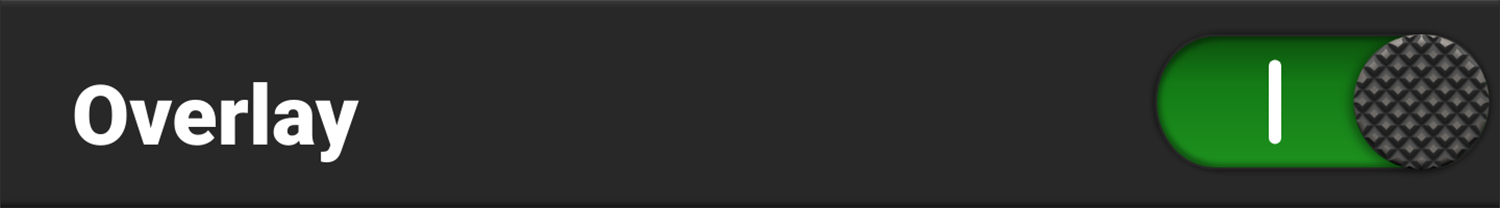

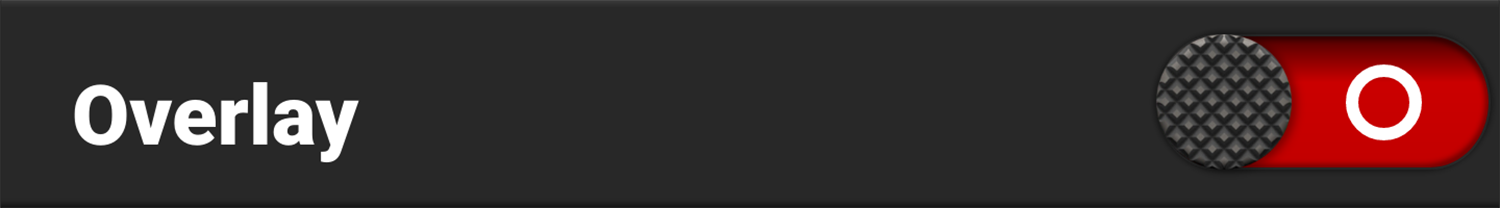

Overlay
Use Overlay to enable or disable the viewing of the overlay. Tap the switch to toggle between enabled and disabled.

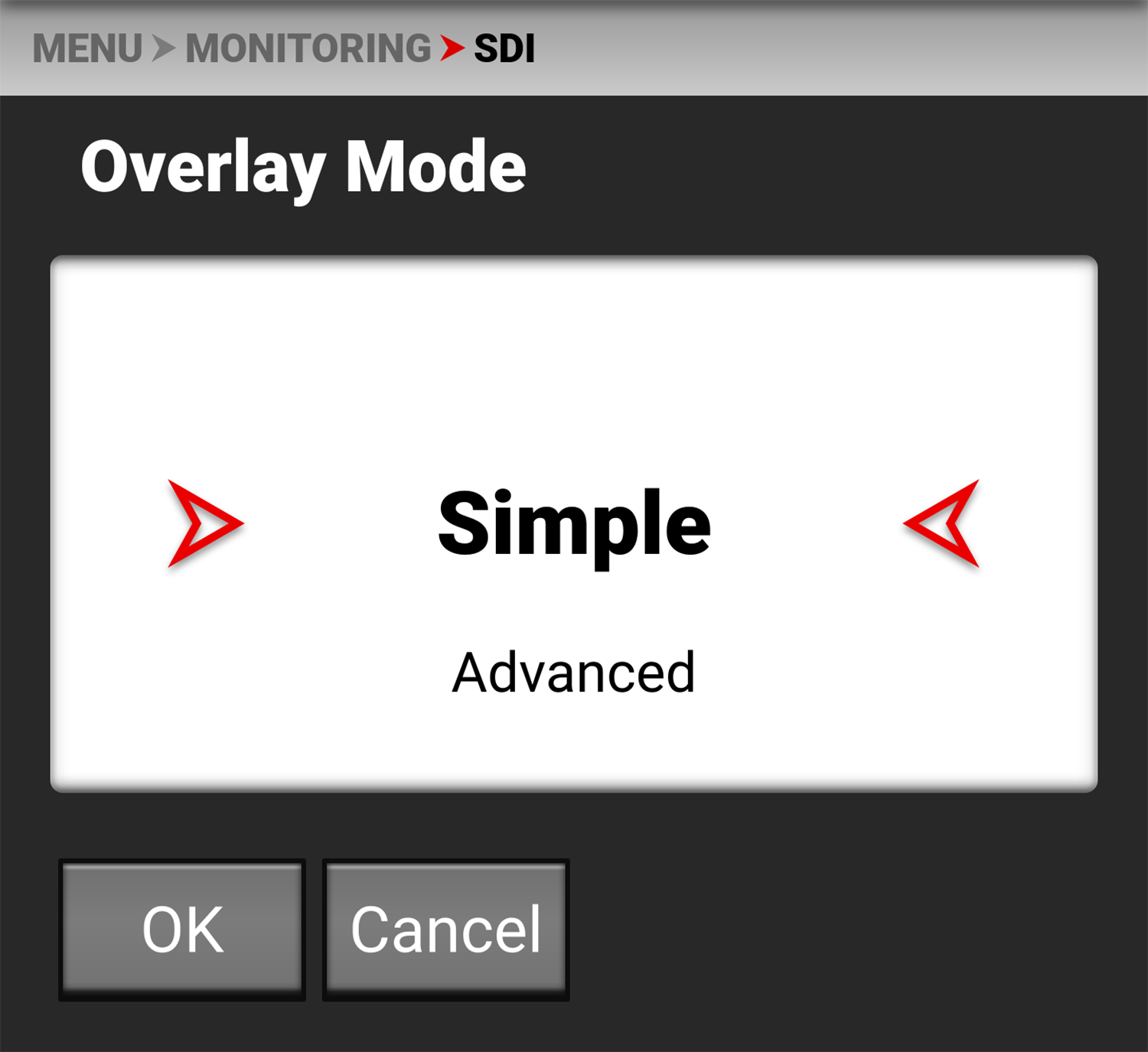

Overlay Mode
|
|
Use Overlay Mode to select one of the following SDI port overlay modes: • Simple - minimal image information is displayed • Advanced - many image and camera details are displayed |

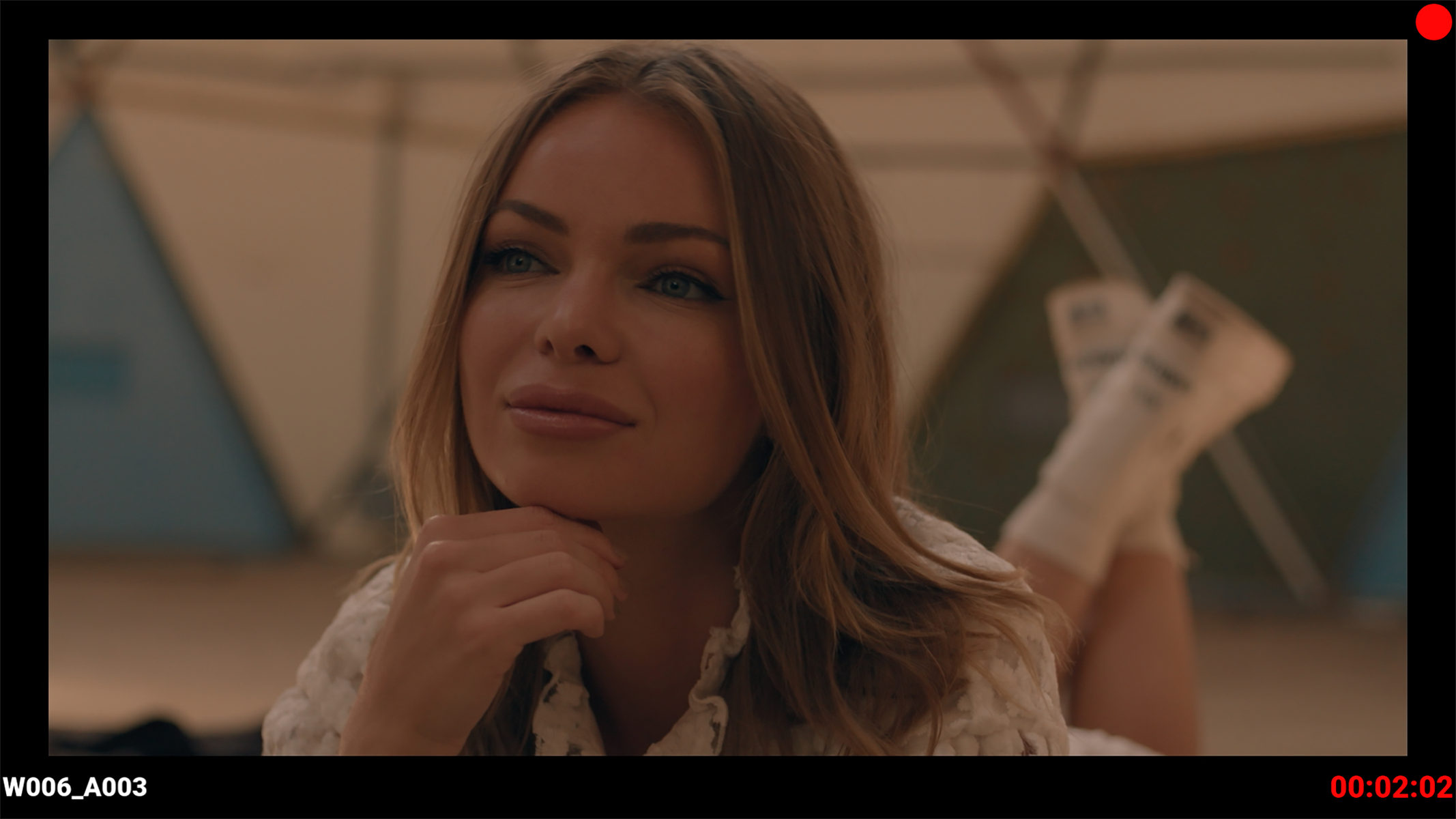

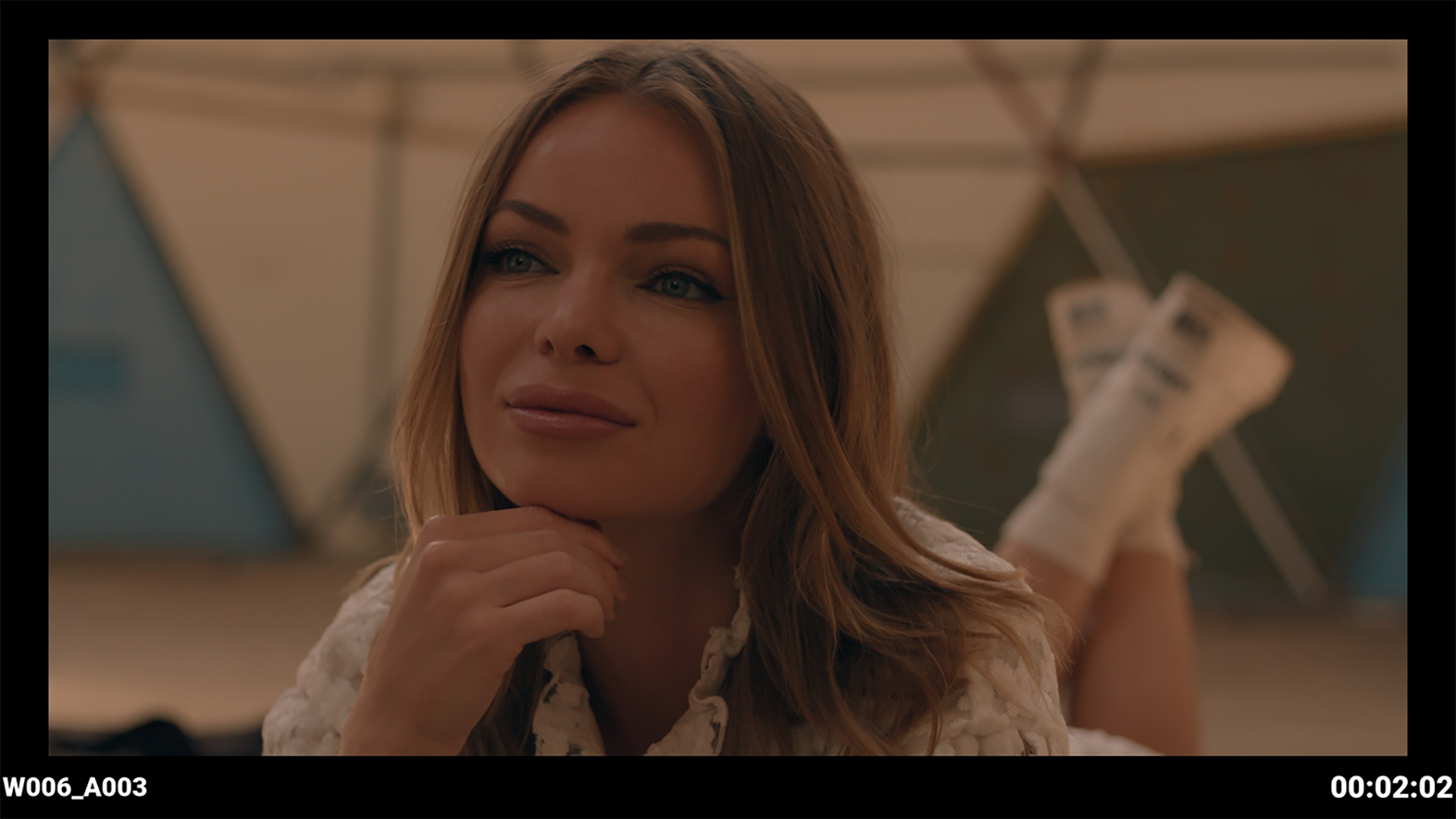

Simple Mode
Simple mode displays the clip name and the elapsed time. When the camera is recording, the elapsed time turns red, and a red dot appears in the top right corner.

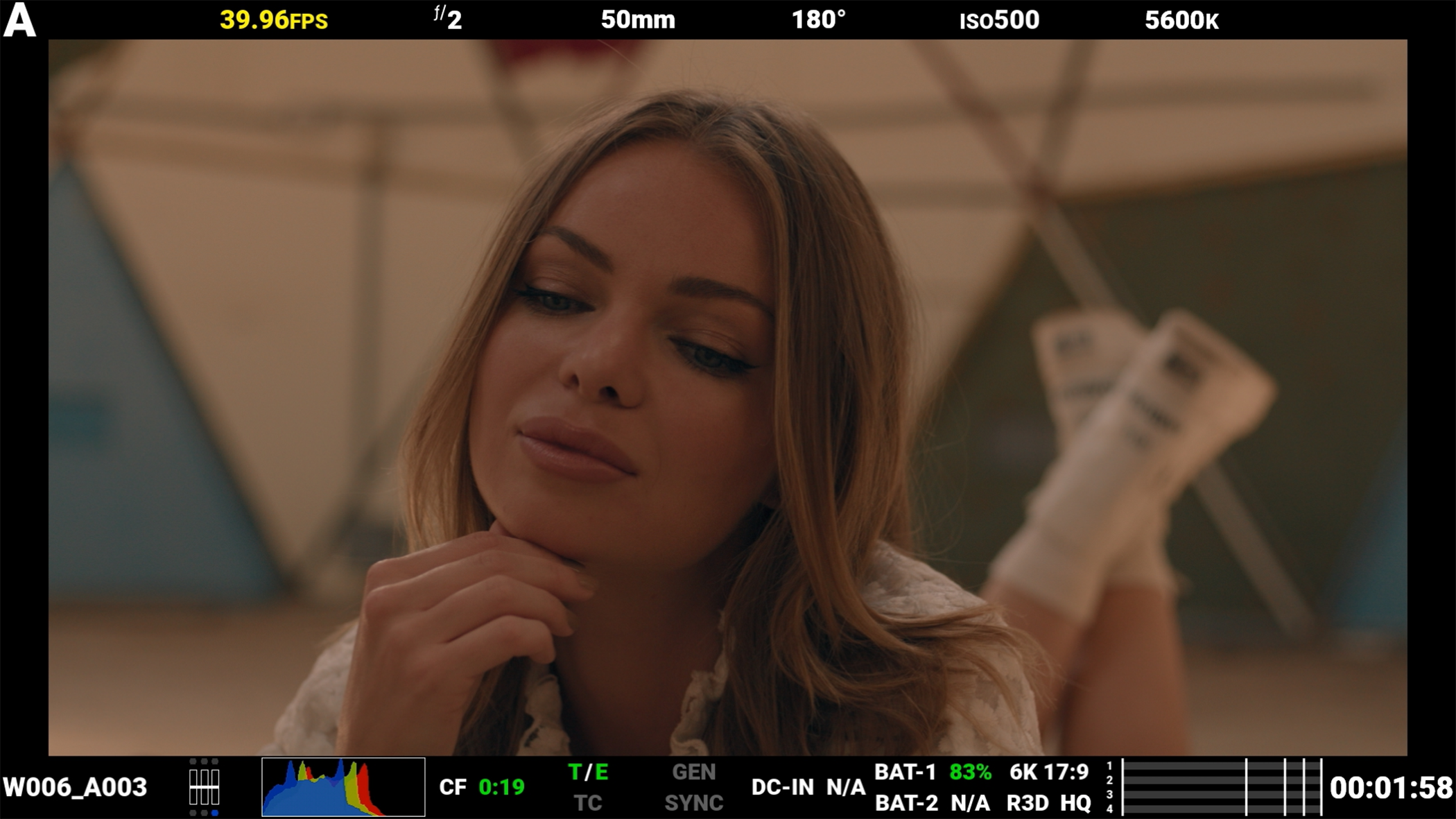

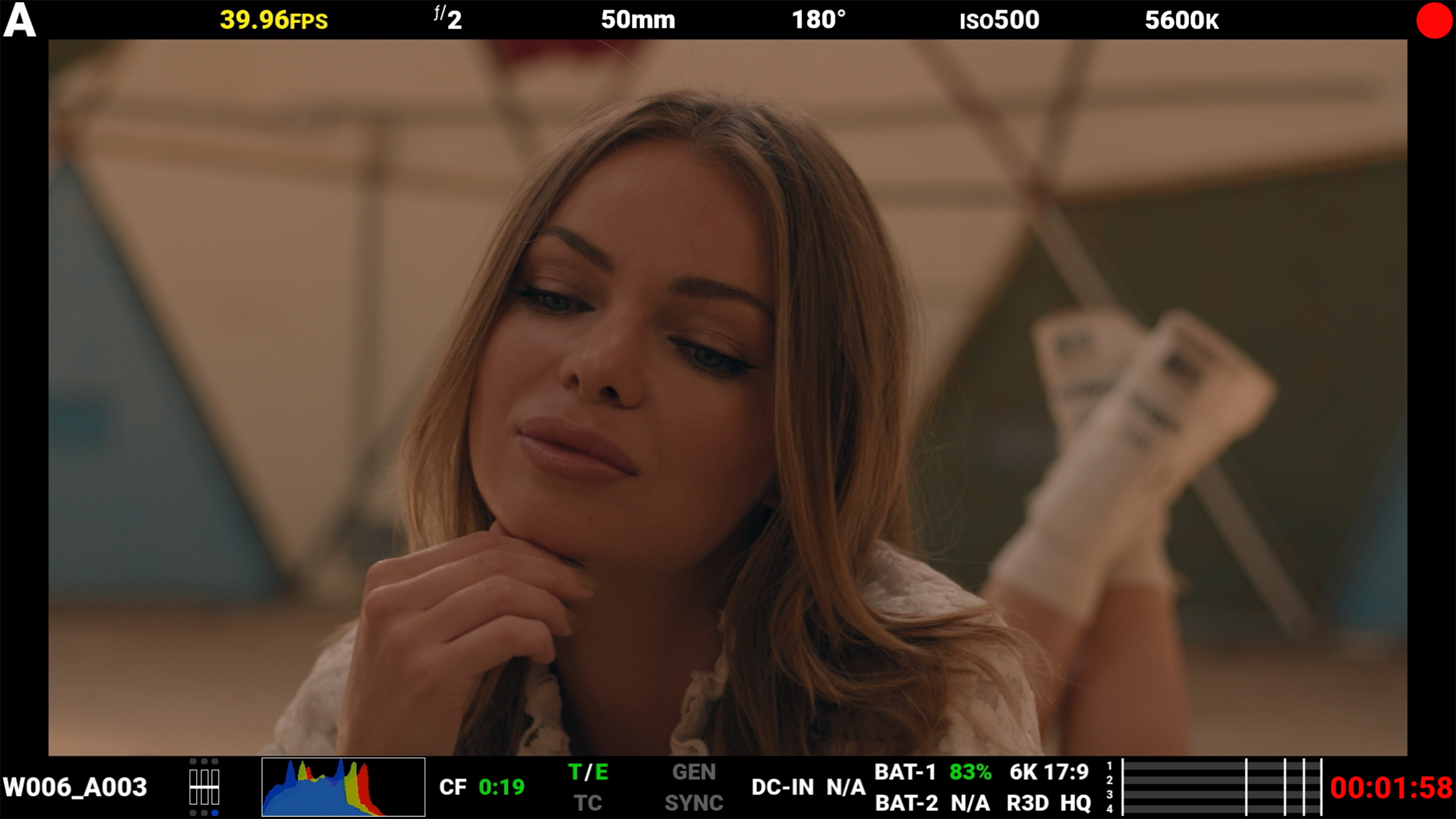

Advanced Mode
Advanced mode displays the following:
|
Top |
bottom |
|
|
• Camera Number • Recording Frame Rate • f-Stop • Focus Length • Shutter Angle • ISO • White Balance |
• Clip Name • Exposure Meter • Histogram • CFast Time Remaining • Temp / Exp Calibration • Timecode, Genlock, Synch • DC-In, Battery • Format, File Type, Rate • VU Meter • Elapsed time |
When the camera is recording, the elapsed time turns red, and a red dot appears in the top right corner.
SDI Port Description
The Serial Digital Interface (SDI) port allows the camera to deliver 12 Gbps of image bandwidth with greater resolution, frame rates, and color fidelity. This single BNC cable solution makes it ideal for the 4Kp60 format.
NOTE: Always use 12G-SDI BNC cables when connecting the camera’s SDI port, regardless of the resolution.

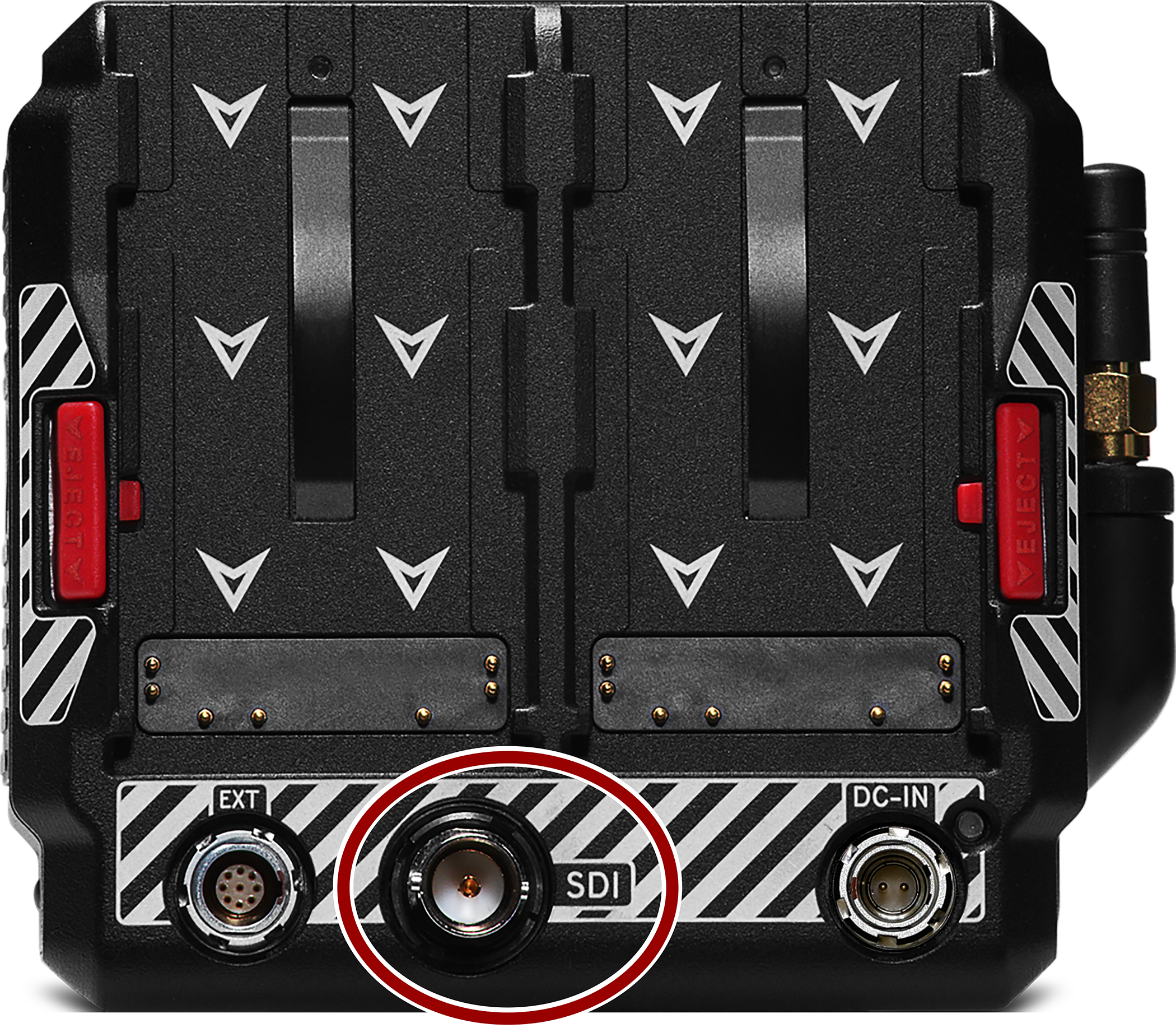

The SDI port is located on the back of the camera body.
WARNING: Always connect the DC power cable (or batteries) before connecting the BNC SDI cable. Always remove the BNC SDI cable before removing the DC power cable (or batteries).
|
|
For more information about the SDI standard, refer to the SMPTE (Society of Motion Picture and Television Engineers) standard SMPTE ST-2082. |
