DC-Input
The DC-IN port is located on the back of the camera body.
Connect the 2-pin 0B ODU DC power Adaptor plug to this port to provide the camera with continuous DC power. The RED power Adaptor provides DC power to operate the camera and to recharge the attached Batteries.
NOTE: The camera cannot charge batteries while it is turned on.
Specifications
The 2-Pin 0B connector accepts unregulated (+) 7 to 17 Volts (V) Direct Current (DC) power. Power consumption for the camera alone is approximately 27 Watts.

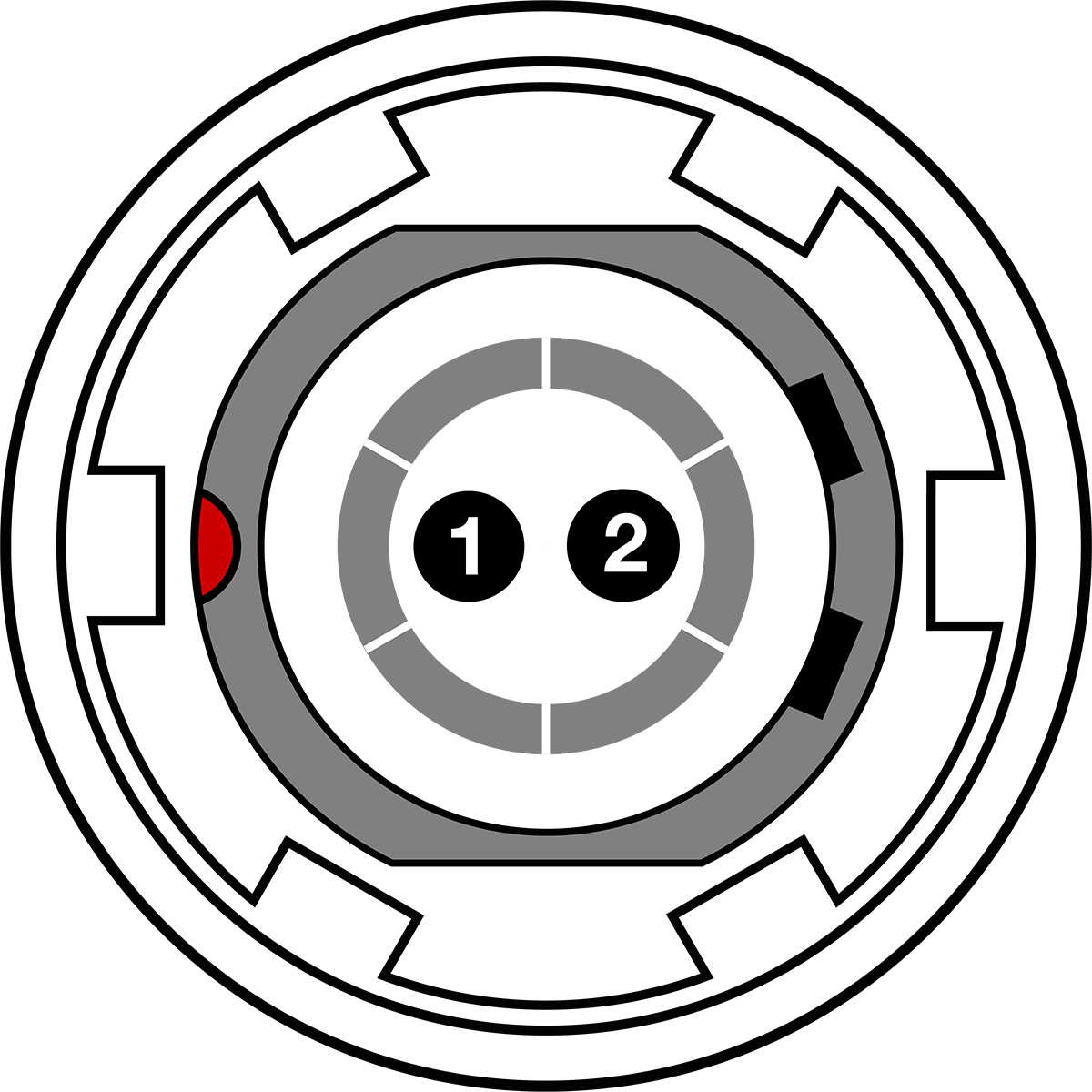

Figure: Front Face of DC-IN Port (looking at the back of the camera)
NOTE: The required mating connector is a 2-Pin 0B Straight Plug Connector (ODU, part# SX0LCX-P02LJG0-0001).
ODU 0B 2-Pin Connector
|
PIN |
|
SIGNAL |
|
Description |
|
Direction |
|---|---|---|---|---|---|---|
|
1 |
|
7 to 17 Volts DC |
|
Power to the camera and batteries |
|
In |
|
2 |
|
GROUND |
|
Common ground |
|
N/A |
