Secure Format

A secure format is a low level format that rebuilds the CFast card file system. A secure format erases all data on the card.

Perform a secure format when the camera is reporting media-related errors.

Performing a Secure Format

CAUTION: Ensure all data is backed up before formatting a card. Data erased during formatting cannot be recovered.

WARNING: The media can get extremely hot. Use caution when removing media.

To perform a secure format, follow the instructions below:

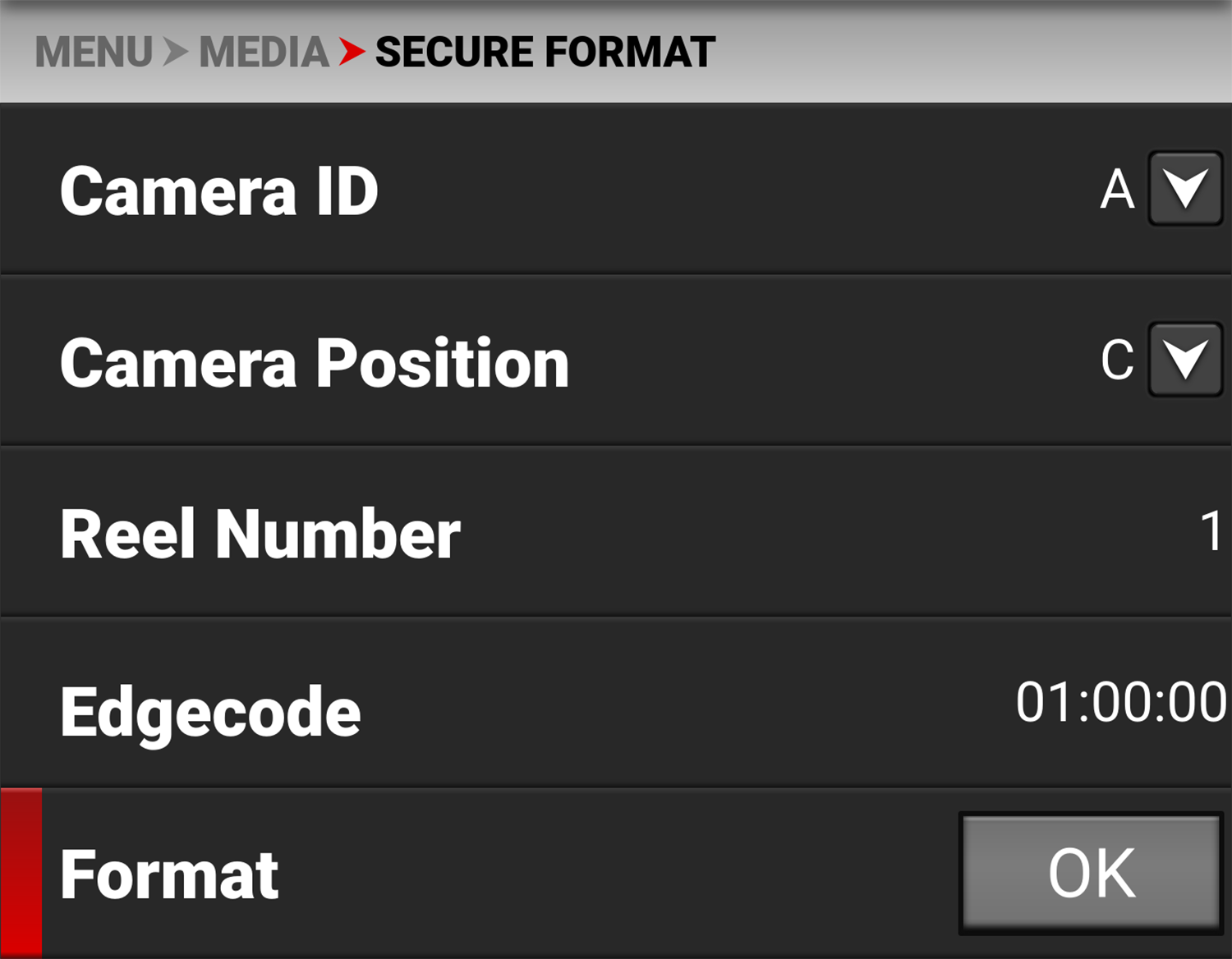

1. Go to MENU > MEDIA > SECURE FORMAT:

2. From the Secure Format menu, select the desired Camera ID, Camera Position,Reel Number and Edgecode. Tap the Format button to start the Secure Format process:

The confirmation message displays:

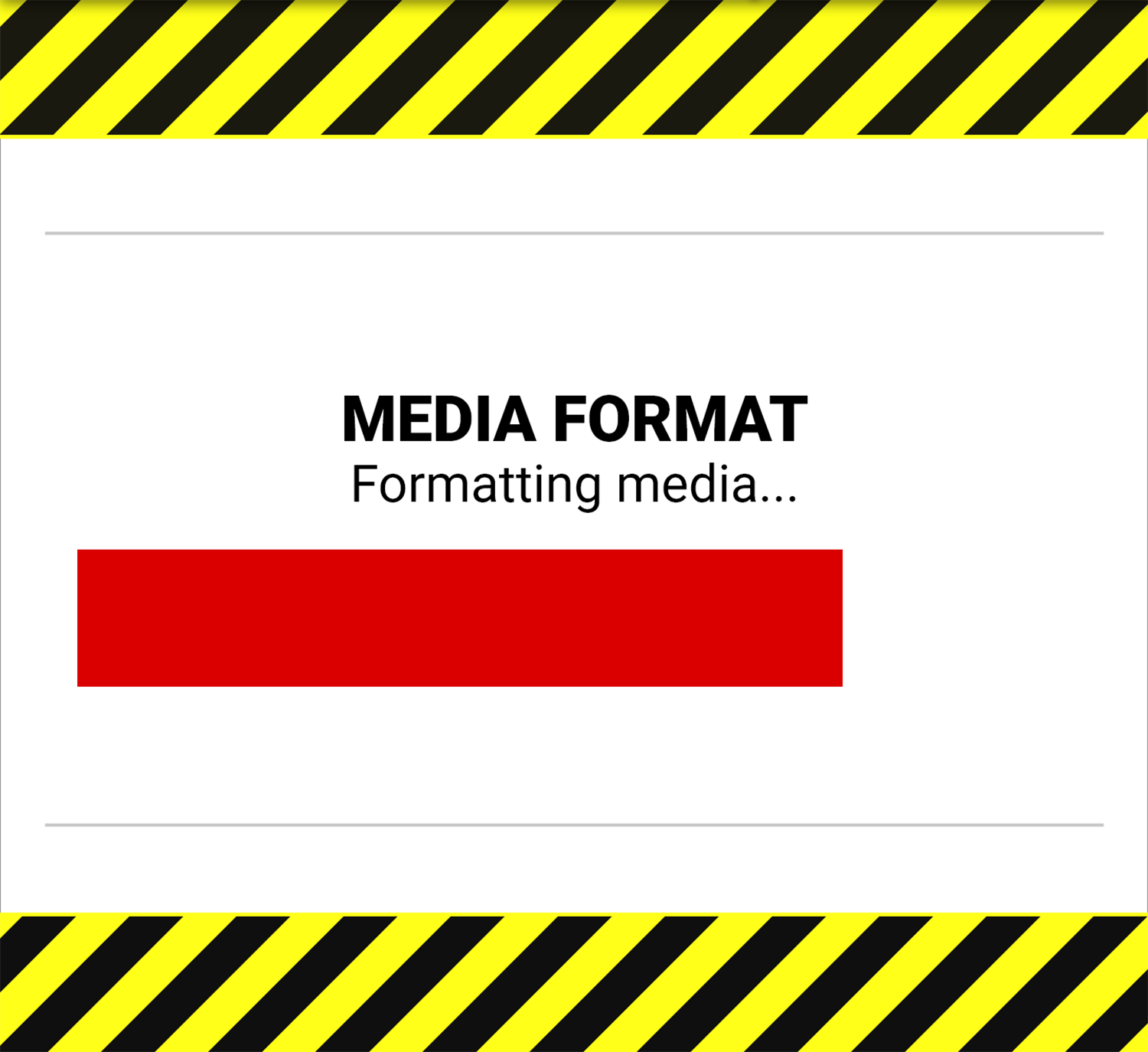

3. Tap Yes to begin formatting.



Formatting Media On a Computer

RED recommends that you only format your CFast media card from a computer when you cannot mount the media to the camera.
