Rails, Mounts, Tactical Gear, and Cables
RED offers a wide variety of support gear, mounting platforms, cables, accessories, and other equipment. For more information, visit the RED Store.
Maximum Supported Weights
The table below lists the maximum weight each handle can support in specific configurations. Damage to handles or other components of the camera system caused by using a handle to lift more than the specified weight is not covered under warranty.
|
Item |
Part # |
Configuration |
Max Weight |
|---|---|---|---|
|
DSMC2 Universal Handle |
790-0523 |
Attached directly to the camera body |
30 lbs |
|
Production Handle |
105-2120 |
One riser attached to a plate; handle extension attached |
40 lbs |
|
Two risers attached to a plate; handle extension attached |
80 lbs |
Production Handle

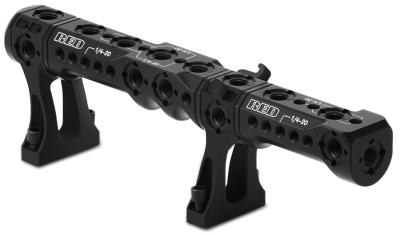

Figure: Production Handle
The modular design of the Production Handle provides a configurable, rugged handle with an array of 1/4-20 and 3/8-16 mounting points for industry-standard accessories. It can be set up in a compact or extended configuration to suit various shooting needs.
The Production Handle ships with a focus hook, which can be mounted on the handle in two separate mounting points (one for DSMC2 cameras, and another for RED RANGER cameras).
15mm Lightweight Rod Support

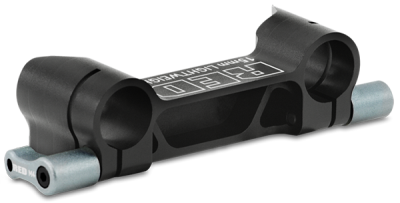

Figure: 15mm Lightweight Rod Supports
The 15mm Lightweight Rod Supports (P/N 105-2151) are designed for the following types of camera setups:
- Configurations with top-mounted rods (which can support EVF mounts and top-mounted lens motors)
- Compact camera configurations in which bottom-mounted rods are not desired
