Side LCD and Navigation

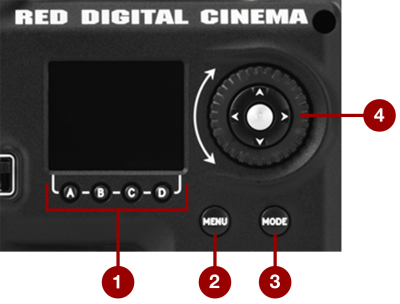

Figure: Side LCD and Navigation
|
# |
Control/Item |
Description |
|---|---|---|
|
1 |
User Keys (A–D)1 |
A: Cycle Auto-Focus Mode B: Auto White Balance C: Toggle: Magnify D: Toggle Exposure Mode A + D: Lock/unlock side buttons to prevent inadvertent menu changes |
|
2 |
MENU Button |
Access menus or exit currently selected menu |
|
3 |
MODE Button |
Toggle between Remote and Local Modes |
|
4 |
Navigation Group |
Navigate menus and menu items; Go to Navigation Group |
- Press User Keys A + D simultaneously to lock/unlock Side LCD buttons to prevent inadvertent menu changes.
Navigation Group

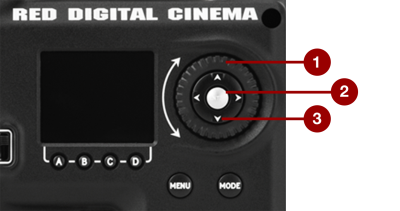

Figure: Navigation Group
|
# |
Navigation Group Element |
Description |
|---|---|---|
|
1 |
Scroll Wheel |
Select and adjust the value of a selected setting |
|
2 |
ENTER key |
Press ENTER to confirm a setting or access the selected menu |
|
3 |
Directional Keys |
Navigate menus and menu items |
Navigate the menus using the following controls:
- Press ENTER to open the menu, then rotate the Scroll Wheel clockwise to move right, counterclockwise to move left to highlight the desired menu or parameter. Press ENTER to select.
- Press the Up Directional Key to open the related Advanced Settings menu, if one (1) is available.
Operation Modes
The Side LCD display reflects the currently selected mode. Use the Scroll Wheel and Directional Keys to navigate menus. Press MENU to access the Advanced Menu.
Press MODE to toggle between the following modes:
- Remote Mode: Navigate with the Side LCD controls, using an attached LCD, EVF, or other monitor as a reference. The Side LCD displays the primary control screen.
- Local Mode: Navigate using the Side LCD controls and display. User Keys A-D are inactive.
Key Lock/Unlock
Lock the keys on the Side LCD to prevent inadvertent button presses and menu changes.
- Lock: Press A + D simultaneously.
- Unlock: Press A + D simultaneously. Alternatively, press and hold ENTER while keys are locked.
Side LCD Display
The Side LCD display provides basic camera parameters during operation.

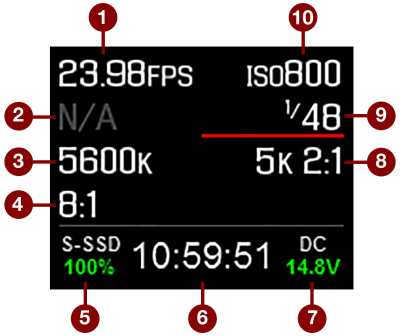

Figure: Side LCD (Local Mode)
The Side LCD displays the following camera parameters:
|
# |
Item |
Description |
|---|---|---|
|
1 |
Frame Rate |
Current Recording Frame Rate |
|
2 |
Lens Information |
Displays aperture if a supported Cooke lens is attached |
|
3 |
White Balance |
Color temperature |
|
4 |
REDCODE |
REDCODE compression setting |
|
5 |
Media Status |
Displays media location and remaining media capacity |
|
6 |
Timecode |
Current timecode value |
|
7 |
Power Status |
DC supply voltage or % of remaining battery capacity |
|
8 |
Resolution |
Recording resolution |
|
9 |
Shutter Speed |
Integration time or shutter angle |
|
10 |
ISO |
Camera sensor sensitivity |
