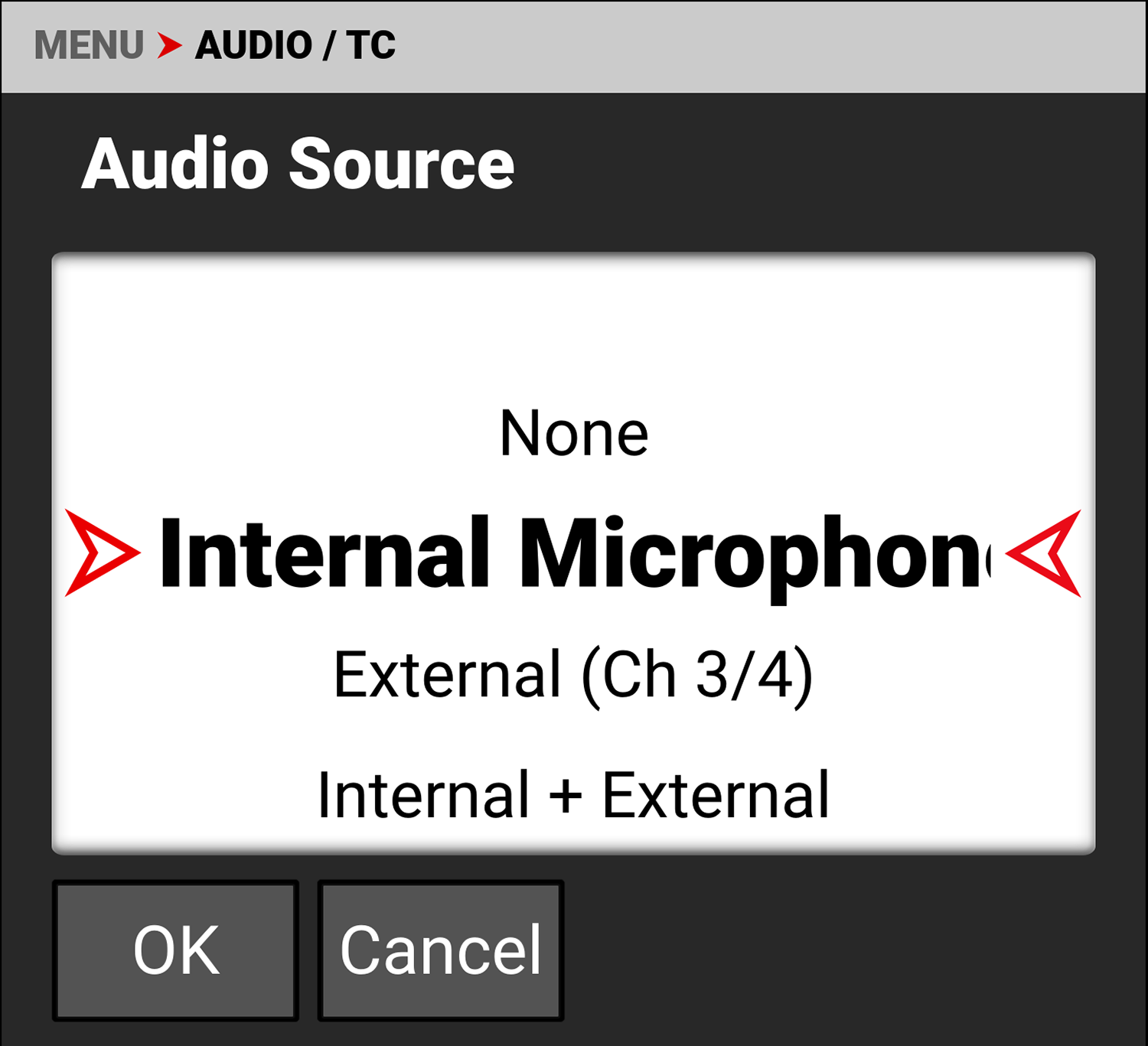

Audio Source

Use the Audio Source settings to select the audio input source.

The audio input sources include:

  • None
  • Internal Microphone - enables the Internal Microphone channels 1 and 2 (default)
  • External - enables the 3.5 mm Audio Input port for External Audio channels 3 and 4
  • Internal and External - enables the Internal Microphone and the 3.5 mm Audio Input port for all channels 1 through 4.
    NOTE: The headphones can only monitor two channels. You can either monitor channels 1 and 2 (internal microphone) or you can monitor channels 3 and 4 (external port). Refer to Audio Tools for more information.
