Power

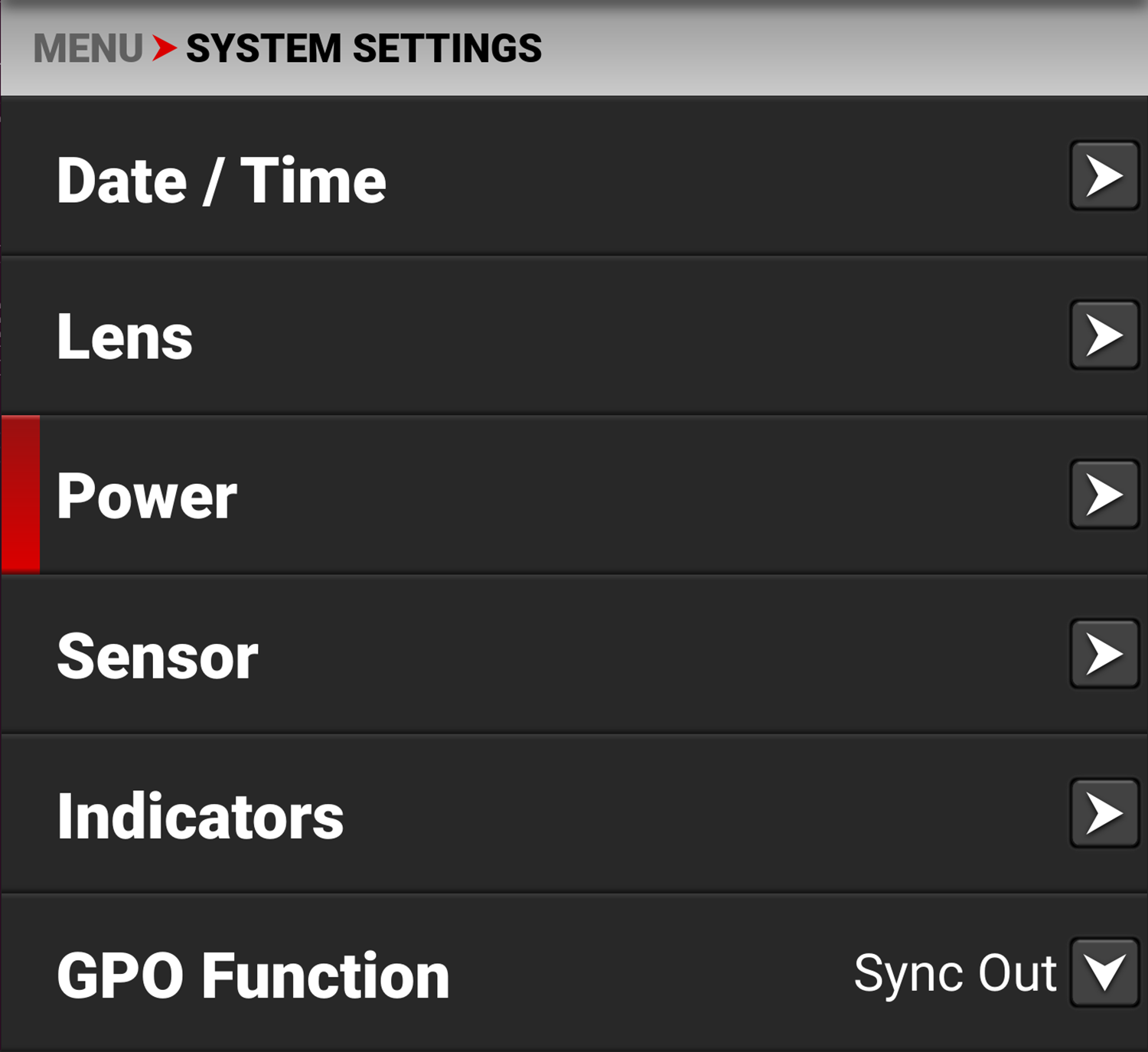

Use the Power menu to view the various camera power status indicators:

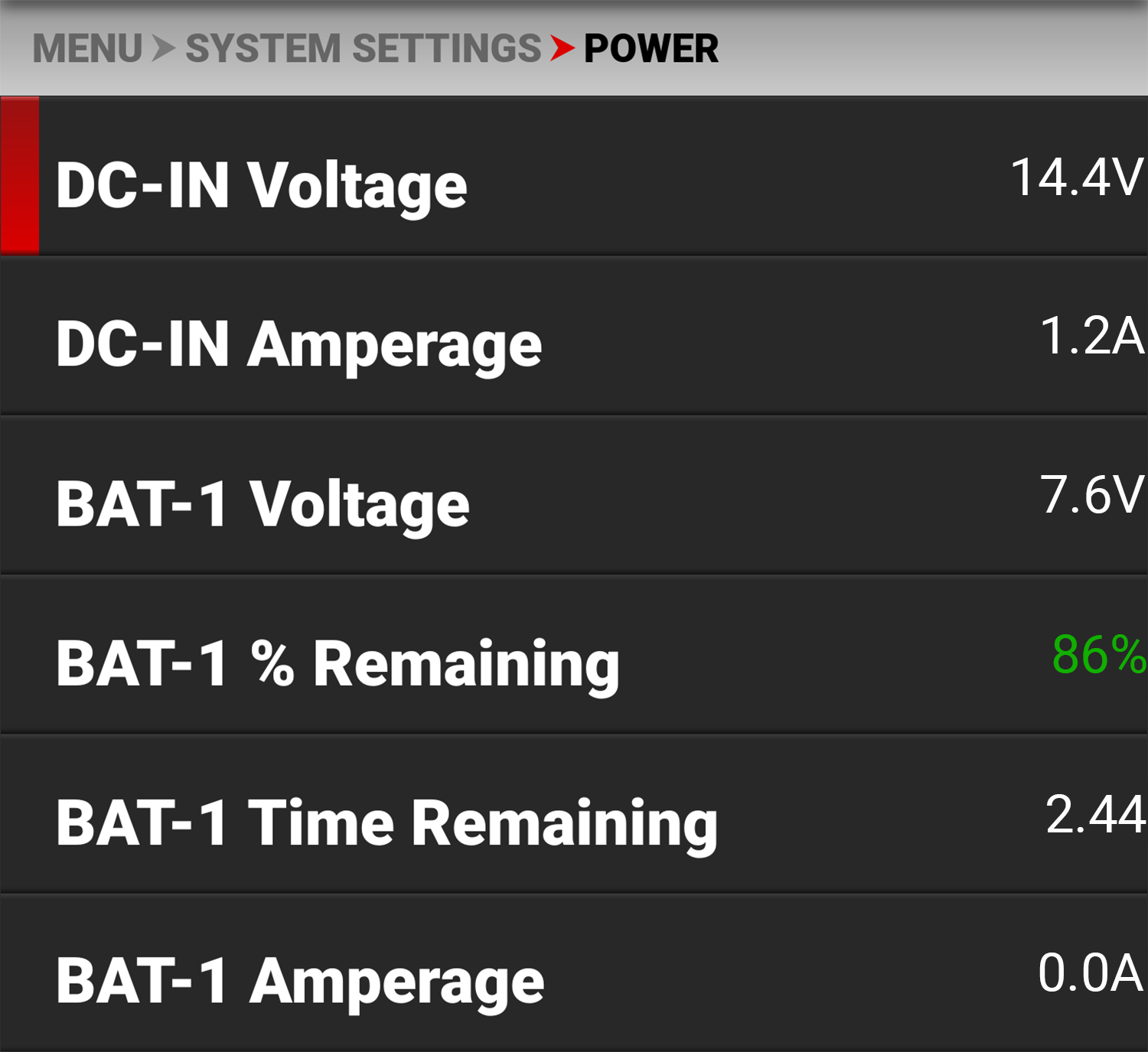

The Power indicators you can view include:

Items

Details

DC-IN Voltage

When DC is connected, this displays the DC Voltage

DC-IN Amperage

When DC is connected, this displays the DC Amps

BAT-1 Voltage

When a battery is connected in the left #1 slot, this displays the battery Voltage

BAT-1 % Remaining

When a compatible battery is connected in the left #1 slot, this displays the % of battery charge remaining

BAT-1 Time Remaining

When a battery is connected in the left #1 slot, this displays the camera operating time remaining

BAT-1 Amperage

When a battery is connected in the left #1 slot, this displays the battery Amps

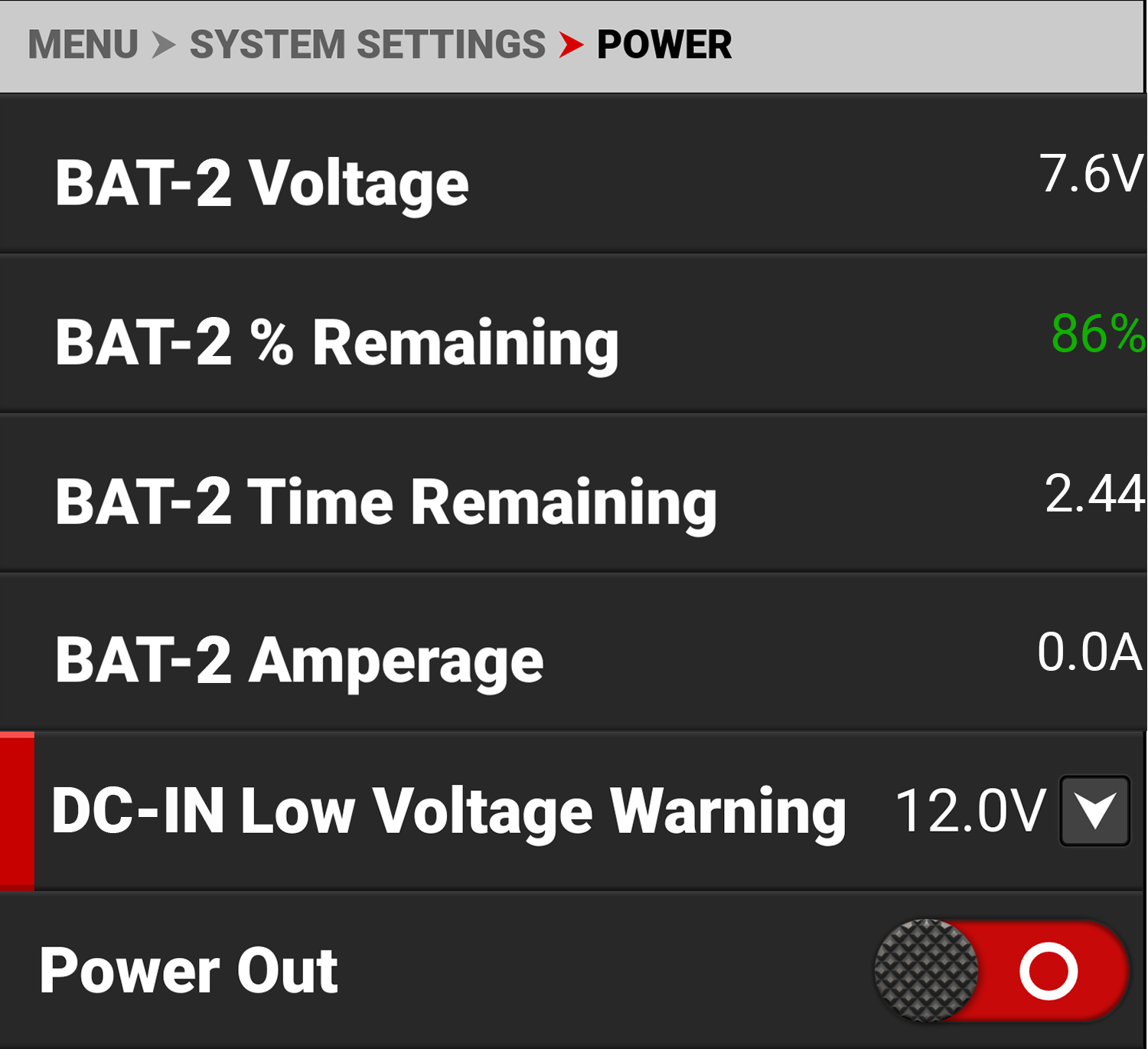

BAT-2 Voltage

When a battery is connected in the right #2 slot, this displays the battery Voltage

BAT-2 % Remaining

When a compatible battery is connected in the right #2 slot, this displays the % of battery charge remaining

BAT-2 Time Remaining

When a battery is connected in the right #2 slot, this displays the camera operating time remaining

BAT-2 Amperage

When a battery is connected in the right #2 slot, this displays the battery Amps

DC-IN Low Voltage Warning

Set the DC-IN low voltage warning threshold

Power Out

Enables or disables the 5 V / 500 mA power out of the Extension Port

DC-IN Low Voltage Warning

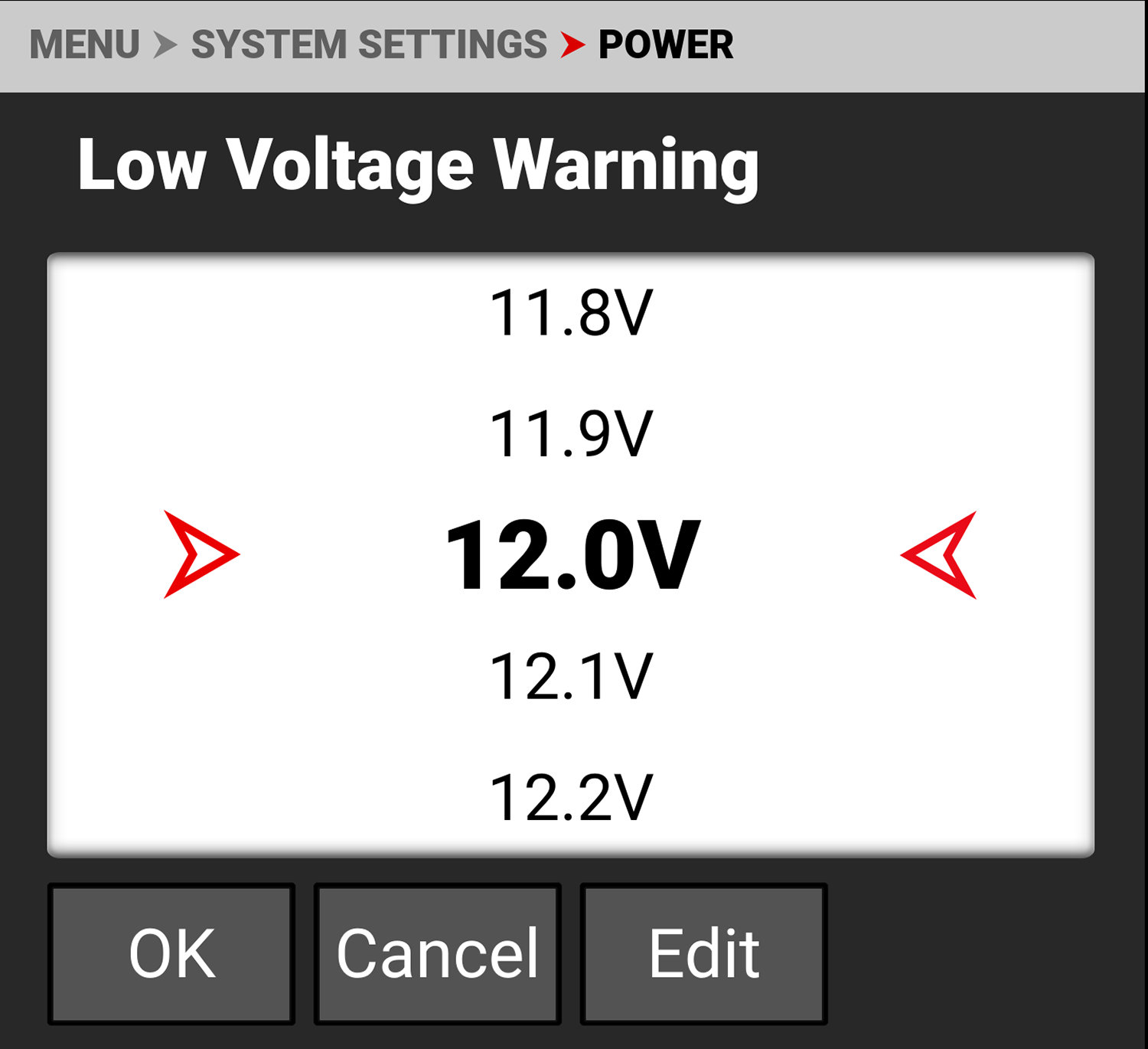

Use DC-IN Low Voltage Warning to set the desired DC-IN voltage level to trigger the low voltage warning. The warning displays on the LCD and across Overlay Modes that contain power status (refer to the Status Bar section for more information about the status icons).

DC-IN Low Voltage Warning only monitors the 11-17V DC-IN and not the 7.4 V BP-style battery system.
