Inserting the Media

The camera contains a covered compartment on the right side where you insert the CFast media card.

WARNING: Do not attach a label to the CFast media card. The heat generated by the media can weaken the label's adhesive, causing the label to detach inside of the camera. Labels can also diminish heat dissipation and cause excessive wear to the internal components. Removing a label from a CFast media card can possibly deform the card body.

Inserting the media card

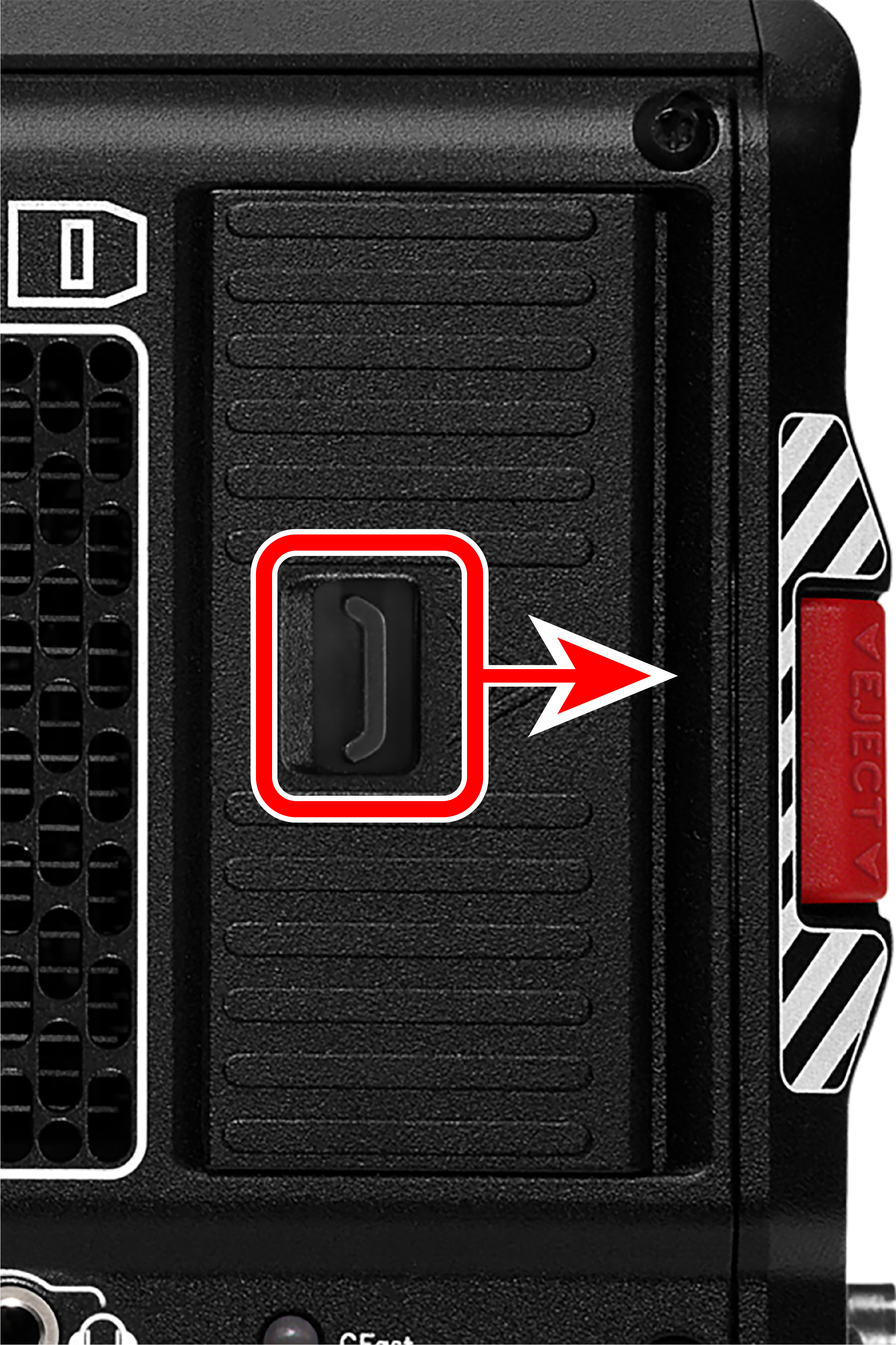

  1. Slide the media door latch back, and open the media door.

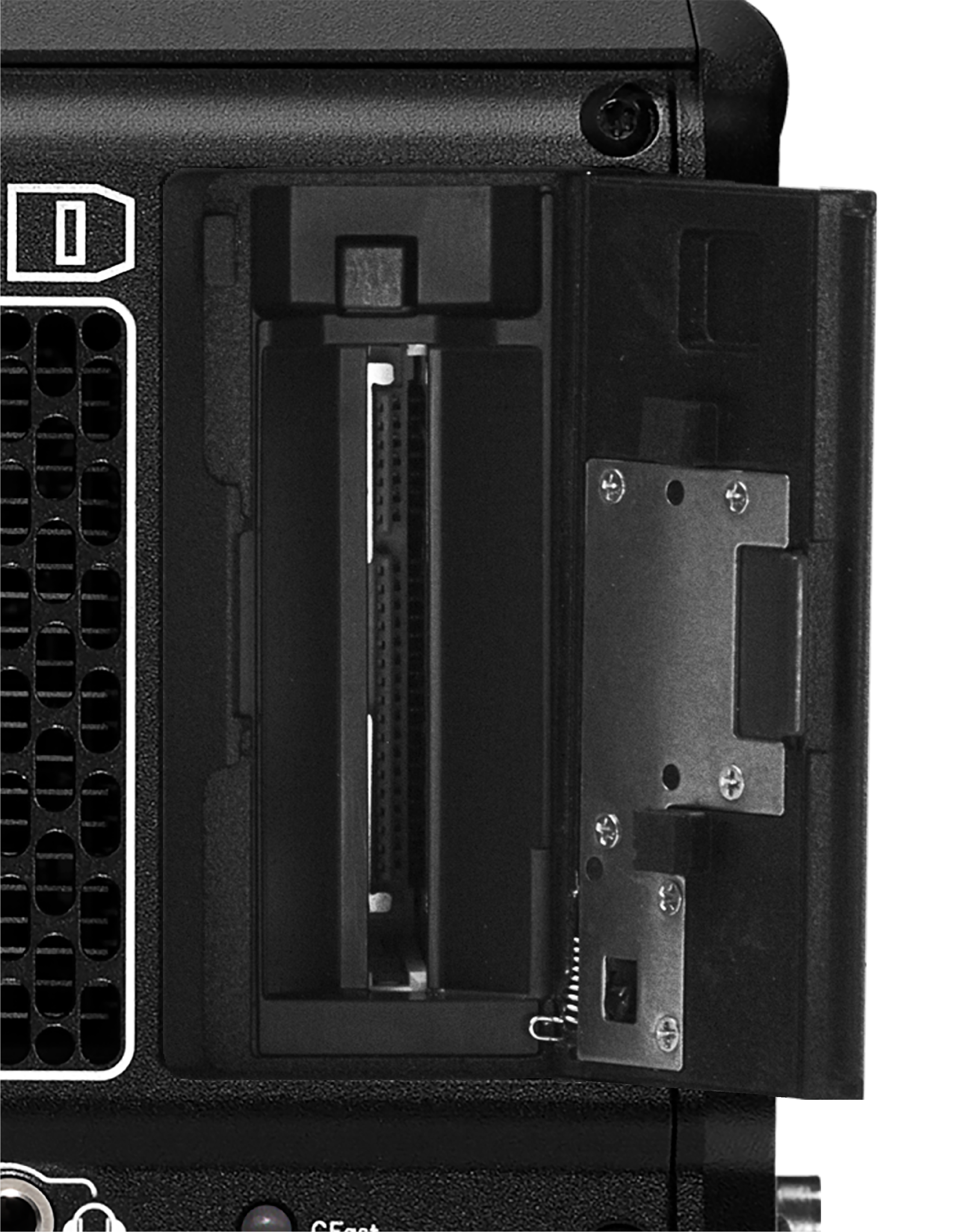

  1. Insert the CFast media card in the slot with the top of the card facing toward the front of the camera. Insert the card until it is firmly seated.
  2. Close the media door and make sure that the door latch clicks.
  3. If needed, format the CFast media card. Refer to Secure Format for more information.

Removing the media card

NOTE: Do not remove the CFast card while the camera is recording or formatting media. Refer to Media Management for more information.

WARNING: The media can get extremely hot. Use caution when removing media.

  1. If the camera is on, go to Menu > Media and select Eject.
  2. Slide the media door latch back and open the media door.

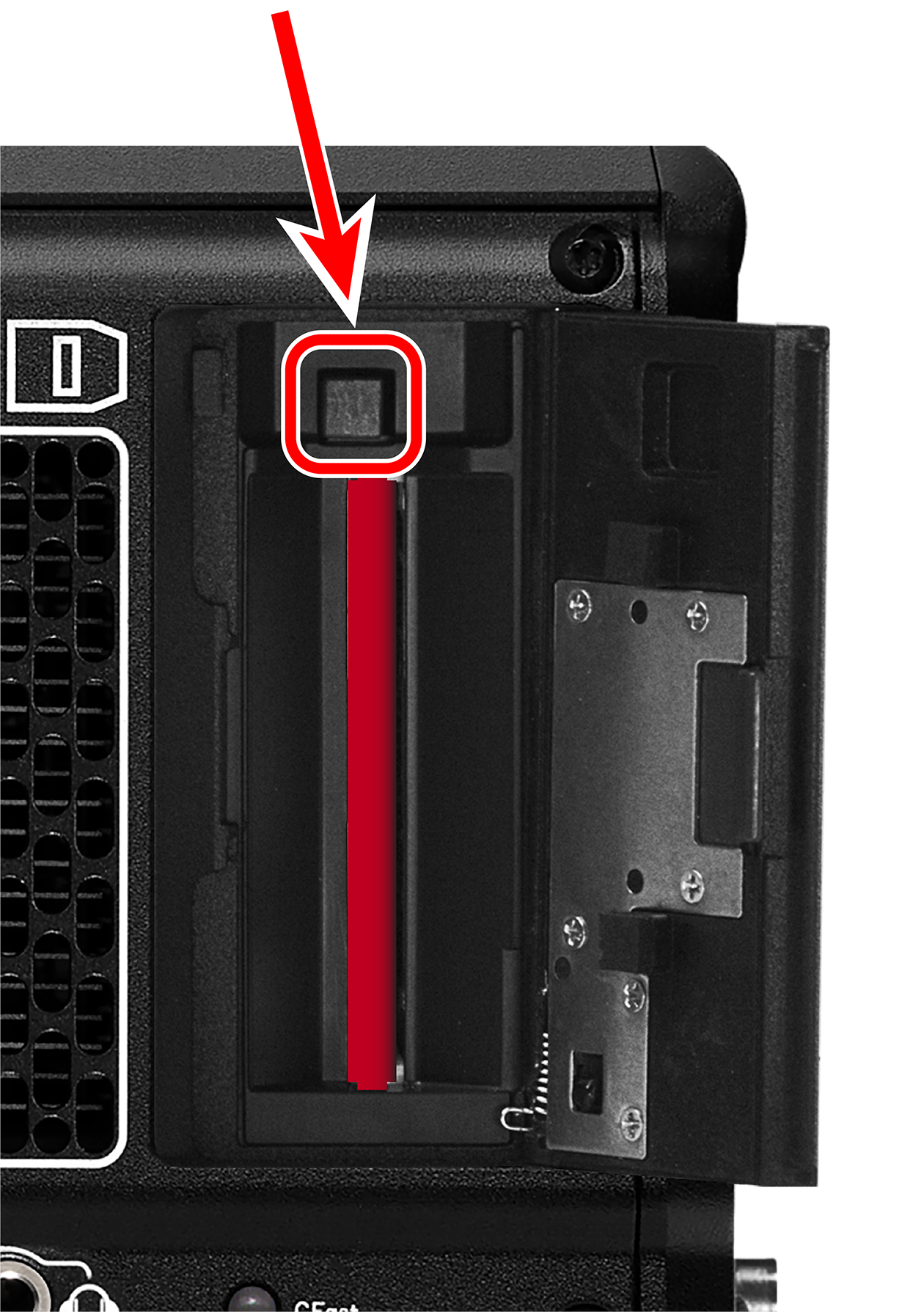

  1. Press the card eject button above the CFast media card.



  1. Let the CFast media card cool before gently pulling the card out of the slot.

WARNING: The media can get extremely hot. Use caution when removing media.

  1. Close the media door and make sure that the door latch clicks.
