Infrastructure

Use Infrastructure to configure the camera to connect to an existing Wi-Fi network.

NOTE: The Infrastructure menu is enabled when the Wi-Fi Mode is set to Infrastructure. Refer to the Wi-Fi section for more information.

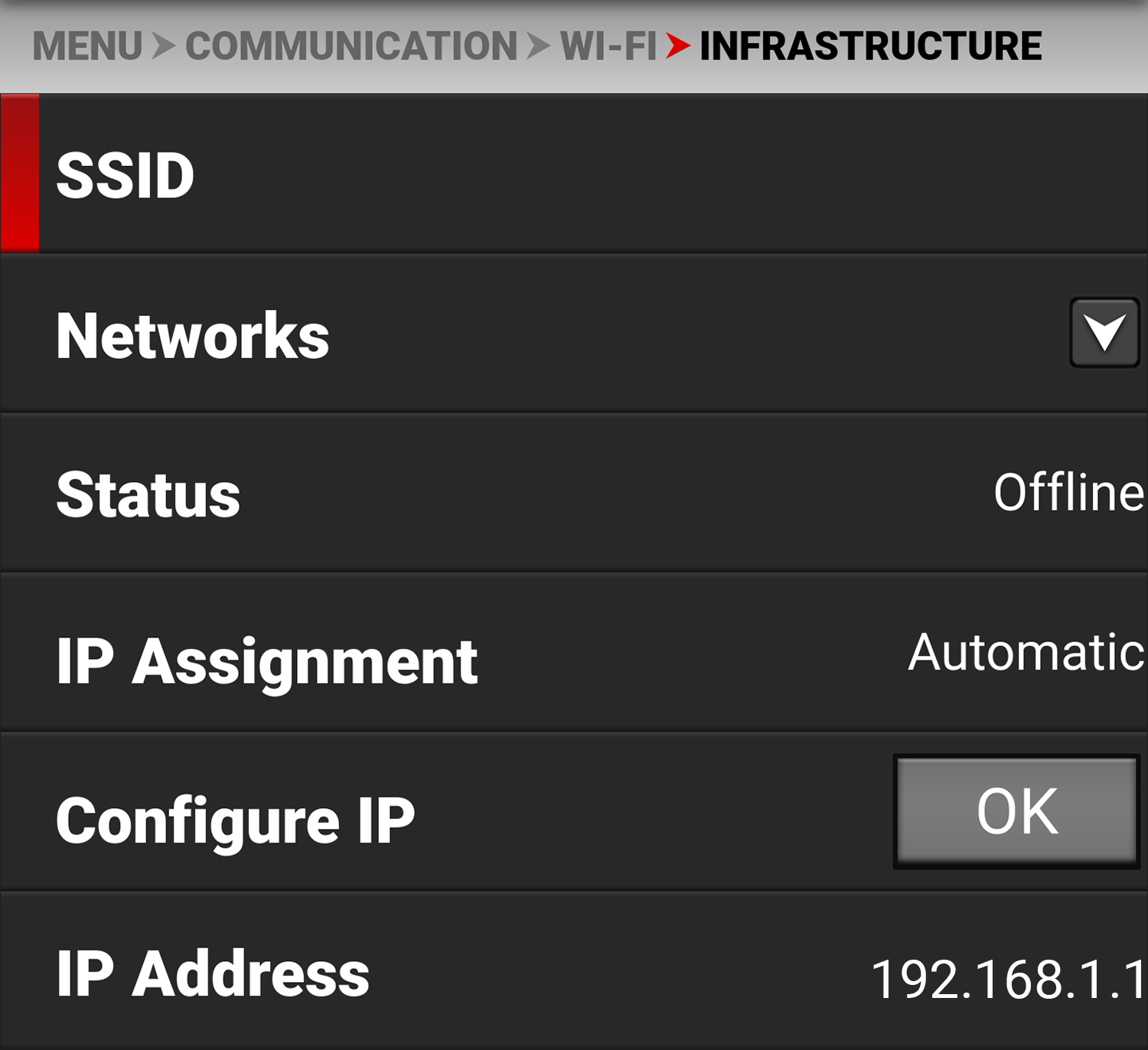

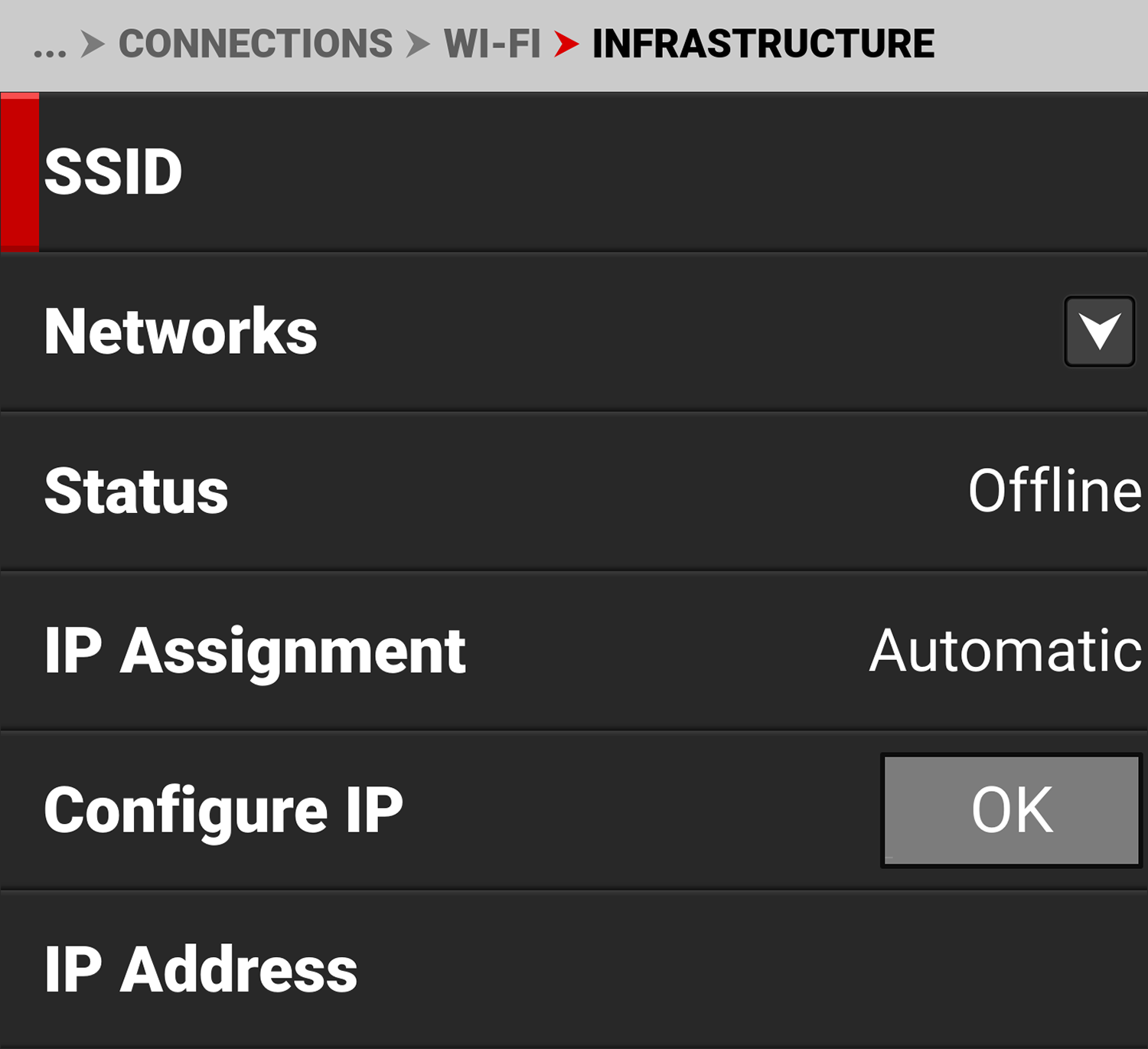

Use the Infrastructure menu to configure the Wi-Fi settings to connect to an existing Wi-Fi infrastructure:

Items		Details
SSID		Displays the name of the connected Wi-Fi network
Networks		Scan for, select, or enter the Wi-Fi network
Status		Displays the Wi-Fi connection status
IP Assignment Status		Displays the IP Assignment mode
Configure IP		Select the IP Assignment mode and add manual addresses

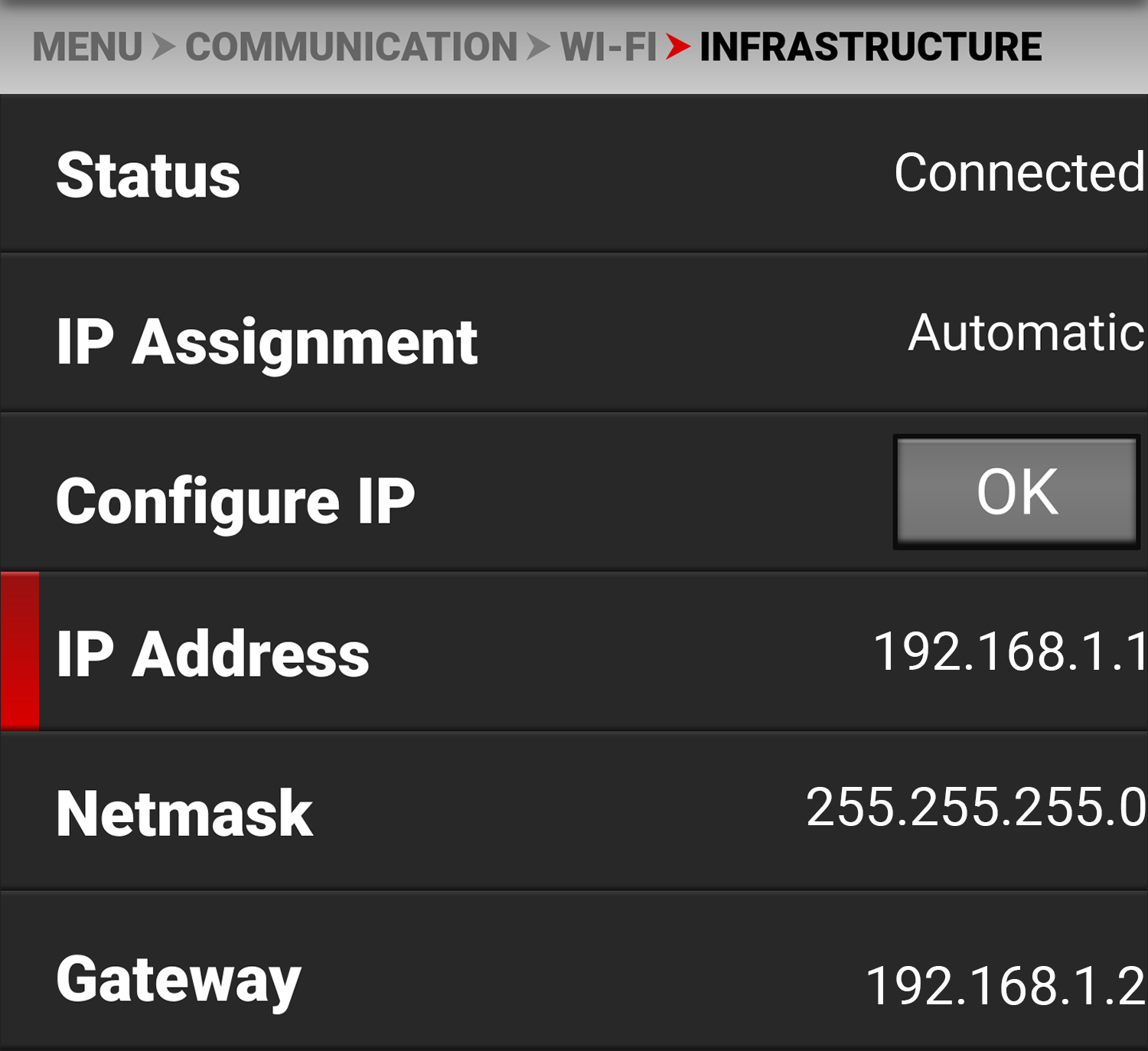

IP Address		View or enter the Wi-Fi IP address
Netmask		View or enter the Wi-Fi Netmask address

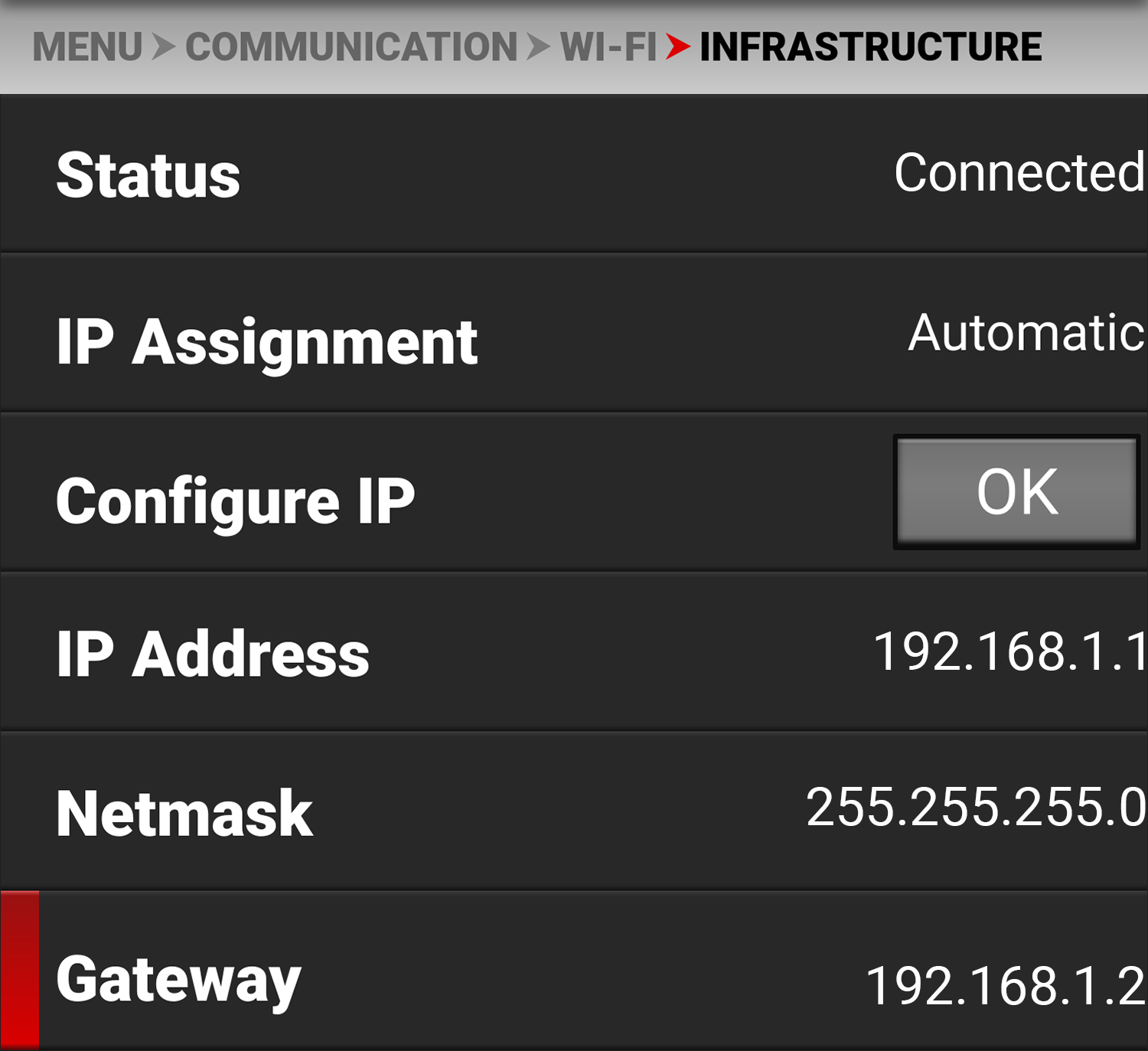

Gateway		View or enter the Wi-Fi Gateway (router) address

SSID

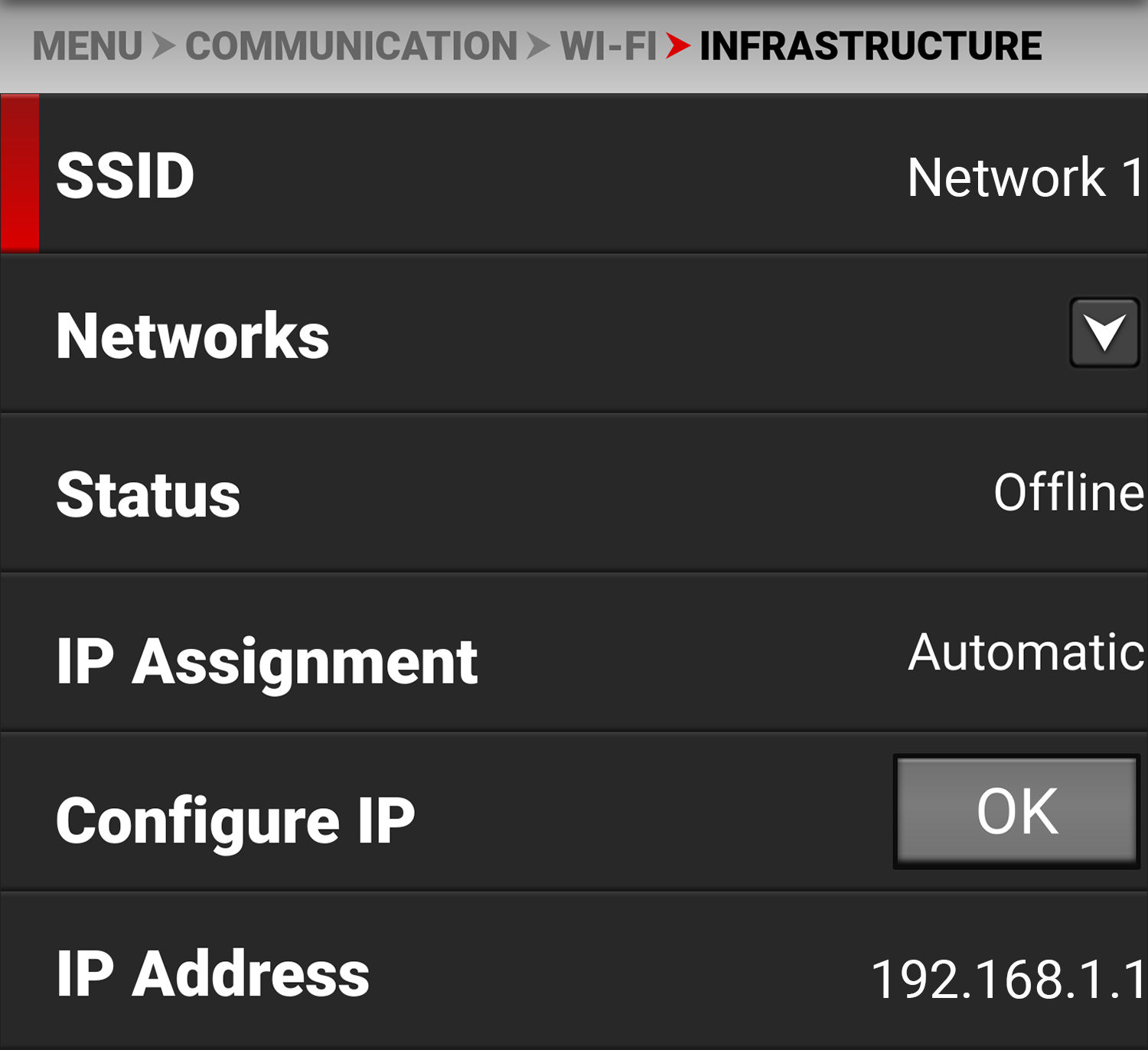

When a network is selected, the SSID displays the Wi-Fi network name (SSID).

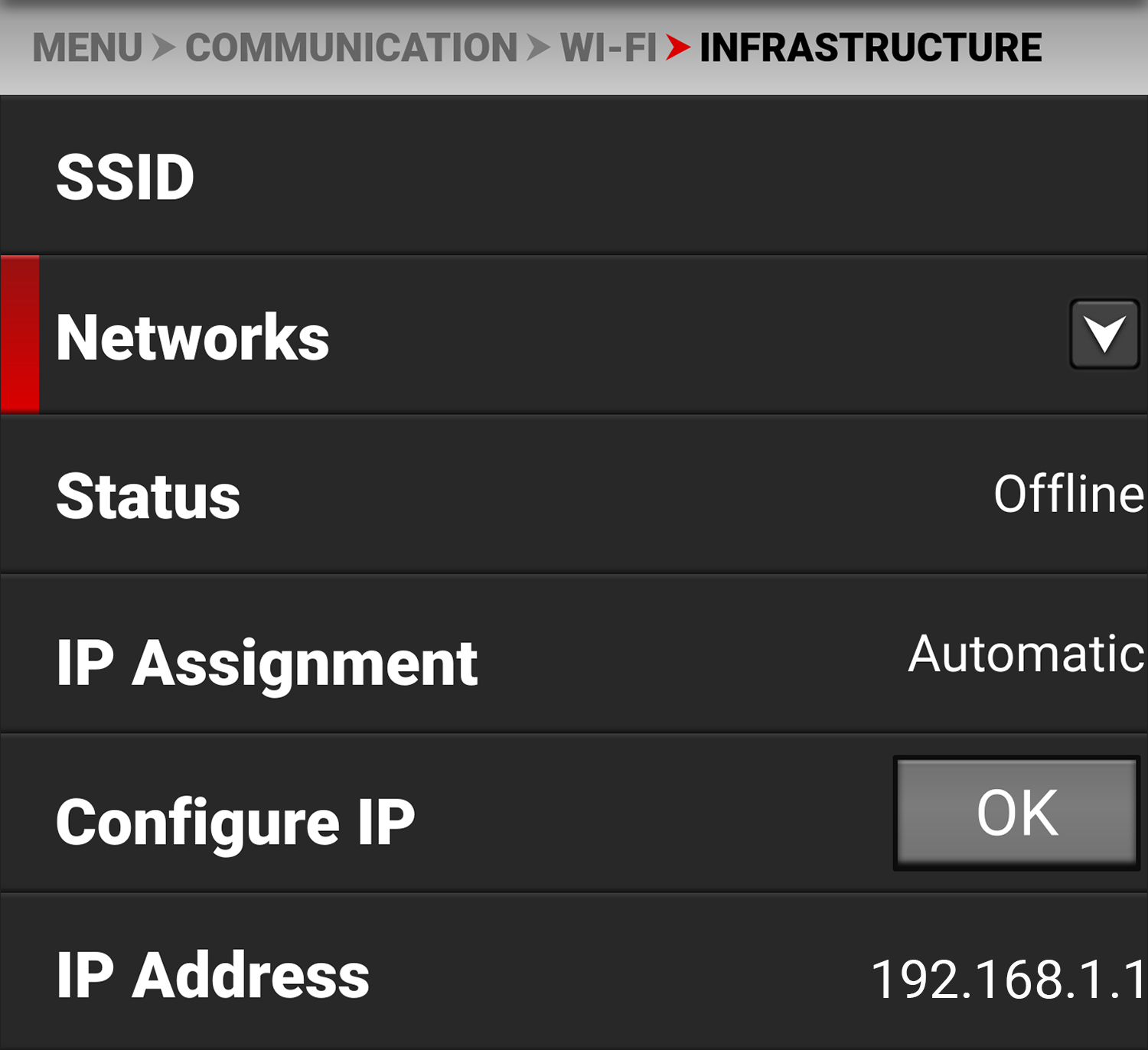

Networks

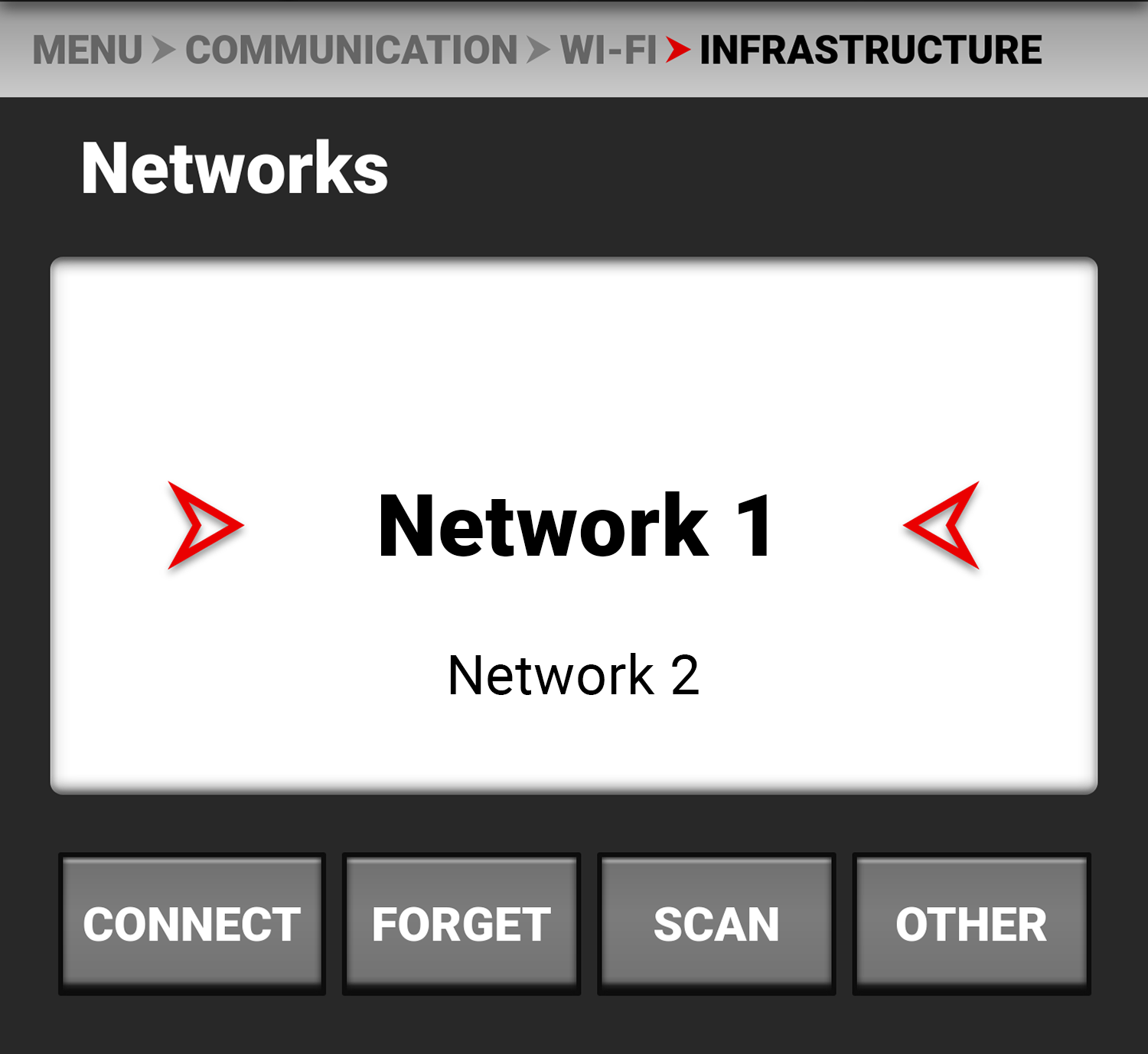

Use Networks to select an existing network, scan for an available network, or to configure a new network.

CONNECT: The CONNECT button connects the camera to the selected network.
FORGET: The FORGET button erases the connection information for the selected network.
SCAN: The SCAN button searches for available networks.

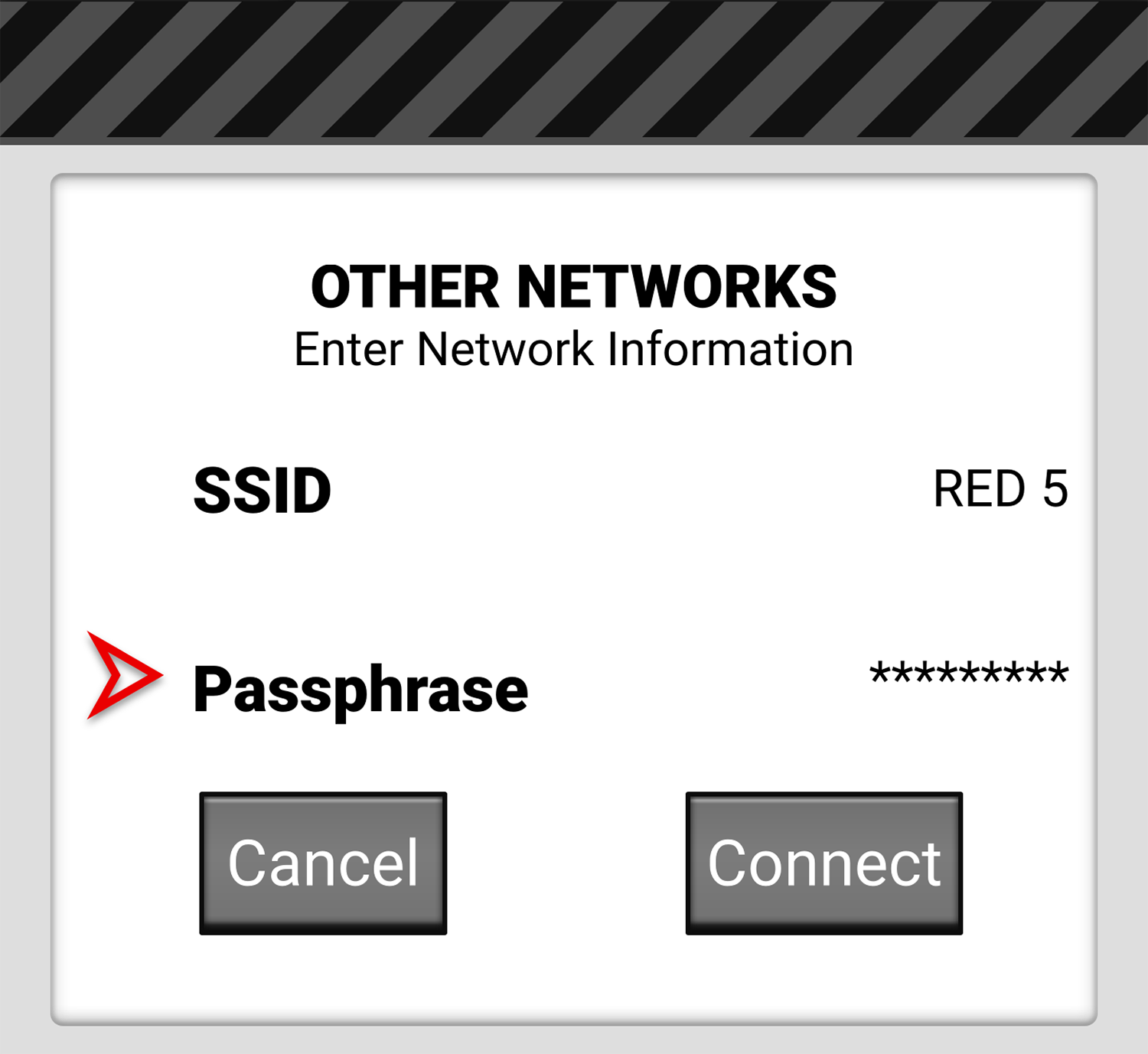

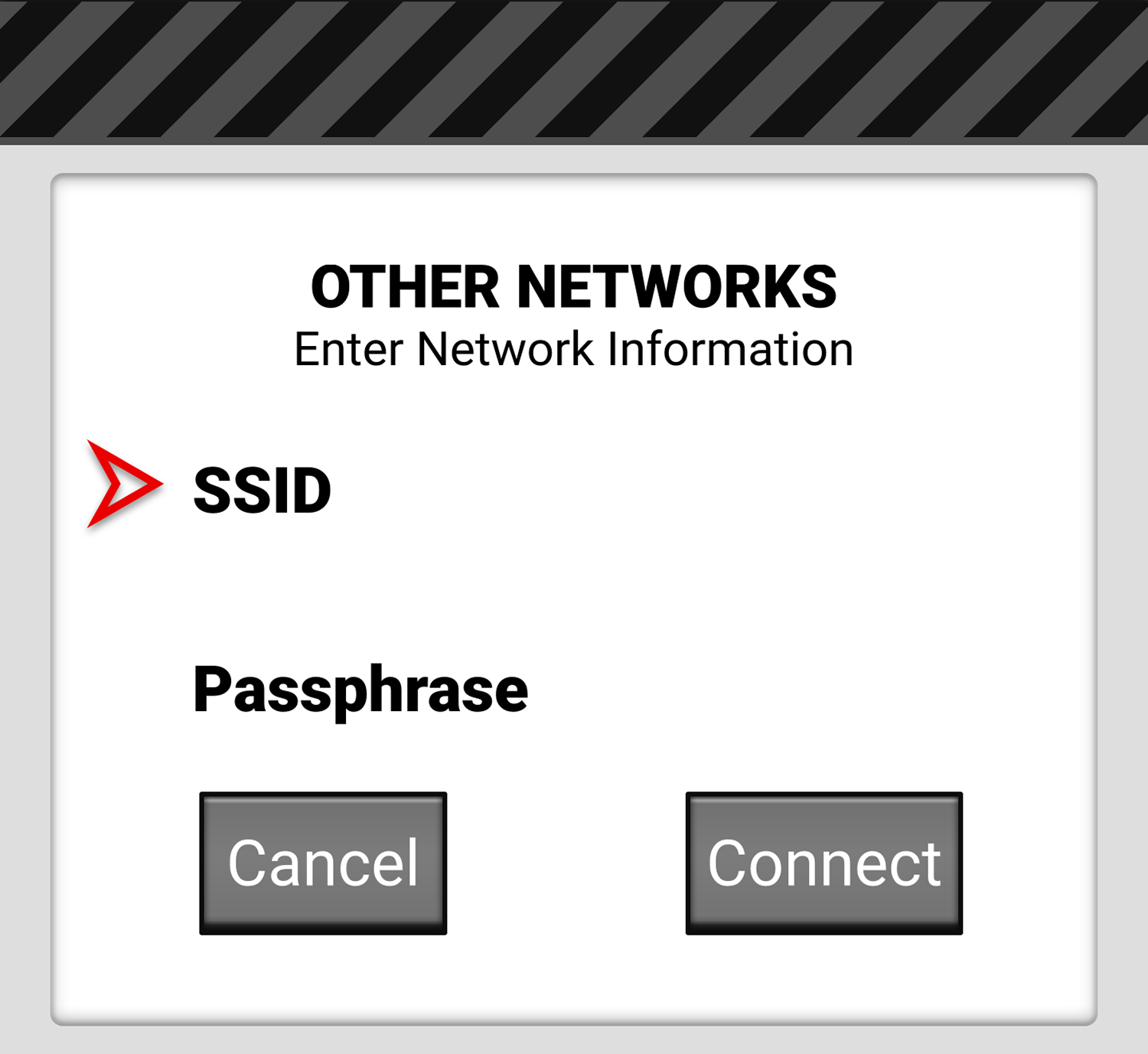

OTHER: The OTHER button opens the OTHER NETWORKS screen where you can manually enter an SSID and a Passphrase.

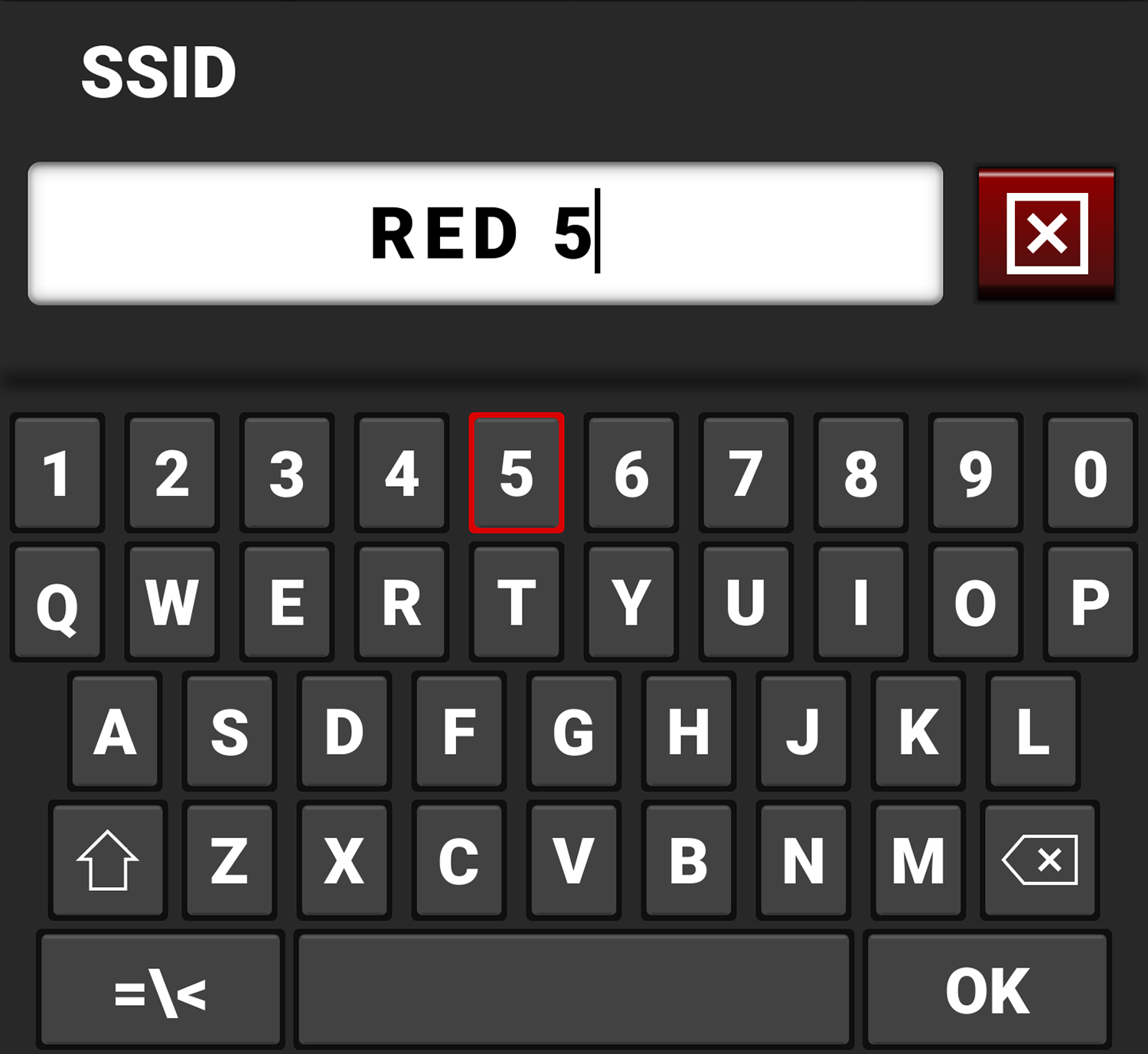

Tap SSID to open the SSID editing screen and enter the desired network SSID:

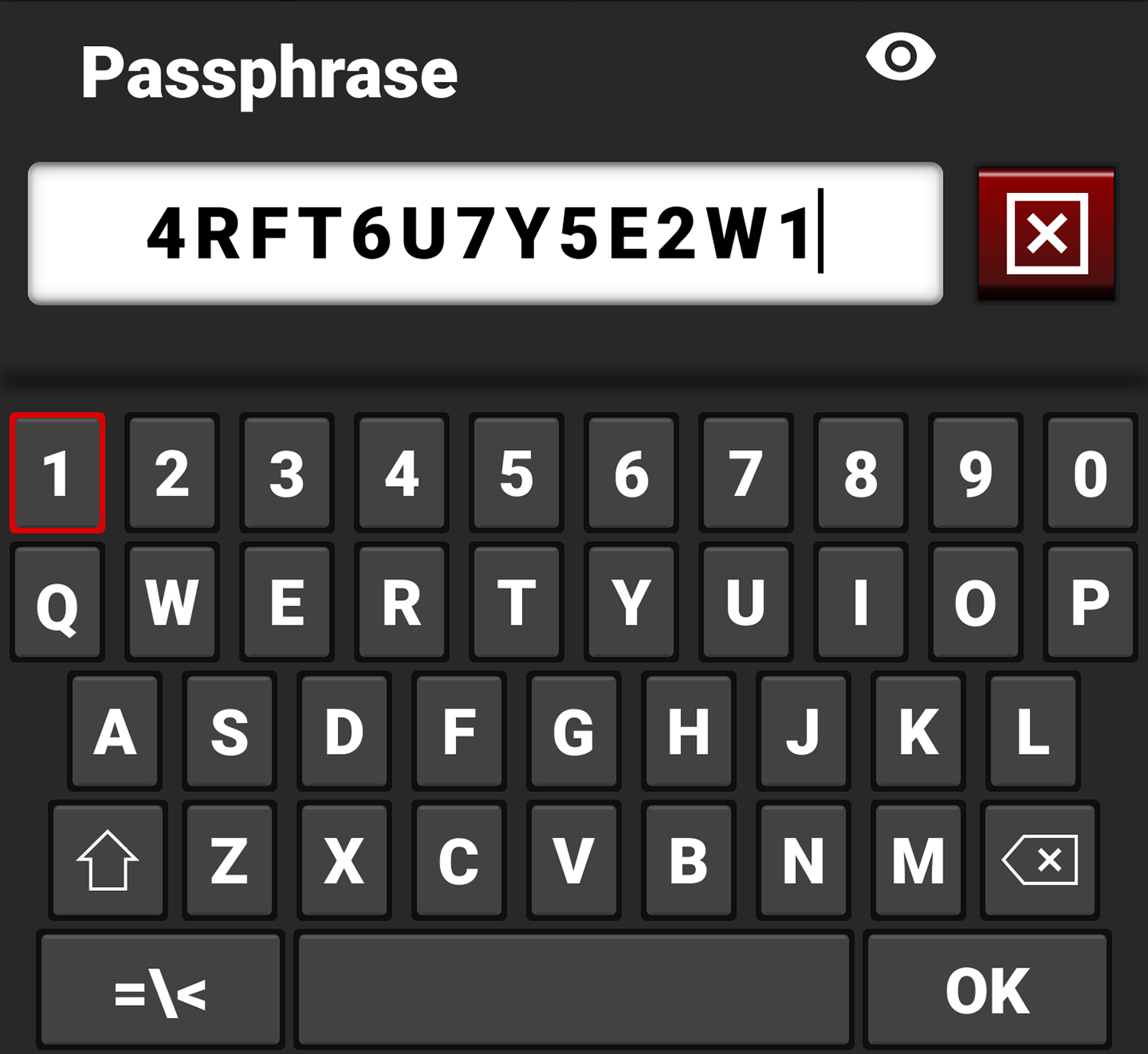

Tap Passphrase to open the Passphrase editing screen and enter the desired passphrase for the network:

Tap Connect to connect to the new network:

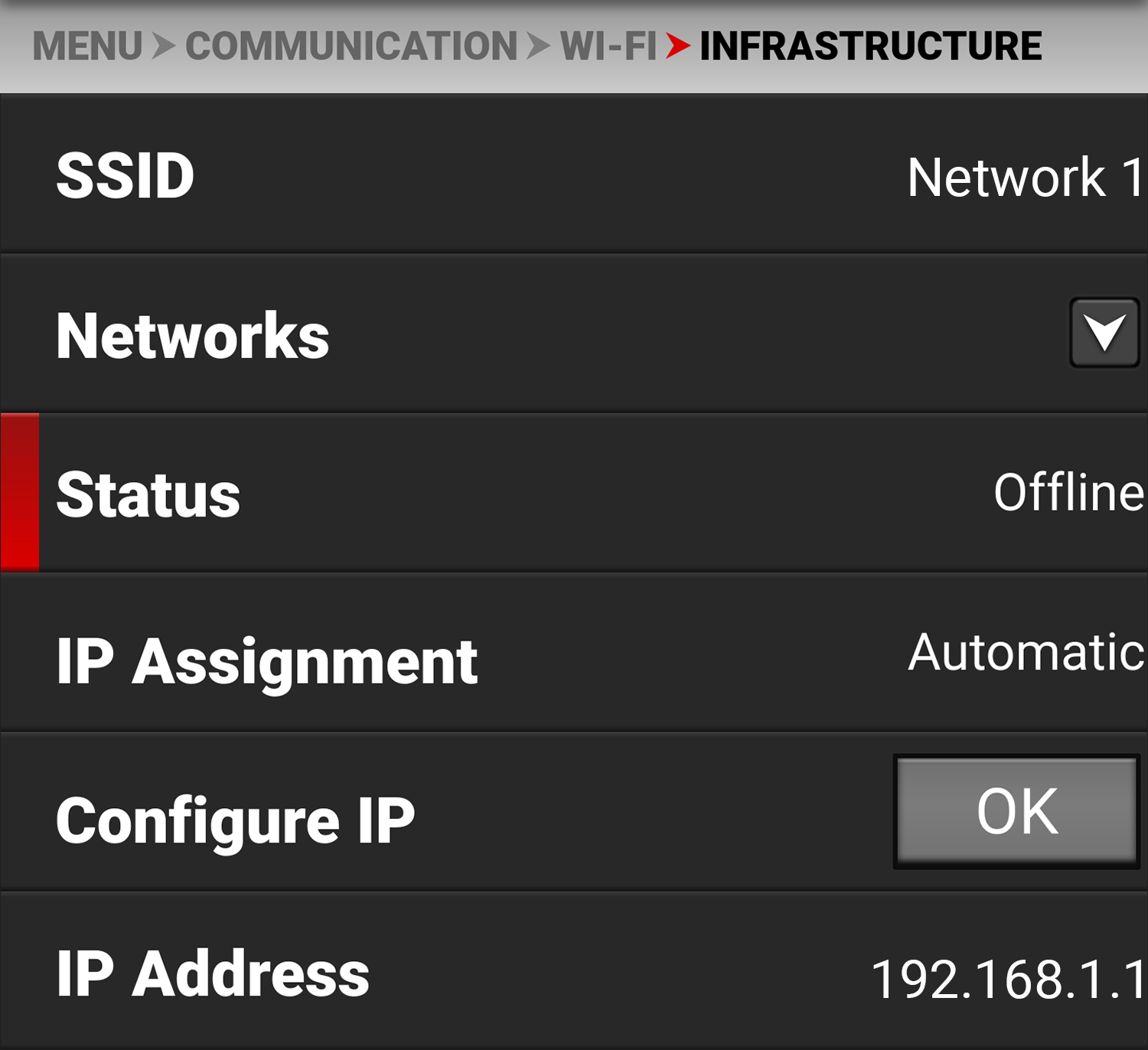

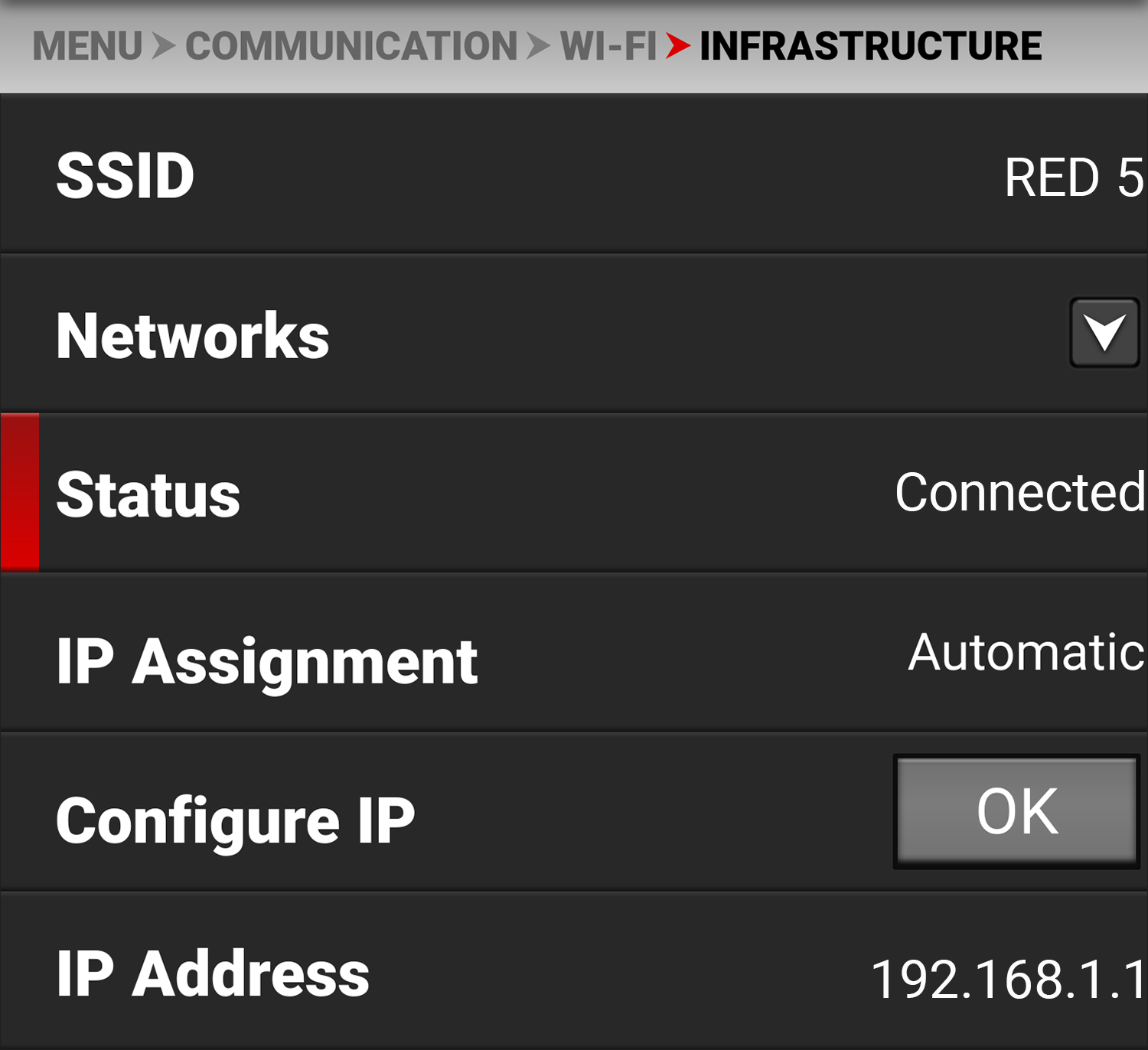

Status

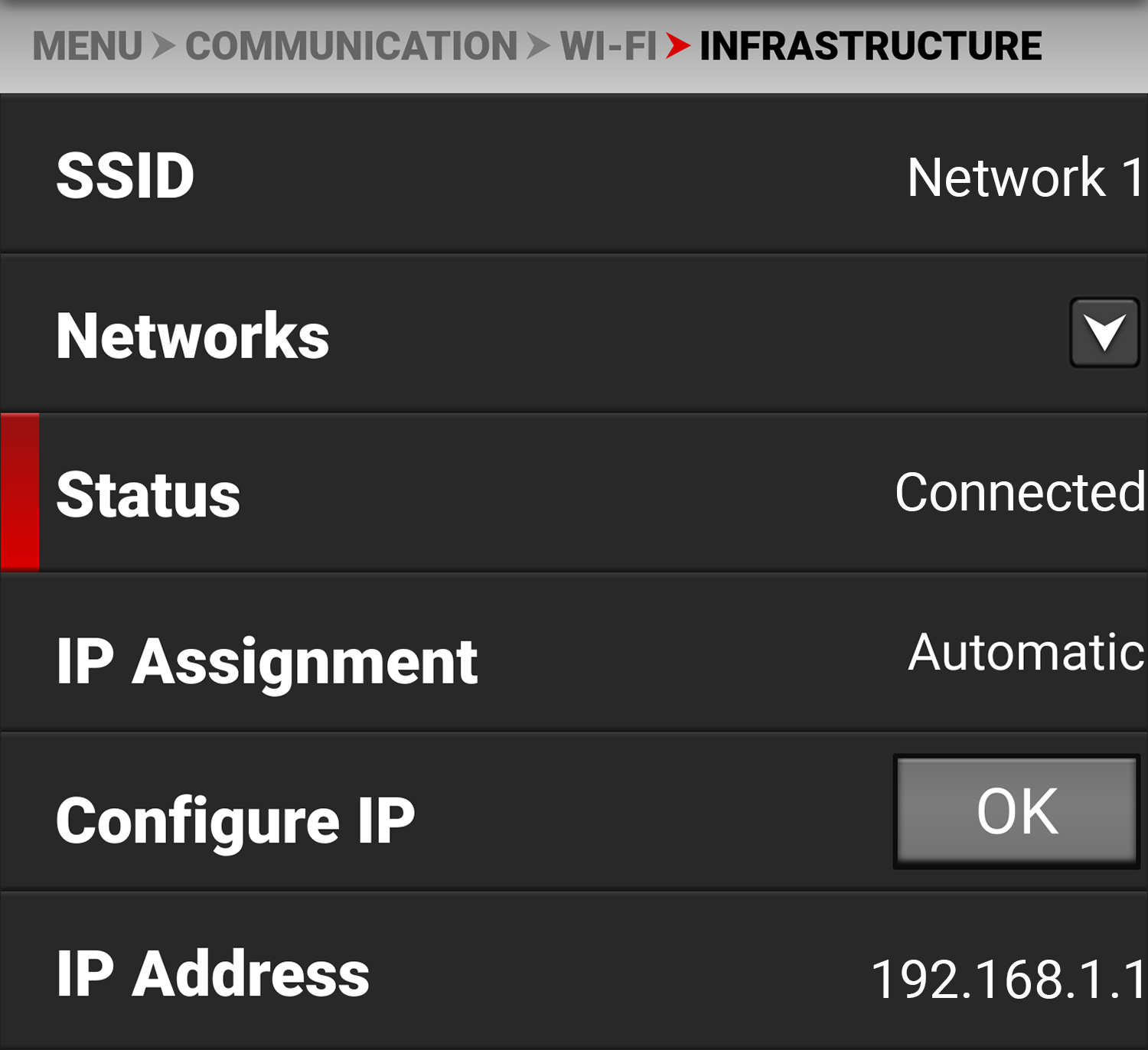

Displays the connection status of the camera to the selected Wi-Fi network.

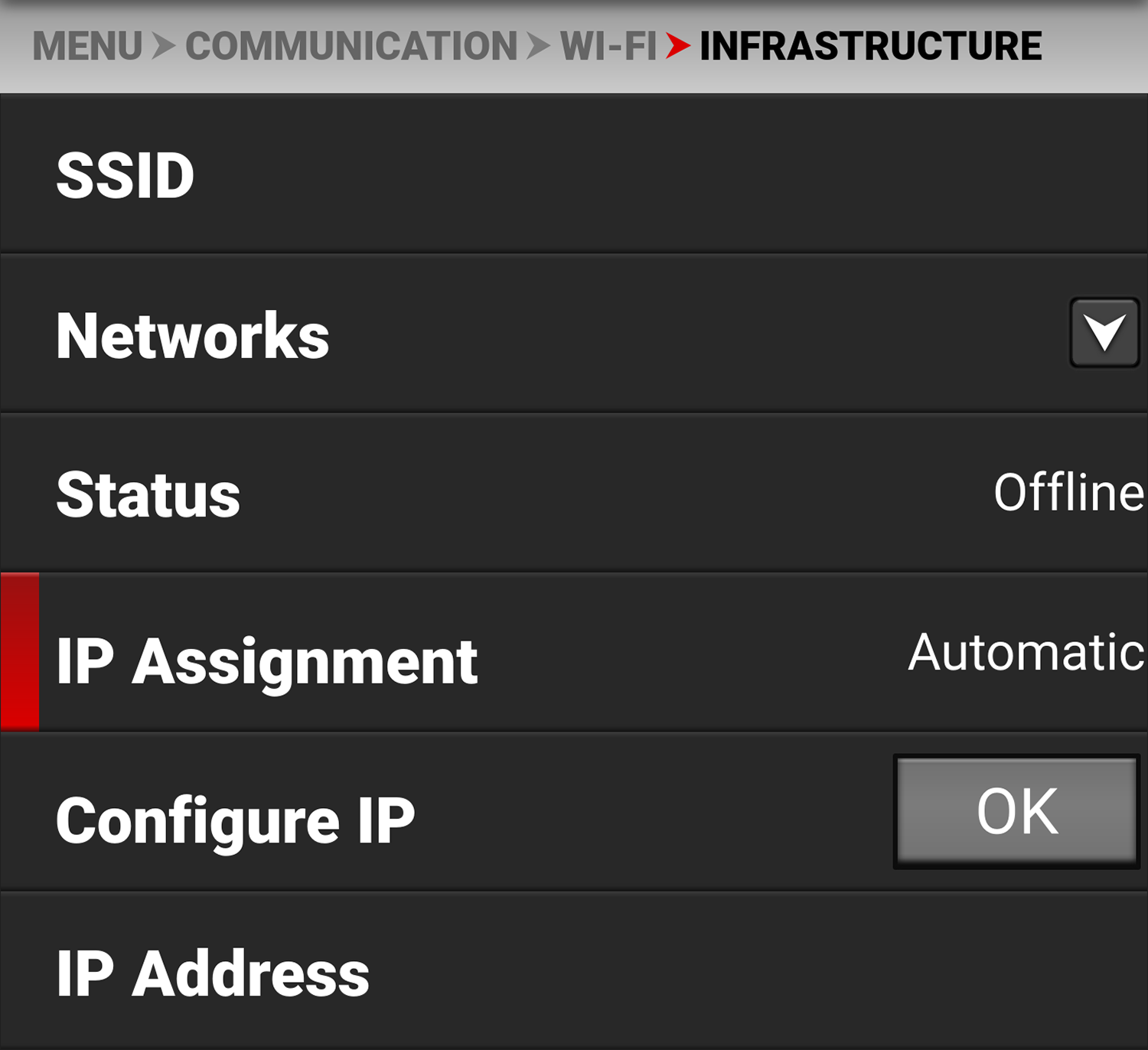

IP Assignment Status

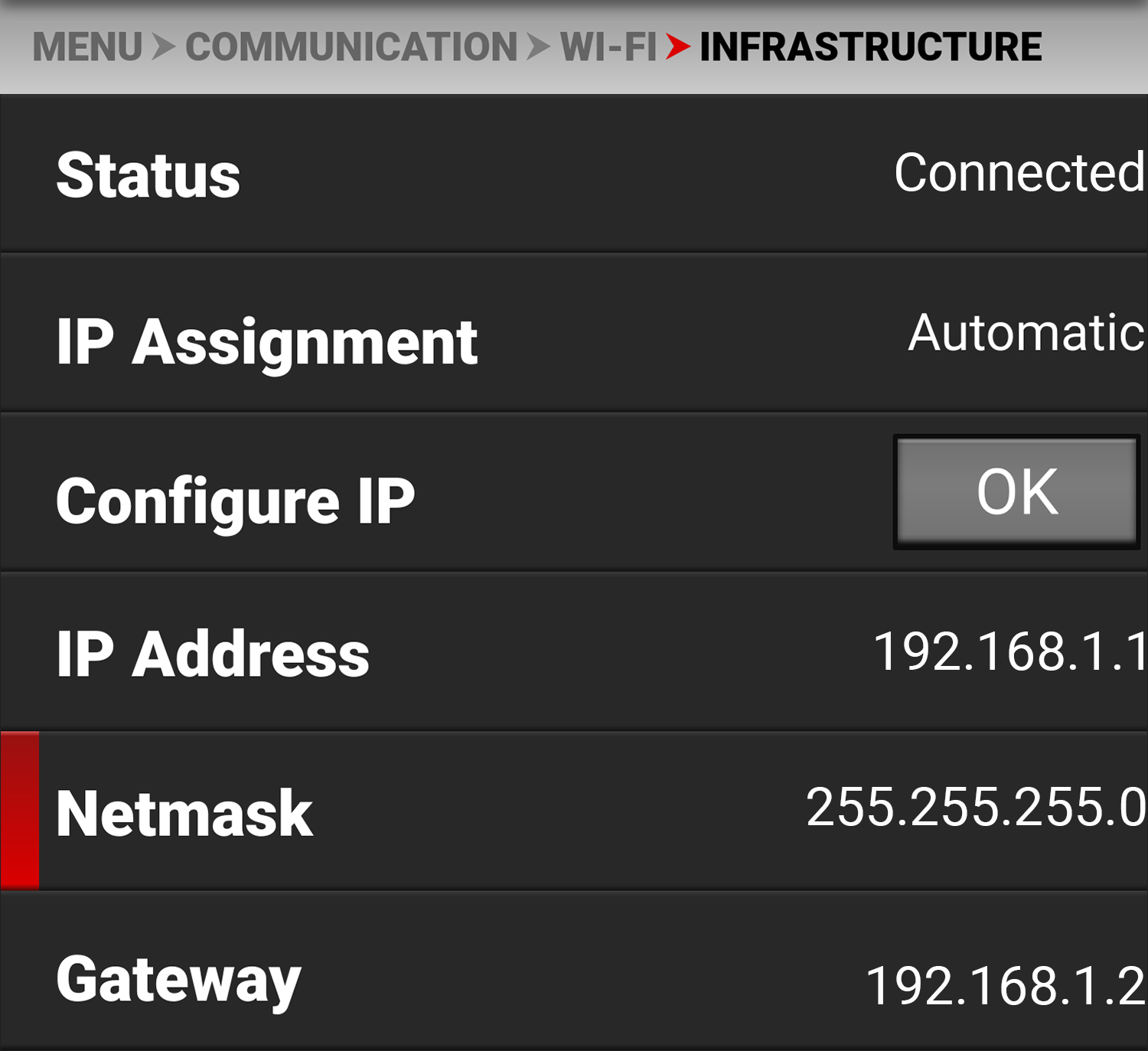

IP Assignment displays the IP assignment mode. In Automatic mode, the camera automatically discovers the Infrastructure IP Address. In Manual mode, you can manually enter the network addresses in the camera.

Configure IP

Tap OK to Open the Infrastructure Configure IP screen.

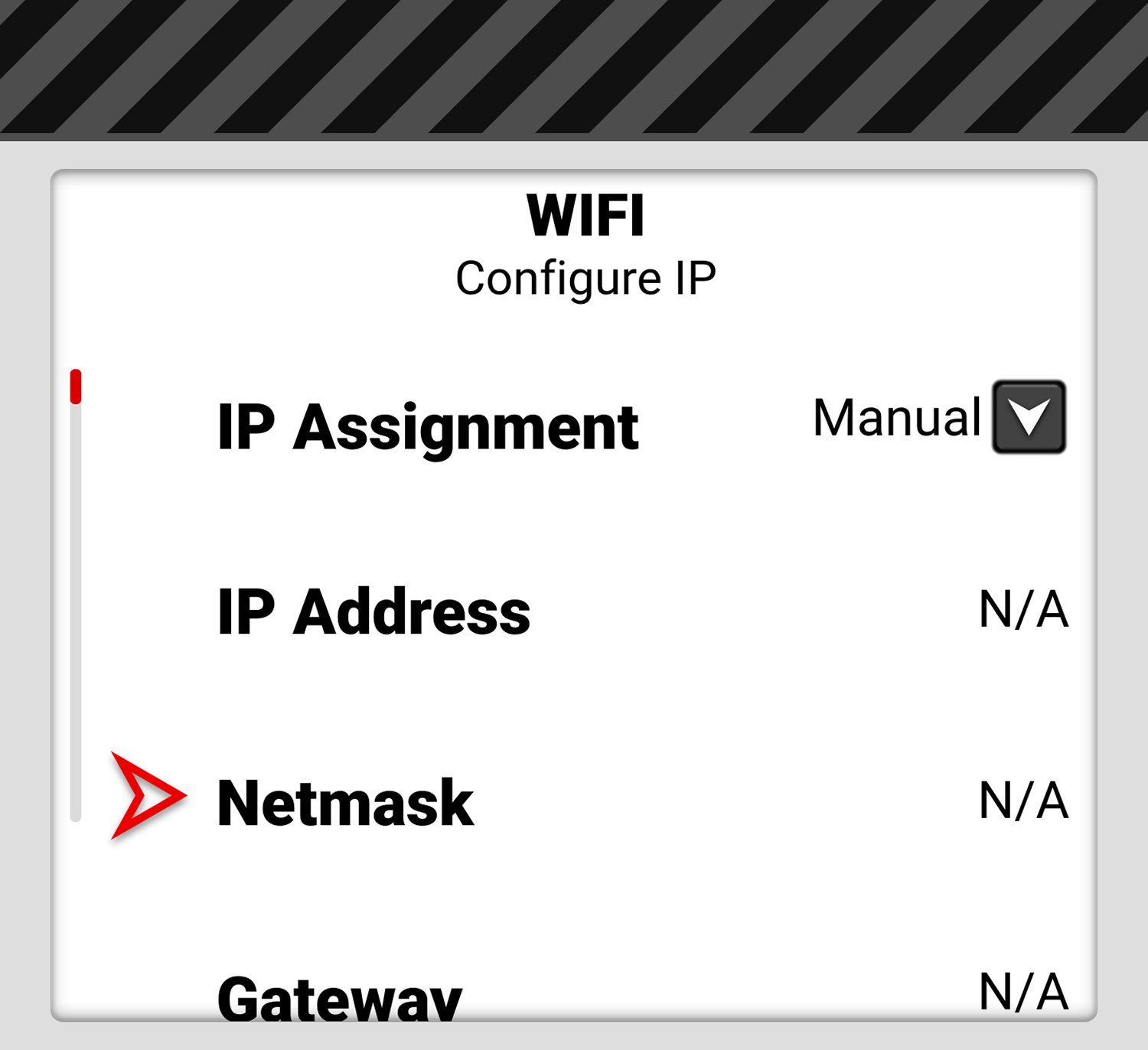

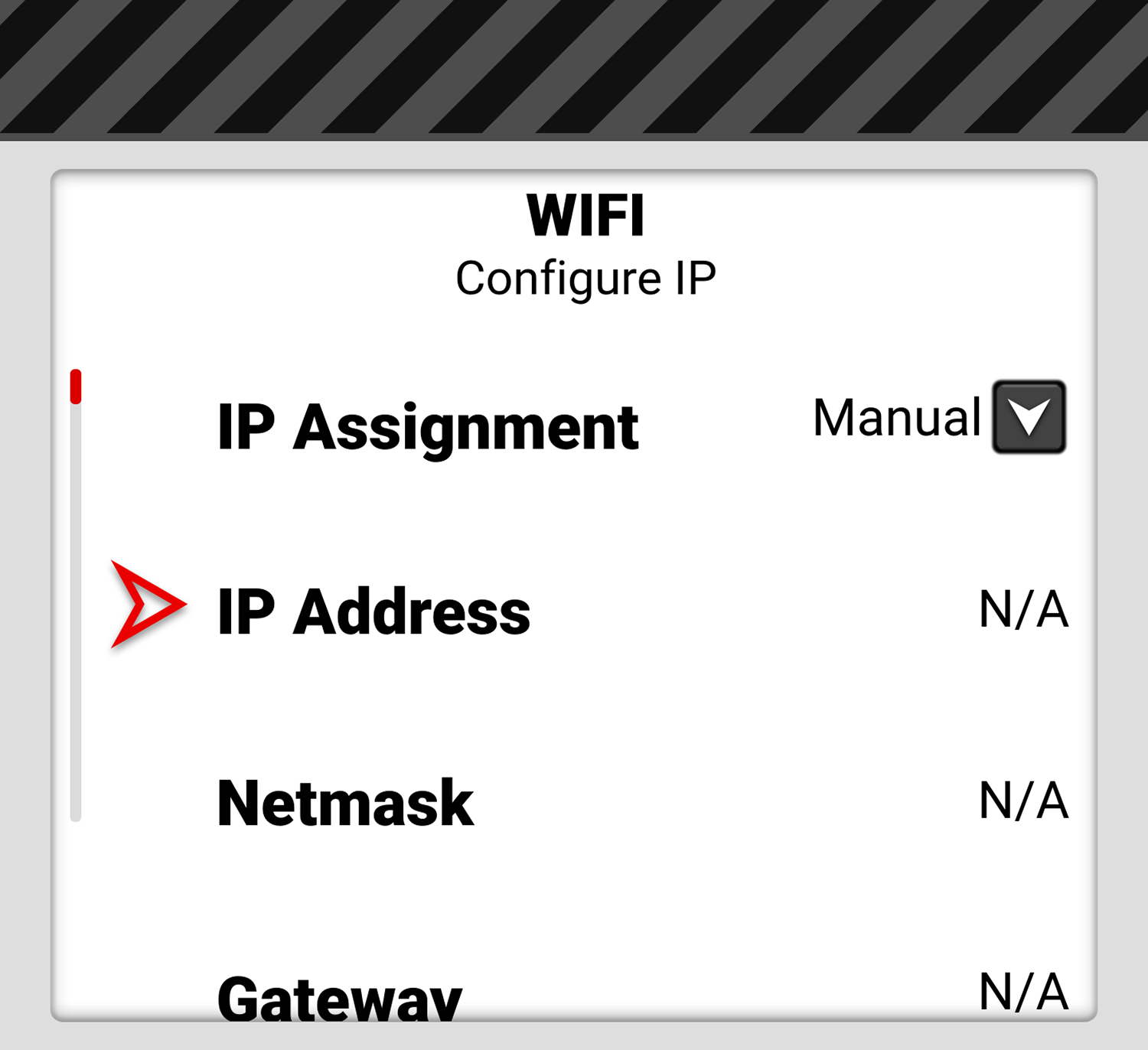

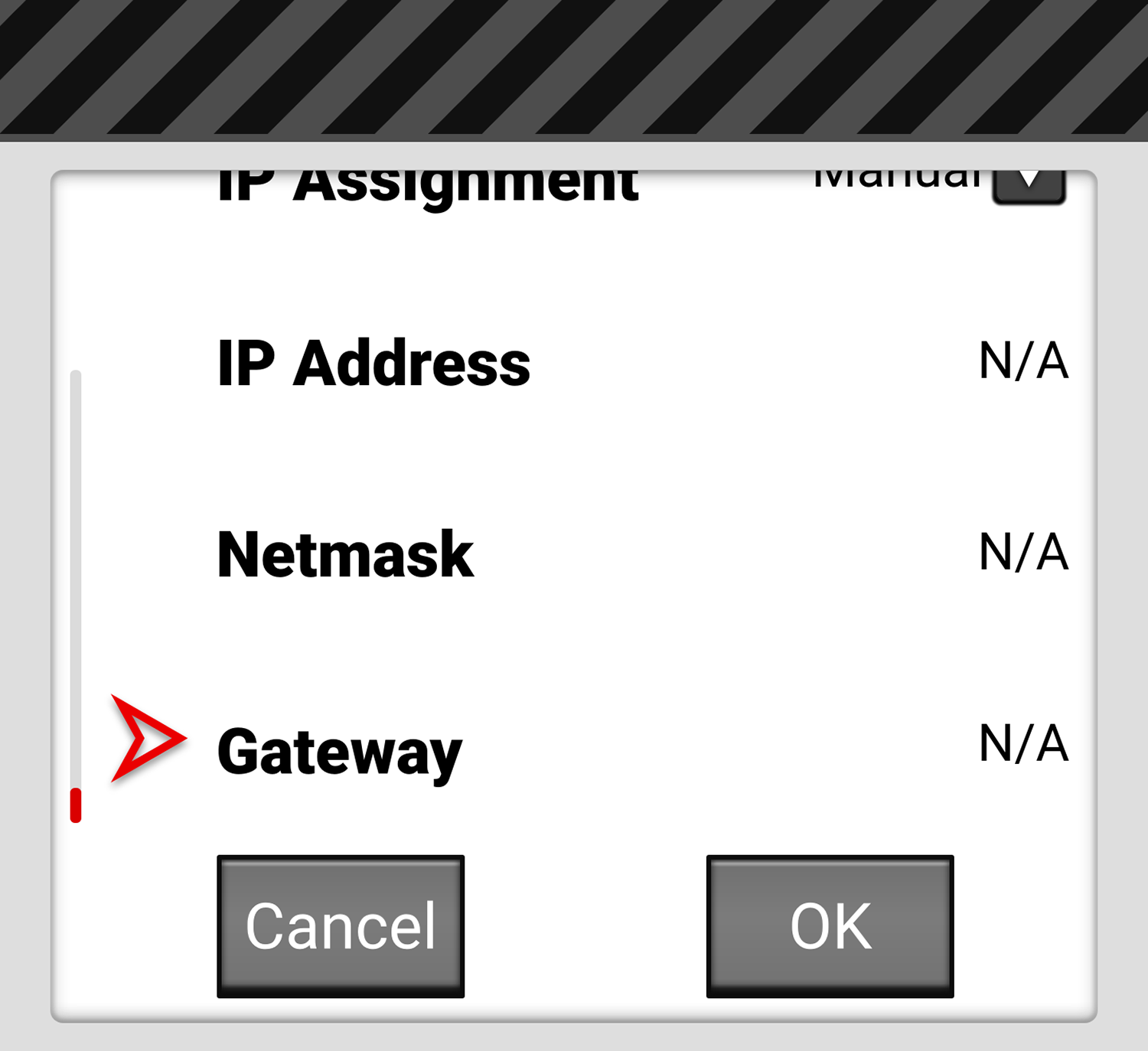

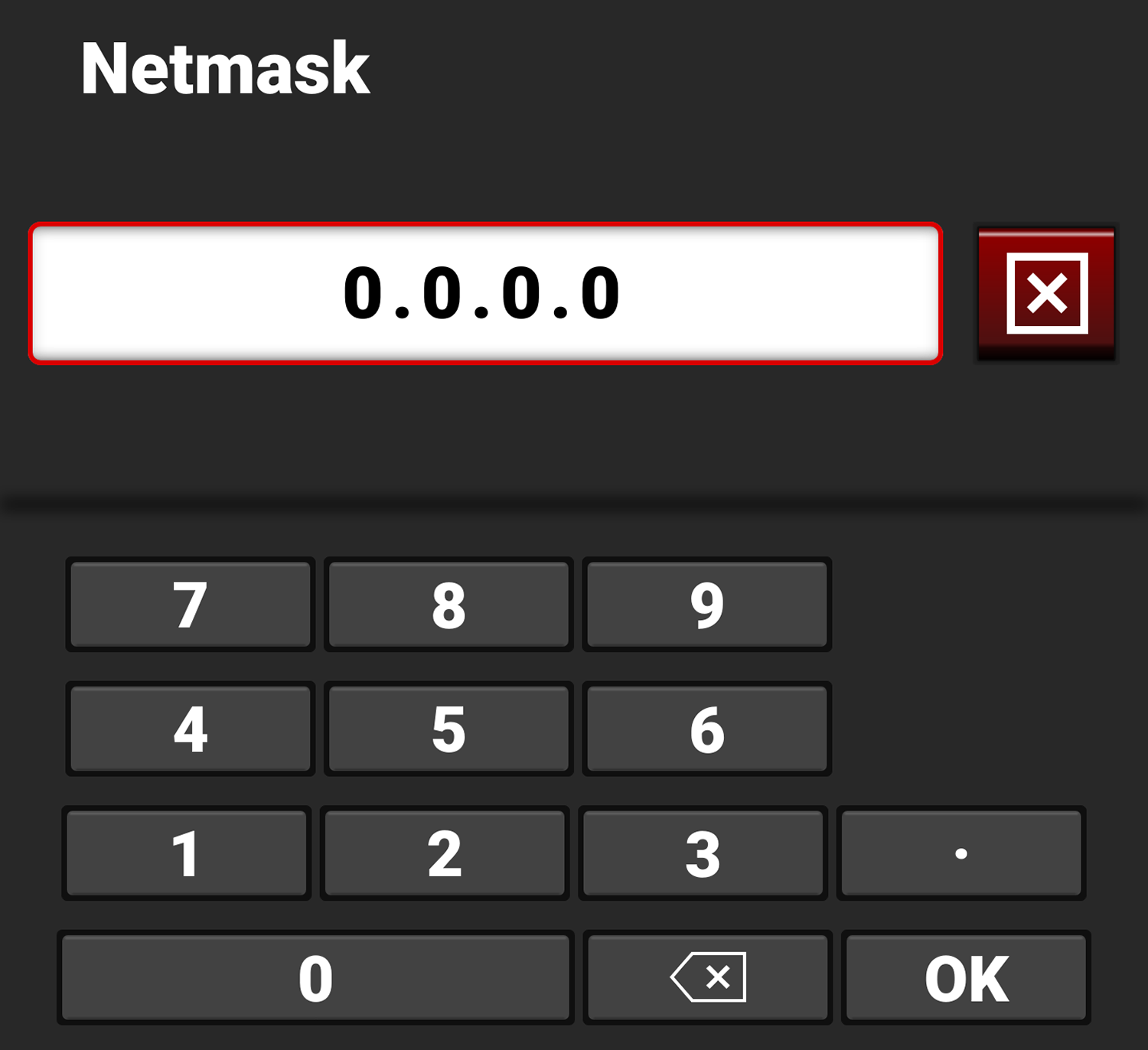

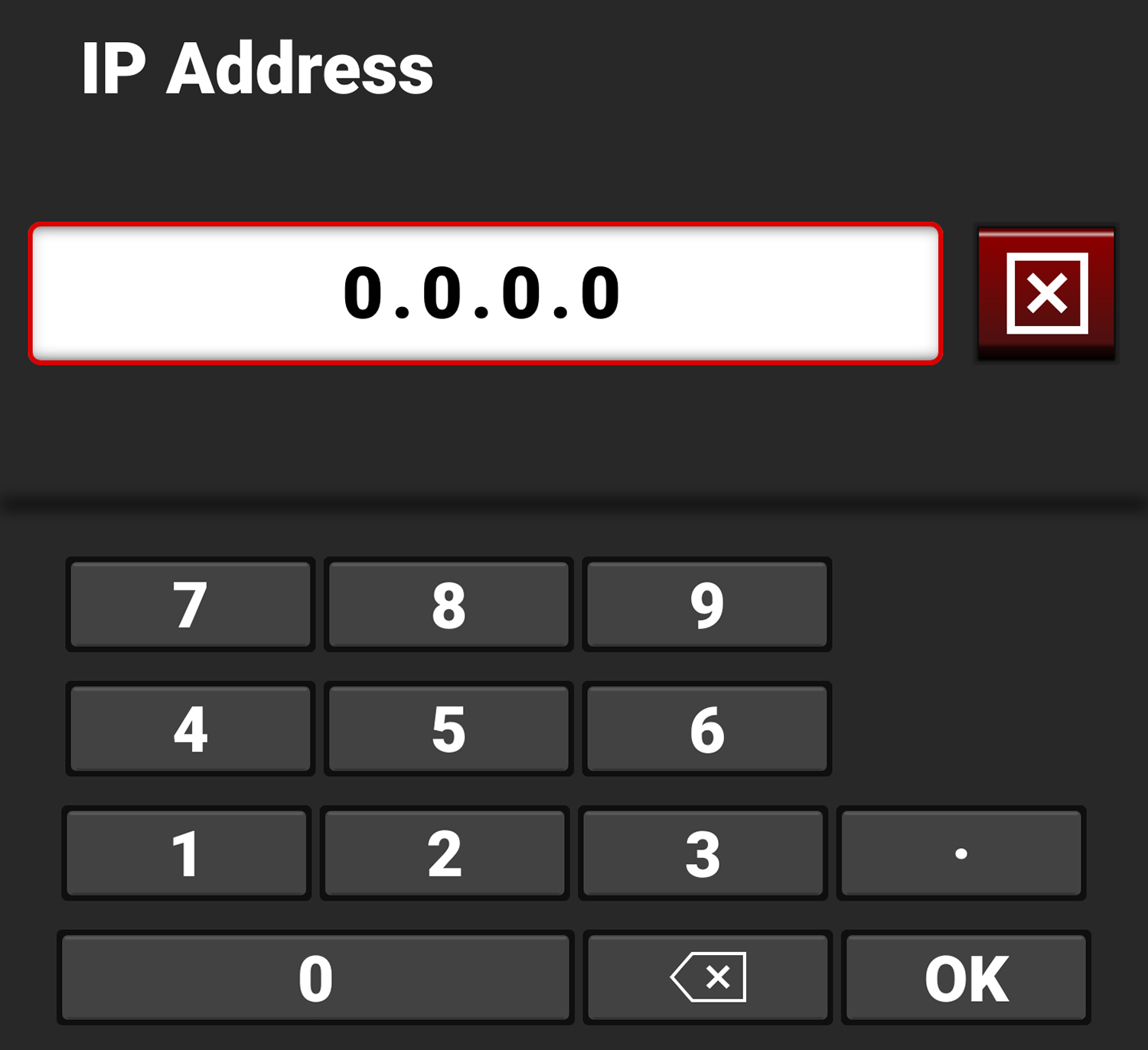

You use the Configure IP screen to select the IP Assignment mode, and to manually enter the IP, Netmask, and Gateway addresses in Manual mode.

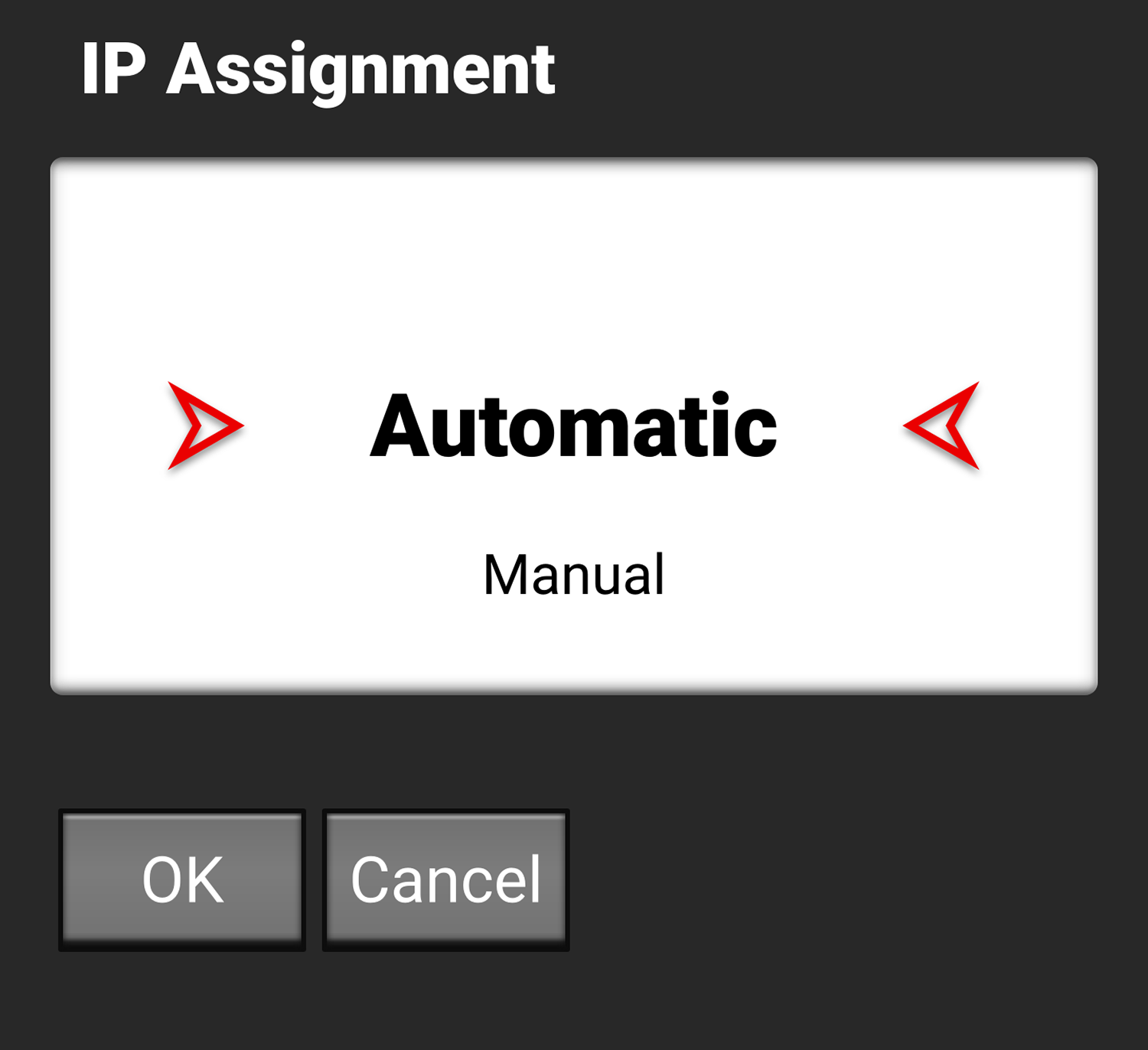

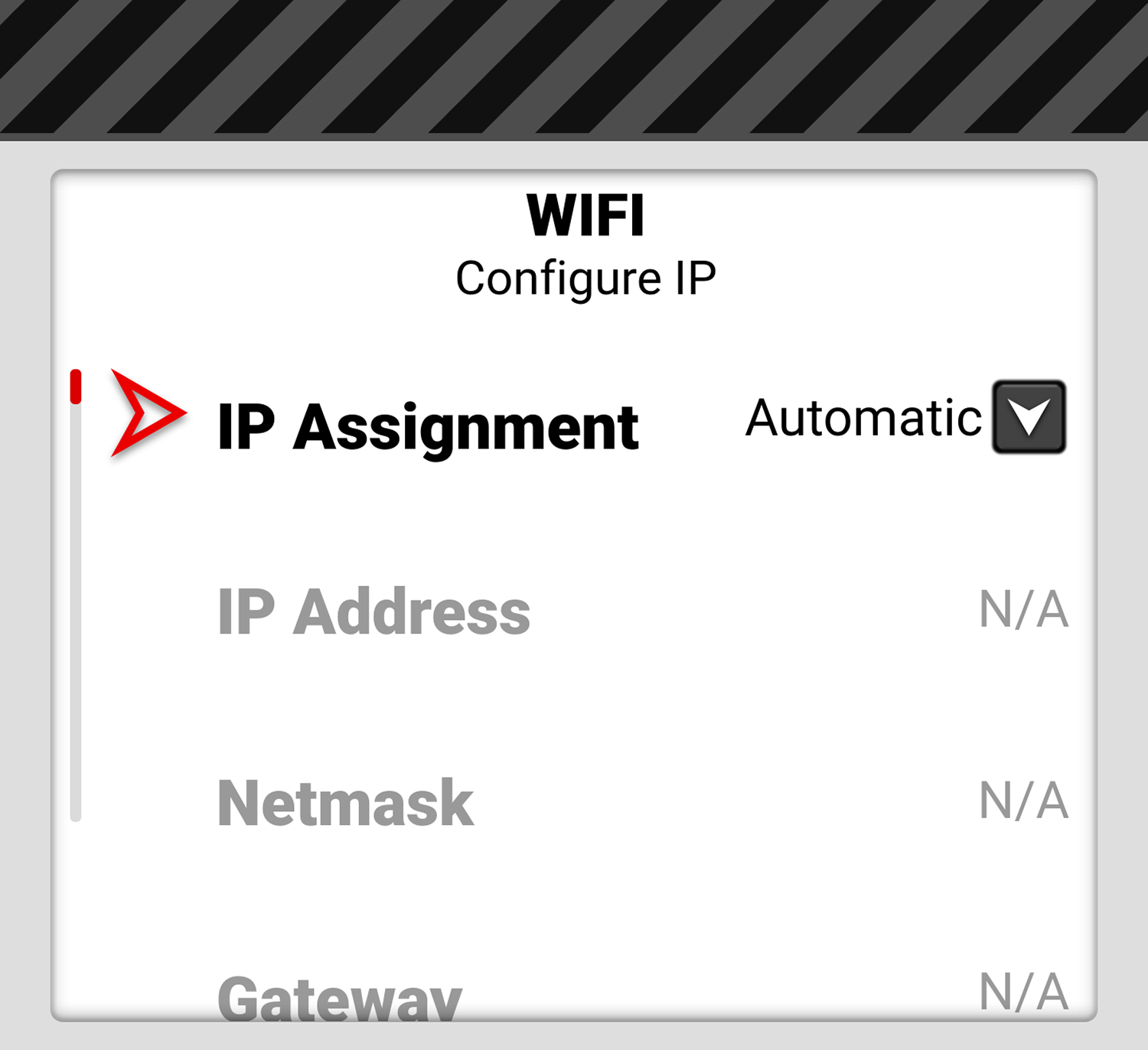

IP Assignment Selection

IP Assignment allows you to select the Infrastructure IP Assignment mode.

The Automatic mode detects the available Infrastructure IP address. The Manual mode allows you to manually enter the desired Infrastructure network addresses.
