KOMODO Link Adaptor

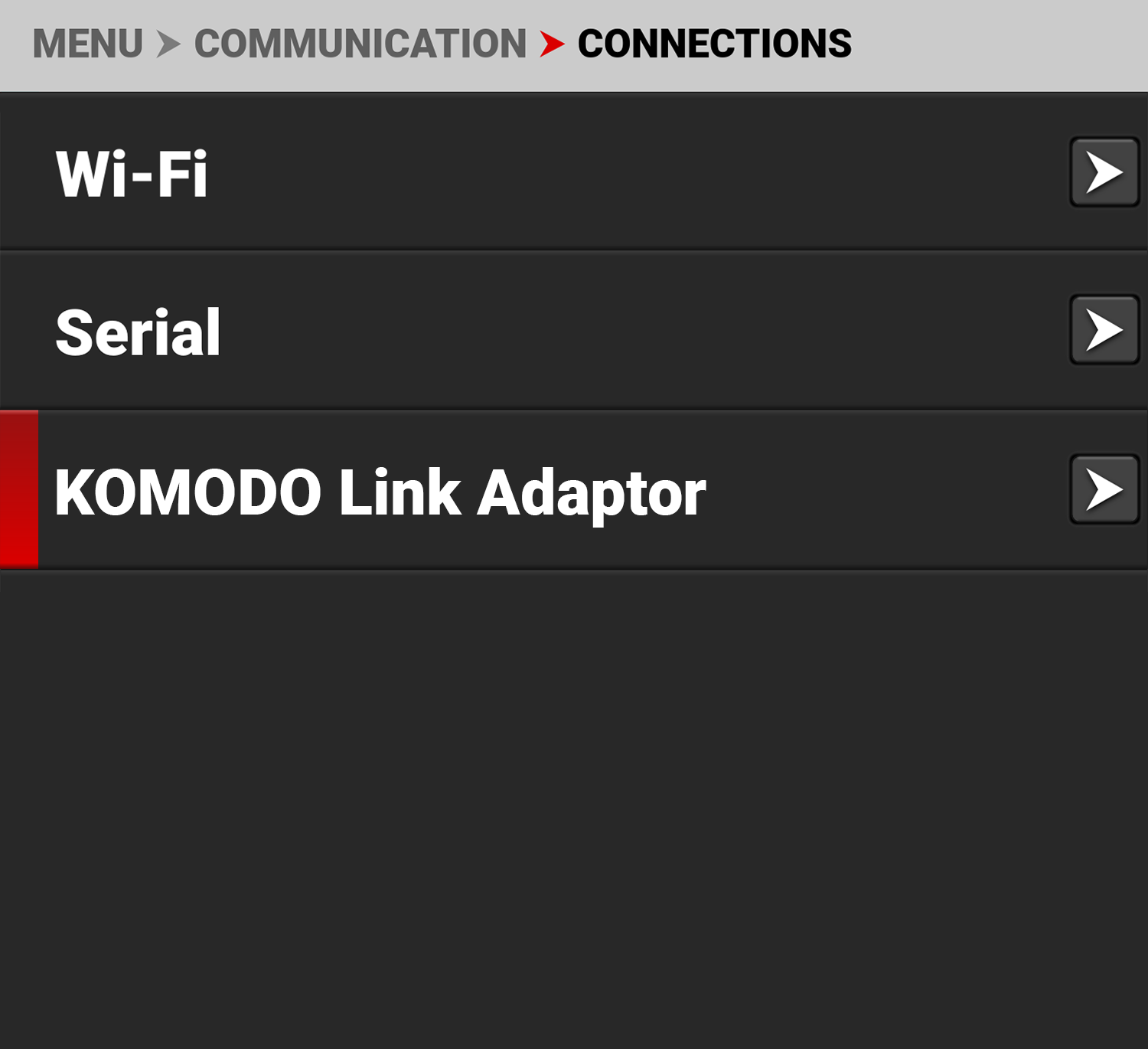

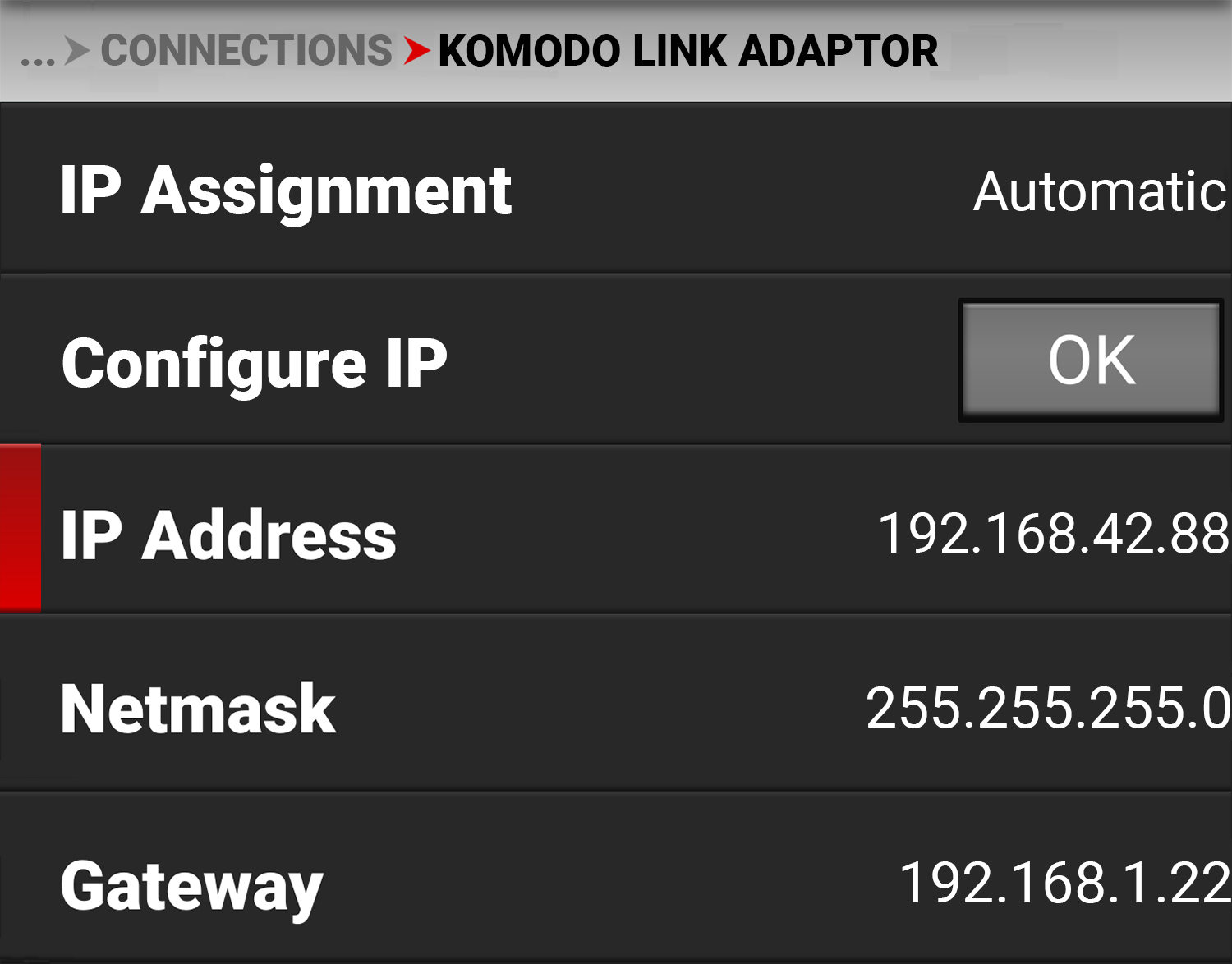

Use the KOMODO Link Adaptor menu to view the IP address of the connected Ethernet, Android or iOS device.
NOTE: This menu item only displays when the KOMODO Link Adaptor is attached to the camera.
The settings you can configure for the KOMODO Link Adaptor include:
|
Item |
|
Details |
|---|---|---|
|

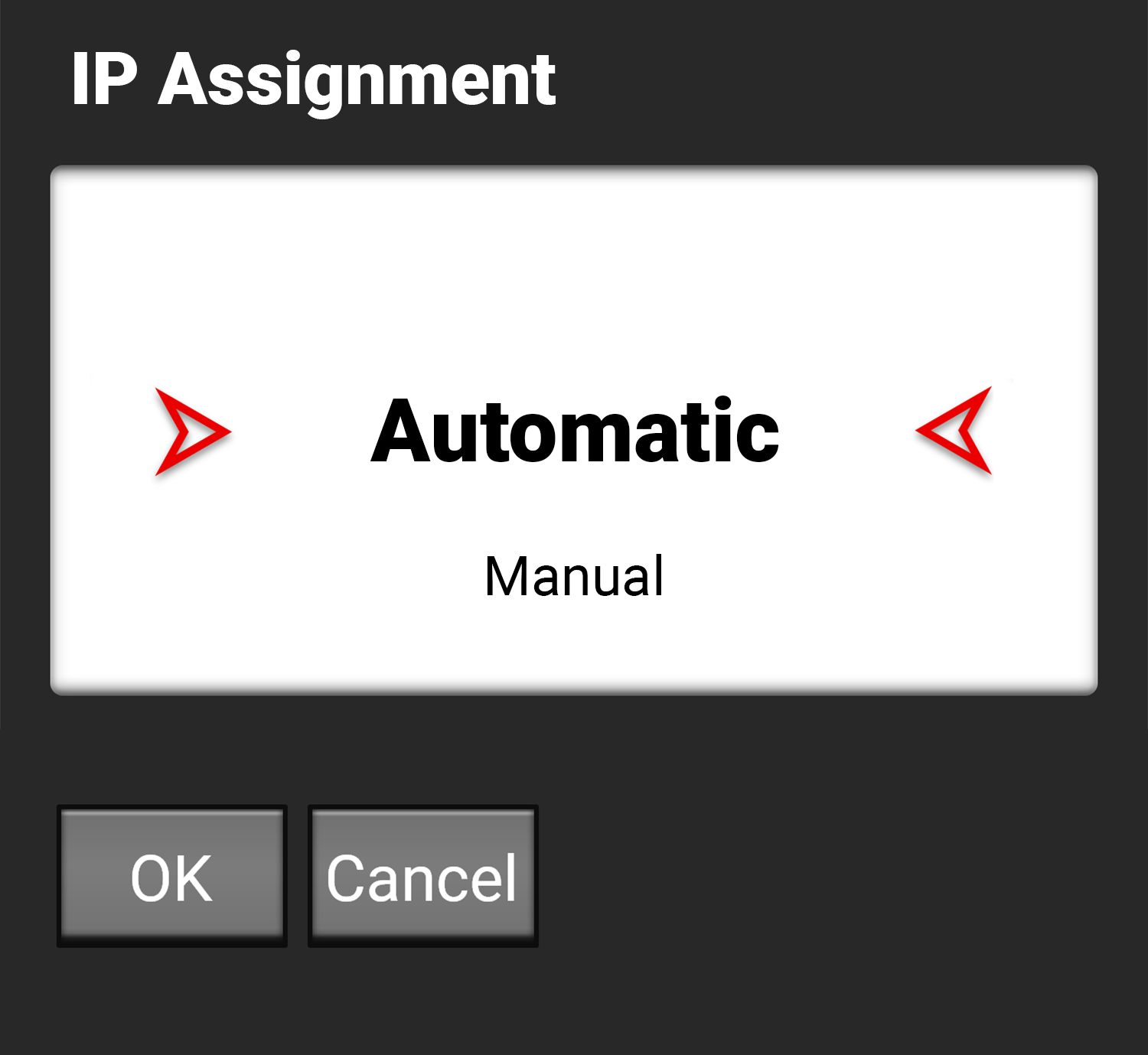

IP Assignment |
|
Displays the IP address assignment method |
|
|
IP Address modes and configuration settings |
|
|
|
View or enter the network IP address |
|
|
|
View or enter the network Netmask |
|
|
|
View or enter the network Gateway |

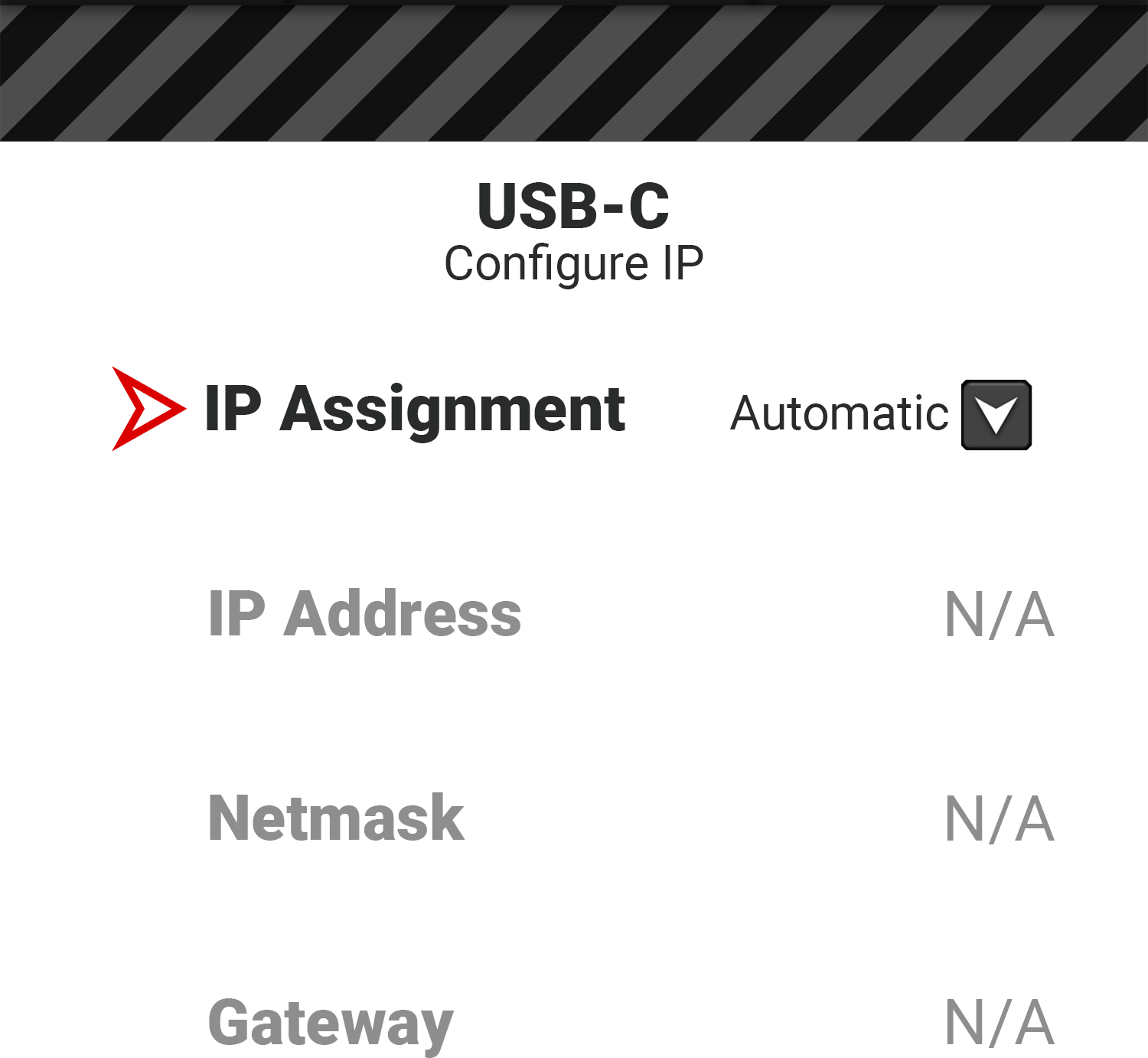

Configure IP
When connected to an Ethernet network, this allows you to automatically detect an IP address or to manually enter an IP address, Netmask address, and Gateway (router) address.

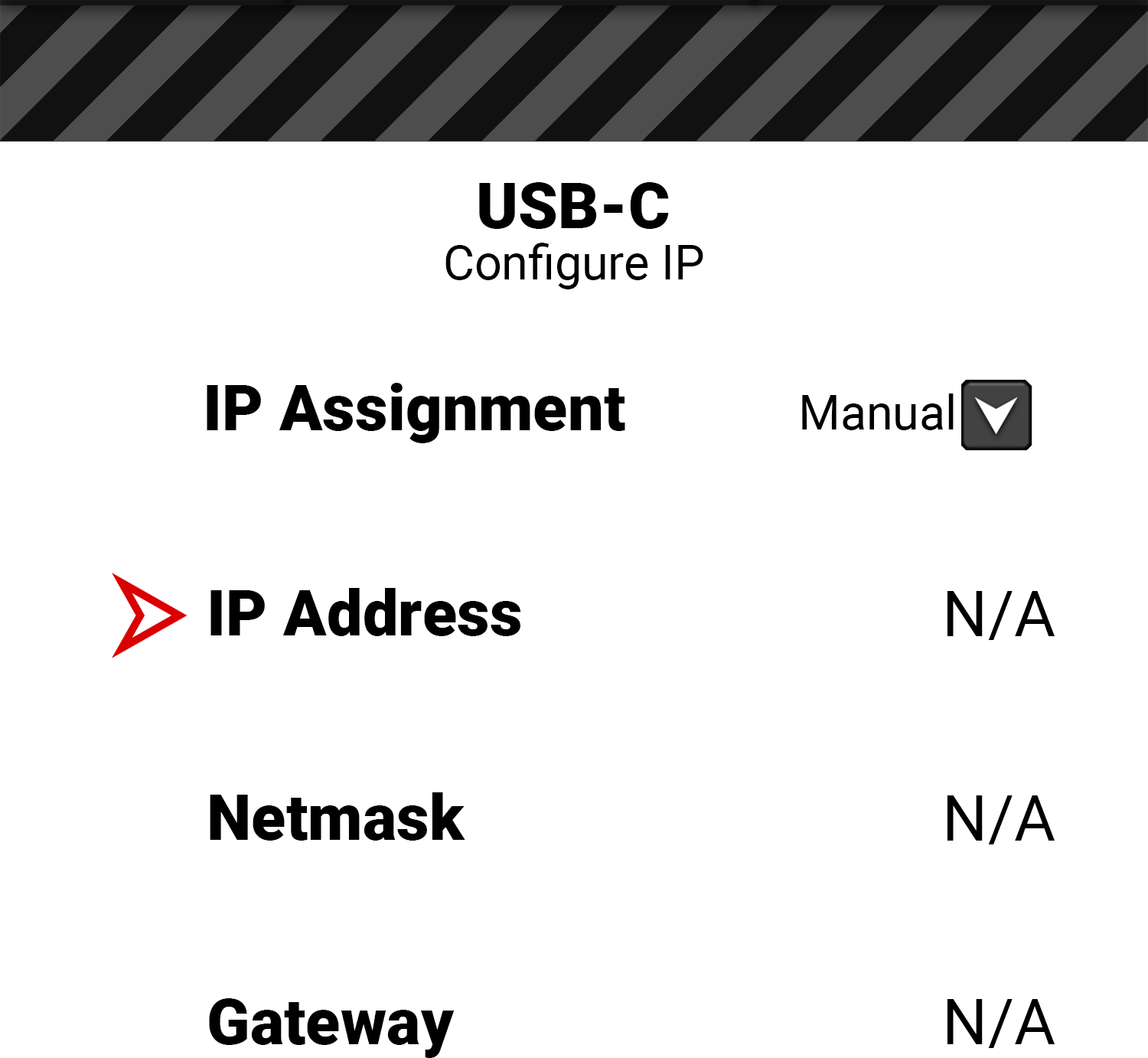

IP Address

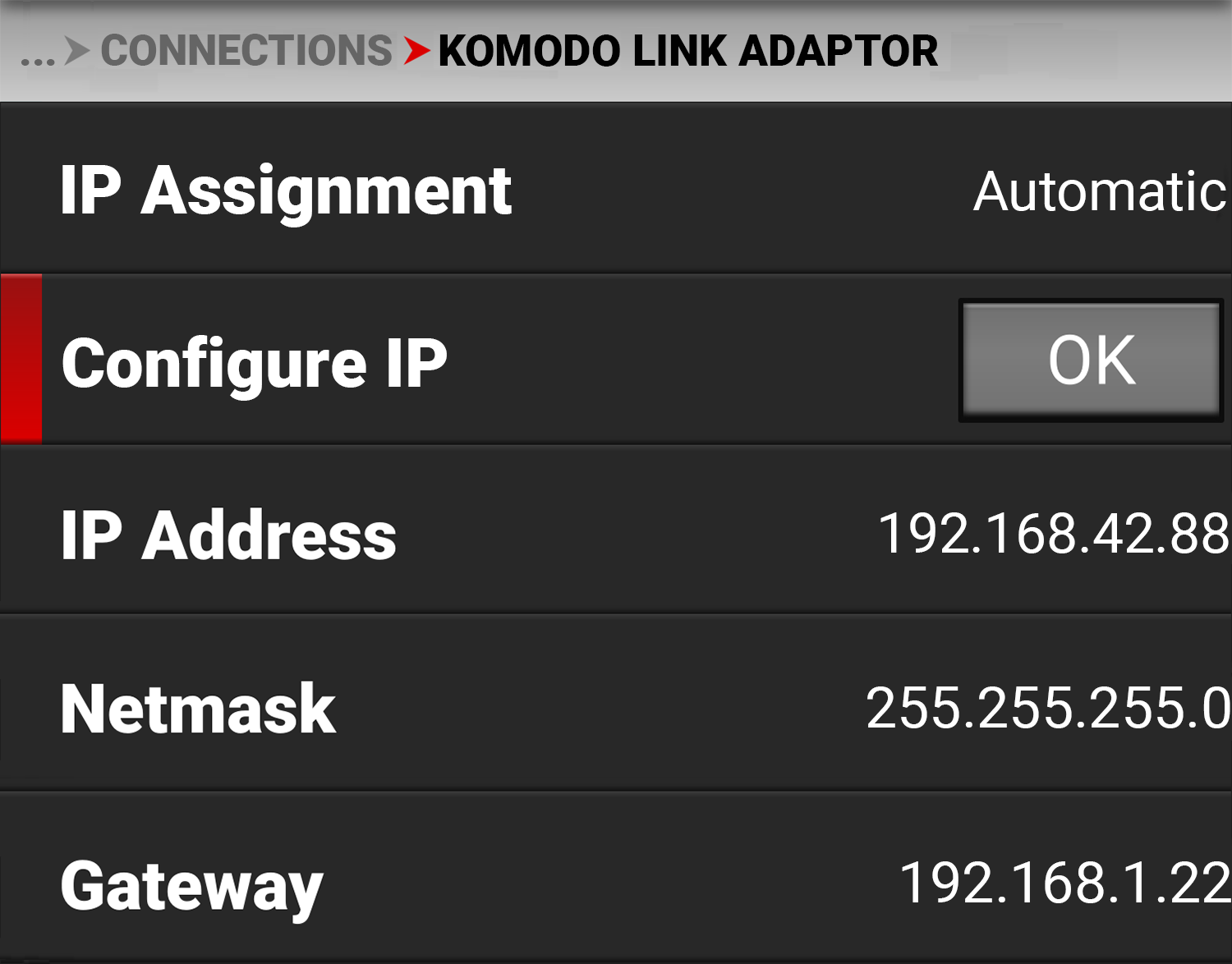

When the link is connected to an Ethernet device and Automatic IP Assignment is enabled, IP Address displays the network IP address.

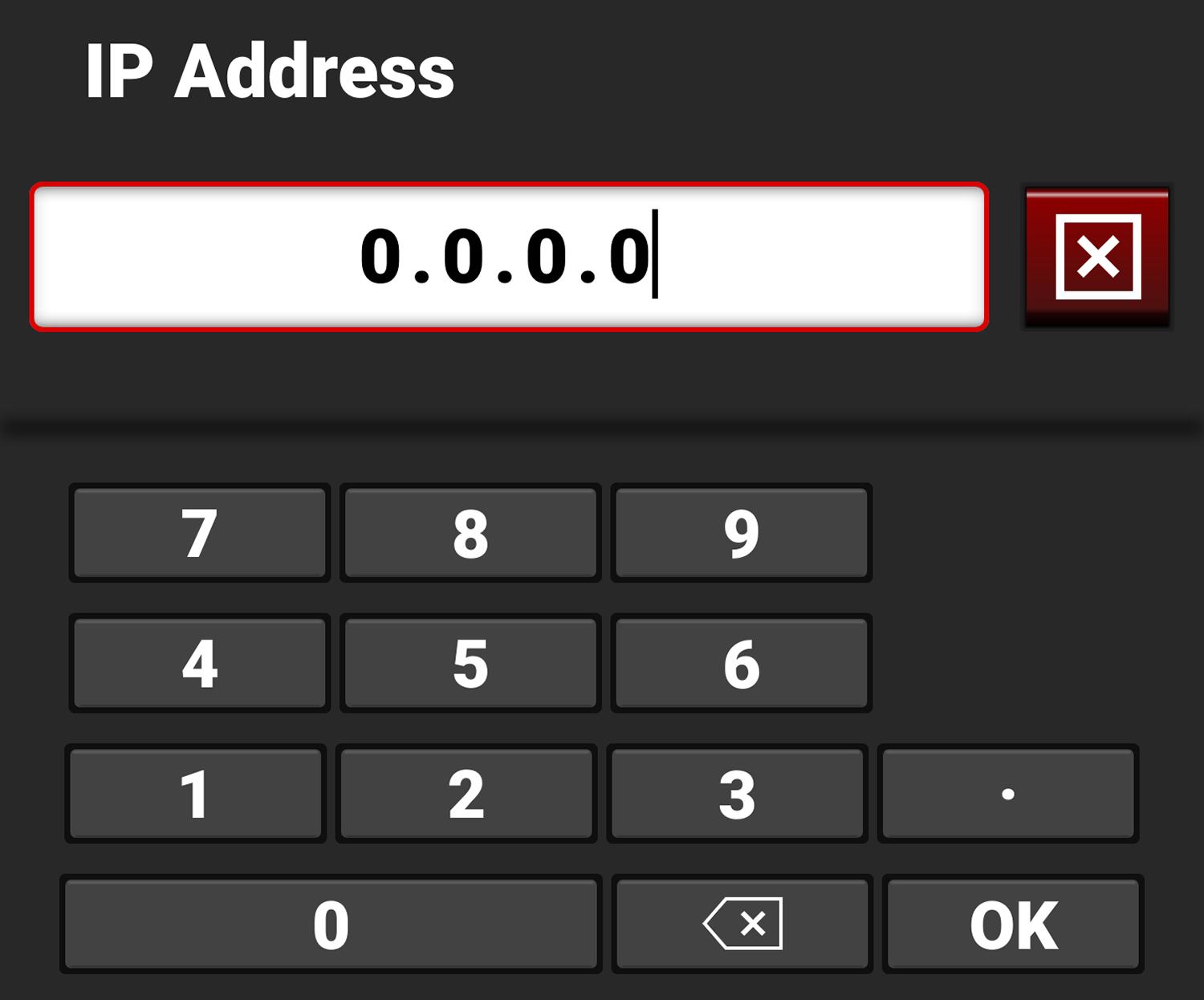

When Manual IP Assignment is enabled, you can select IP Address and manually enter a static IP address.

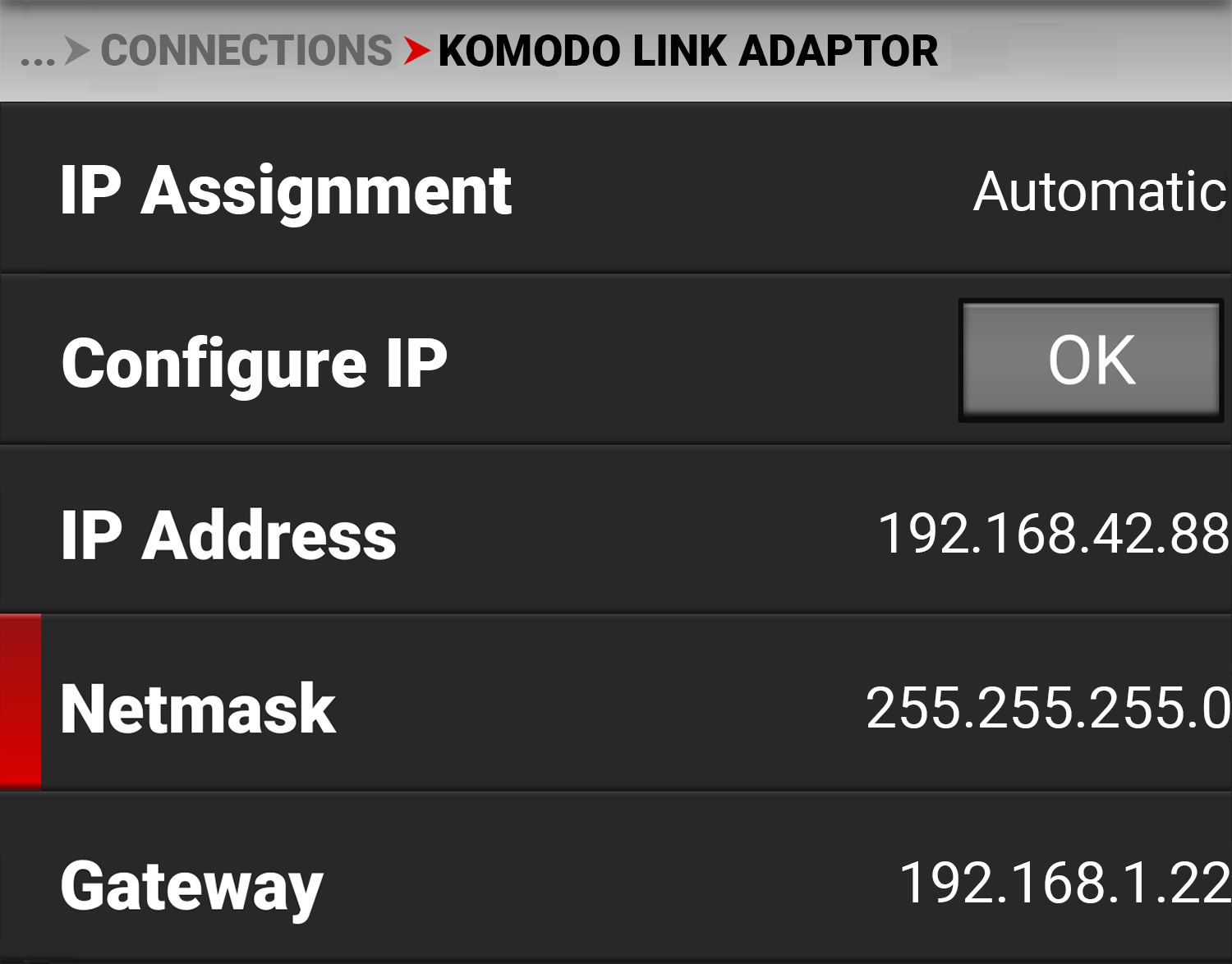

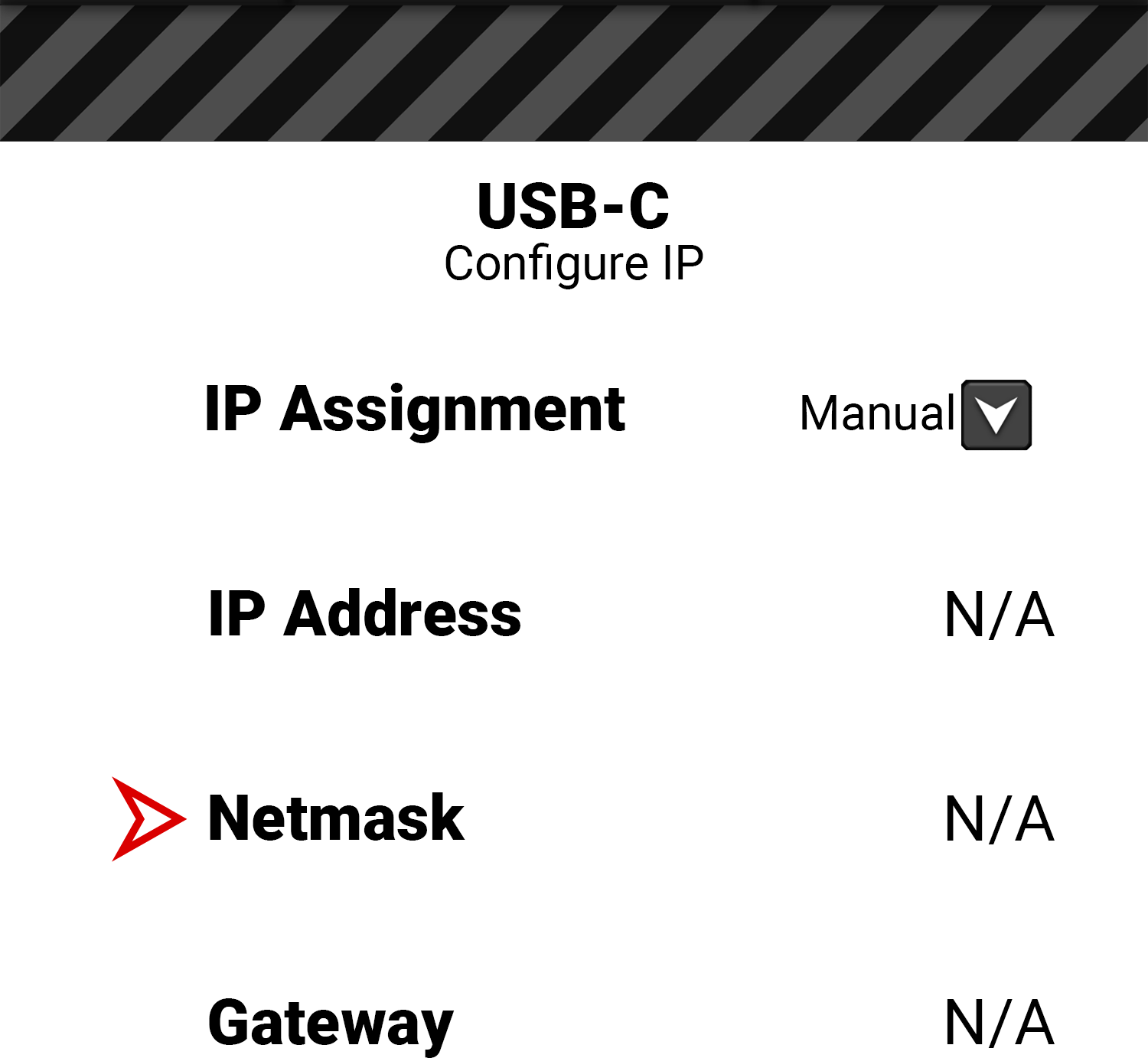

Netmask
When the link is connected to an Ethernet device and Automatic IP Assignment is enabled, Netmask displays the network Netmask address.
When Manual IP Assignment is enabled, you can select Netmask and manually enter a Netmask address.

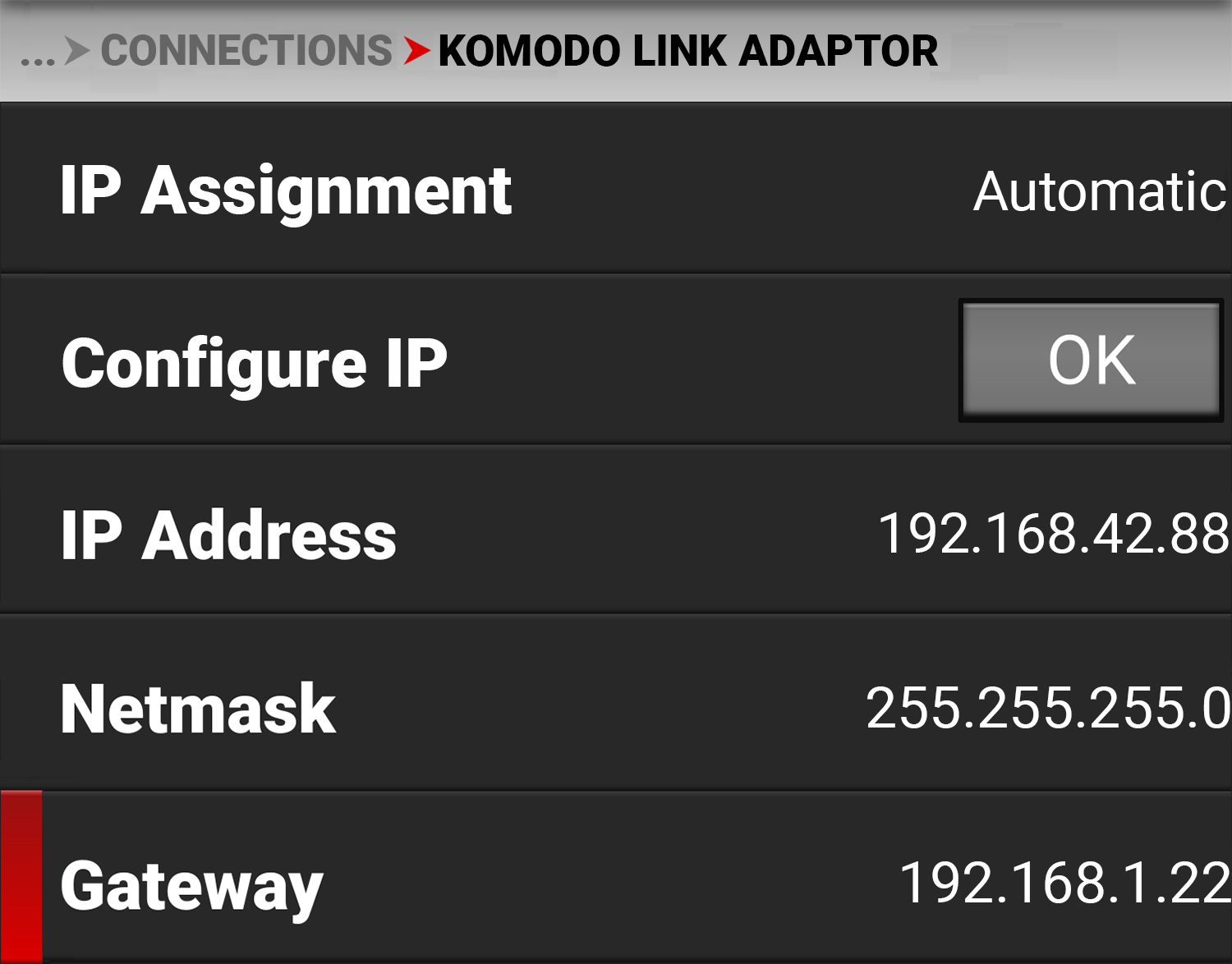

Gateway
When the link is connected to an Ethernet device and Automatic IP Assignment is enabled, Gateway displays the network Gateway address (router address).

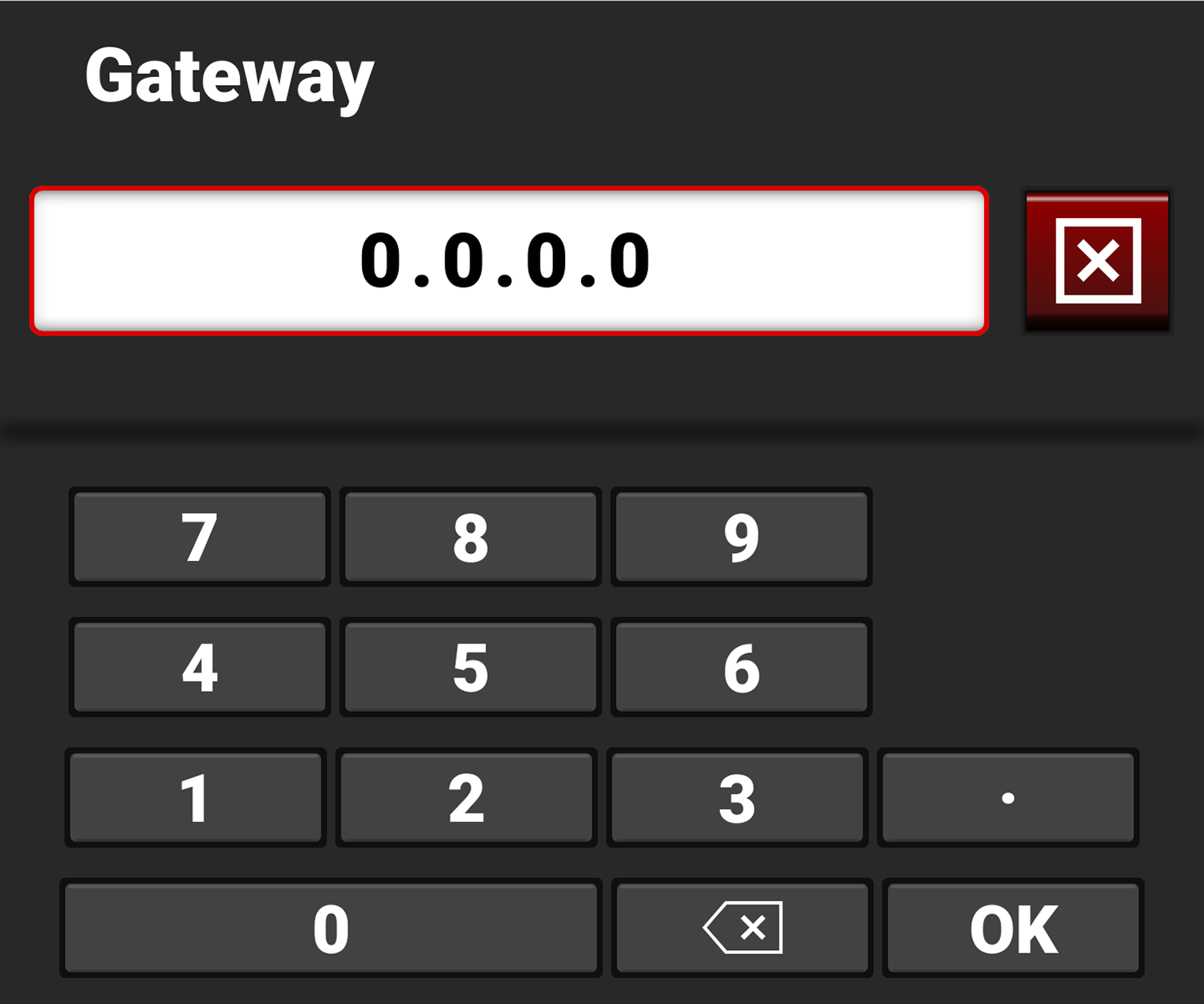

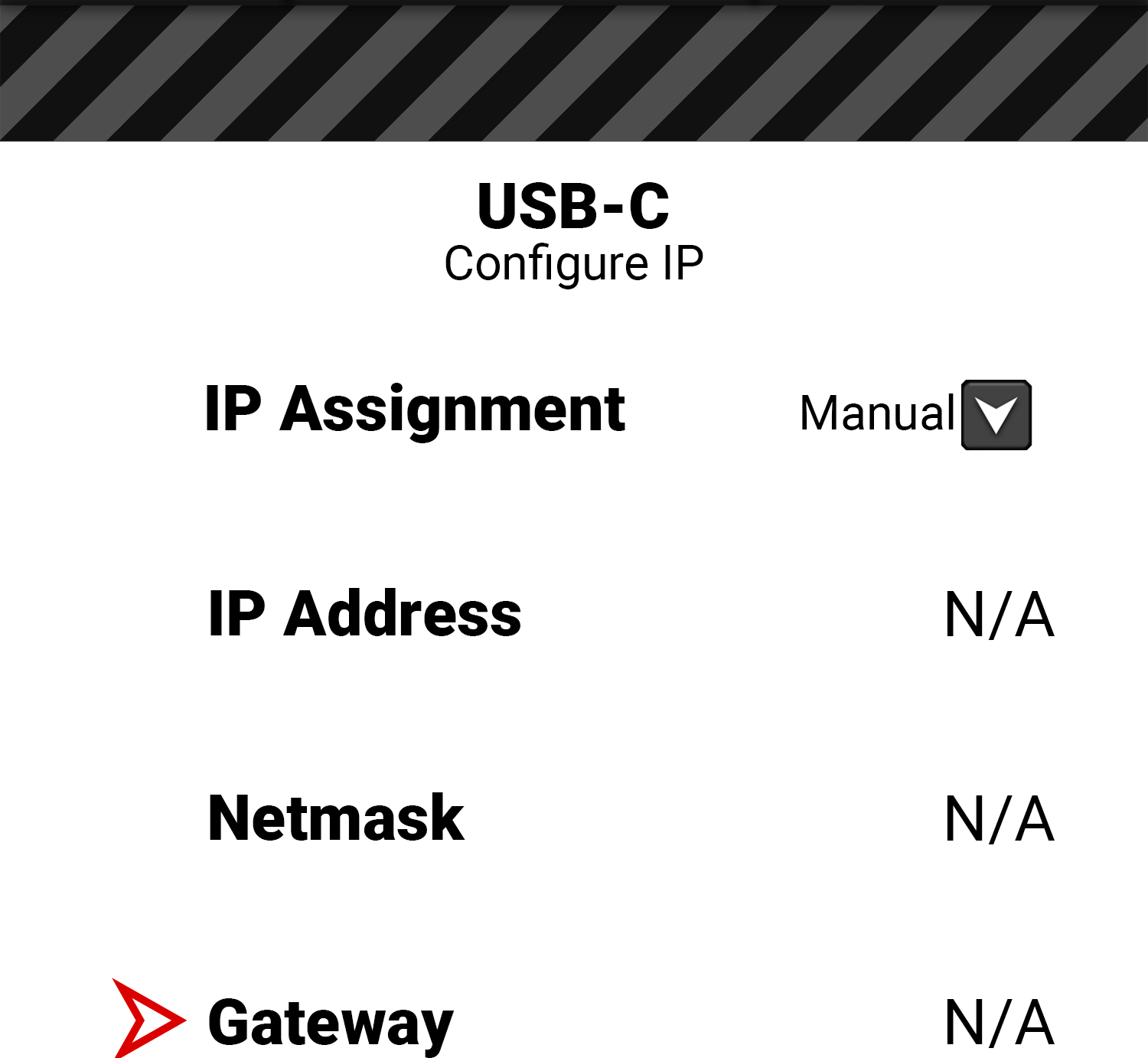

When Manual IP Assignment is enabled, you can select Gateway and manually enter a Gateway (router) address.
For more information, refer to the How To section (KOMODO Link Adaptor).
