KOMODO Expander Module
The KOMODO Expander Module provides extra hardware mounting points and connections for GPI, Genlock, Timecode, and CTRL (RS-232 control).

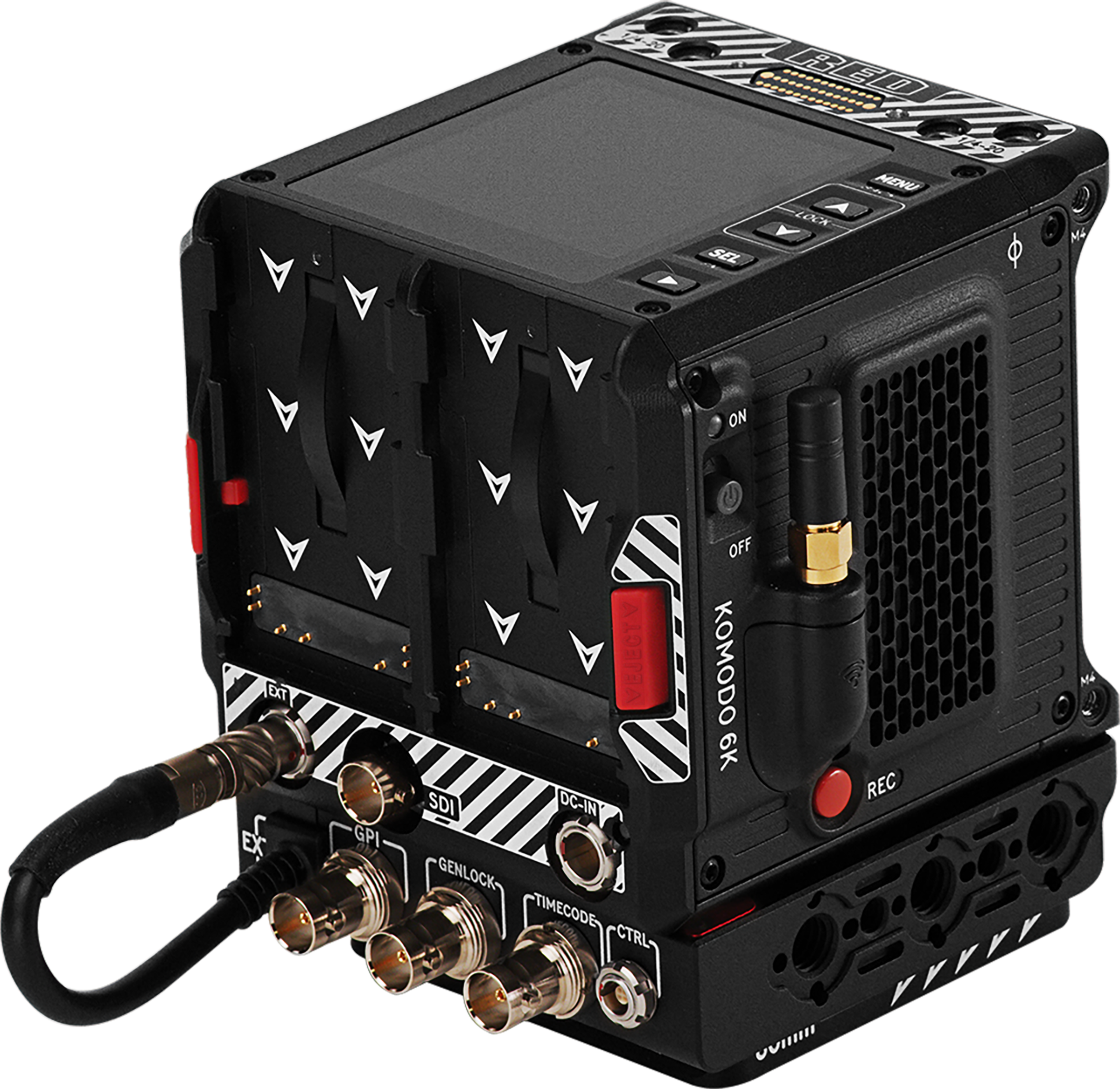

The KOMODO Expander Module connects to the camera through the Extension Port.
|
# |

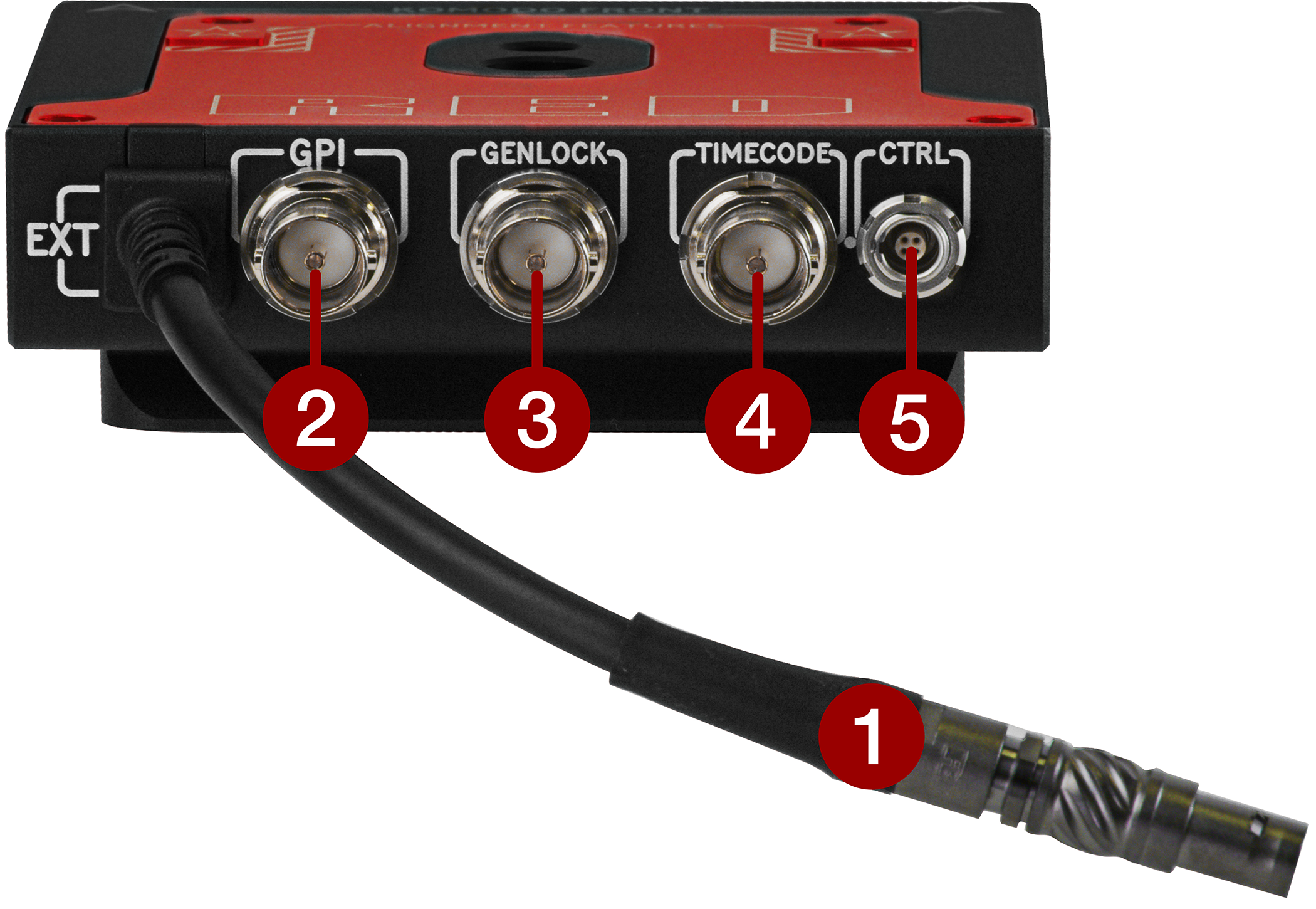

Connector |
Connector Type |
Details |
|---|---|---|---|
|
1 |
Module cable |
9-pin 0B ODU |
Attaches to the back of the Camera Body |
|
2 |
GPI |
BNC |
Connection for remote trigger |
|
3 |
Genlock |
BNC |
Connection for external Genlock device |
|
4 |
Timecode |
BNC |
Connection for external Timecode device |
|
5 |
CTRL |
4-pin 00B ODU |
CTRL (RS-232 Control) port for external RS-232 connection |
