Status Bar

The top of the LCD screen displays the camera status bar.

The Status Bar contains the following button and icons:

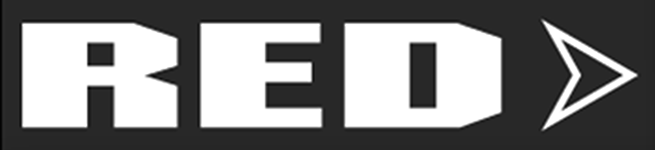

Home / Menu Button

This button toggles the LCD display between the Home screen and the Menu screen. The arrow on the button changes direction when toggled.

Home Screen:



Menu Screen:







CFast Status Icon



Camera Status Icon

This icon displays the status of the CFast 2.0 media card, and it displays the recording time remaining for the current camera settings.

The status displayed includes:

Good

Missing

Incompatible



This icon indicates the state of the camera hardware. The different icons and their corresponding status include:

Good

Overheating Warning

Overheating

Shutting Down

FTPS Activity Icon



Temperature / Exposure Icon

This icon indicates the state of FTPS data transfer.

Gray indicates that the FTPS is not transferring data.

Green indicates that the camera is transferring FTPS data.



This icon displays the temperature (T) and exposure (E) calibration indicators.

•  When T is yellow or red, it indicates that the camera requires sensor re-calibration.

•  When E is yellow or red, it indicates that the camera requires sensor re-calibration.

Refer to Calibrating the Sensor.

LCD Lock Icon



Timecode Icon

This icon indicates the state of the LCD Lock. The states include:

Gray and open indicates that the camera LCD is unlocked.

White and closed indicates that the camera LCD is locked.



This icon indicates the state of the Timecode generator connection.

Gray indicates that no Timecode generator signal is detected.

Green indicates that the Timecode source is connected and jammed.

Red indicates that the Timecode source is connected and not jammed.

White indicates that the Timecode source is jammed and not connected.

Yellow indicates that the Timecode source is cross-jammed (at a different Project Time Base).

Wi-Fi Icon



Genlock Icon

This icon indicates the state of Wi-Fi connection.

Gray and empty indicates that no Wi-Fi signal is detected.

White bars indicate that Wi-Fi signal is detected (Infrastructure).

White antenna indicates that Wi-Fi signal is broadcasting (Ad-hoc).



This icon indicates the state of the Genlock connection.

Gray indicates that no Genlock signal is detected.

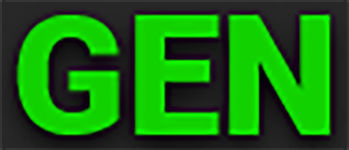

Green indicates that the camera is receiving and is locked to a Genlock signal.

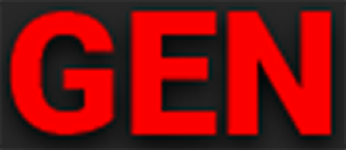

Red indicates that the camera is receiving and is not locked to a Genlock signal.

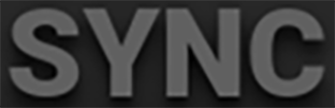

SYNC Icon



DC-In Icon

This icon indicates that the Timecode and Genlock signals are synchronized to the camera's frames per second (FPS) settings.

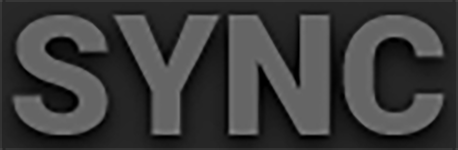

Gray indicates that no synchronization is detected.

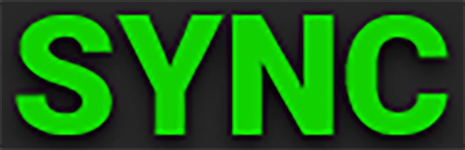

Green indicates that the camera's sensor is synchronized with Timecode and that the camera's output is synchronized with Genlock.

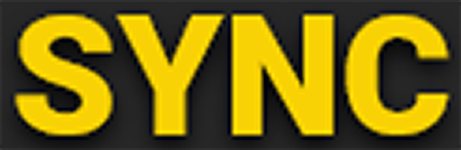

Yellow indicates that the camera's sensor is NOT synchronized with Timecode and that the camera's output is synchronized with a single camera or a Genlock signal.





This icon indicates the state of DC power connection.

Gray indicates that no DC power is connected.

Green indicates that the camera is receiving DC power.

3D LUT Icon



Battery Icon

This icon indicates the activation status of 3D LUTs.

Gray indicates that no 3D LUTs are in use.

White indicates that the camera is using a 3D LUT.



This icon indicates the state of the battery connection and charge level.

Gray indicates that no battery is connected.

White indicates that the battery is connected and green shows the relative level of charge remaining.

Yellow indicates 10 minutes of power remaining.

Red indicates less than 5 minutes of power remaining.

Gray question mark indicates no communication with the battery and no power.

White question mark indicates no communication with the battery and power.

Gray exclamation point indicates error communicating with the battery and no power.
