False Color

Use False Color to configure the False Color tool settings.

The False Color tool settings you can configure include:

Items	Details
Enable	Enable or disable the False Color tool modes
False Color Mode	Select the False Color tool mode

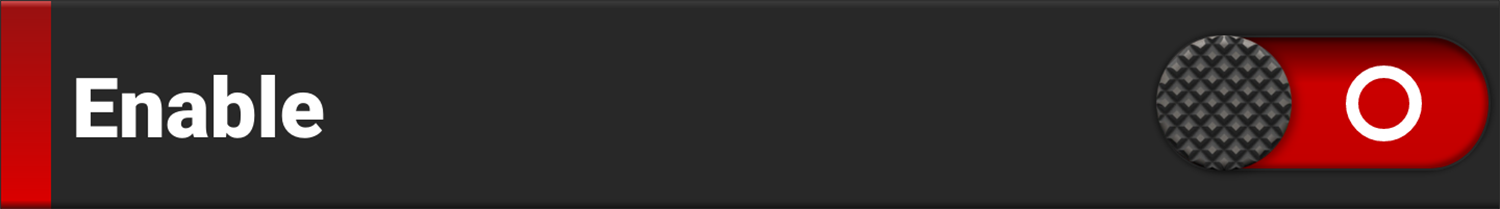

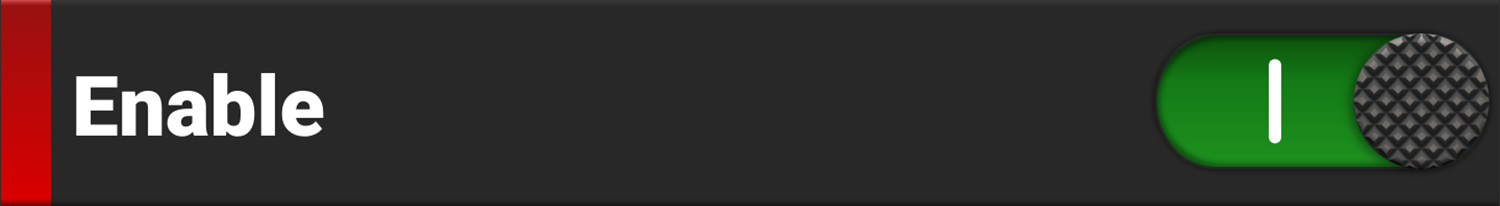

Enable

Use Enable to enable or disable the False Color tool.

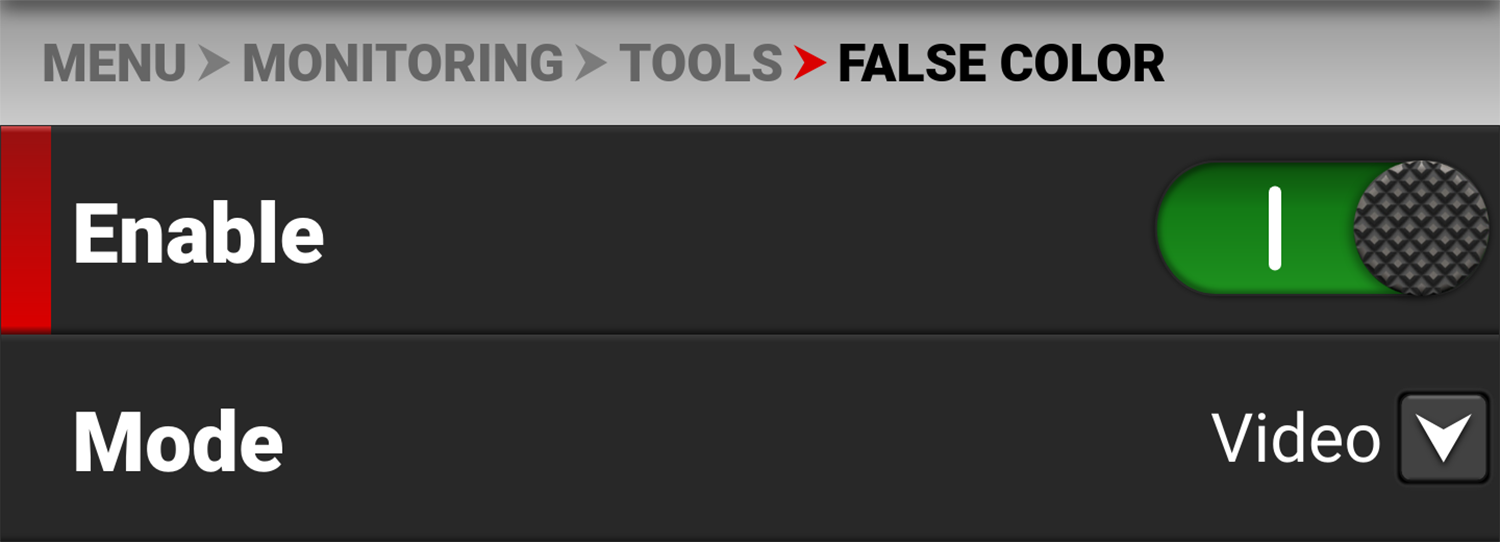

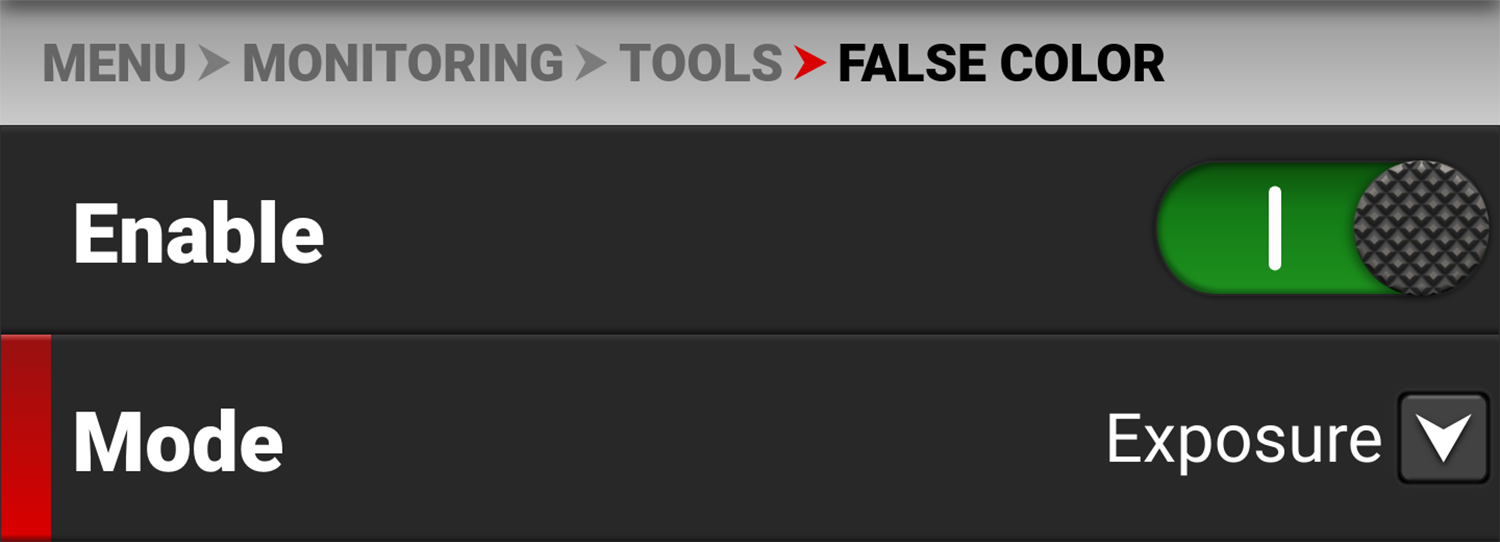

False Color Mode

False Color Modes include:

Items	Details
False Color Exposure Mode	Use false colors to determine an optimal balance between overexposure and underexposure.
False Color Video Mode	Access scene exposure in varying light without relying on the LCD image brightness.

NOTE: False Color modes display on video recorded through SDI to an external recorder when the Tools are enabled in the Monitor menu. When recording through SDI, use False Color modes only to help determine scene exposure settings, and then disable the mode before recording.
