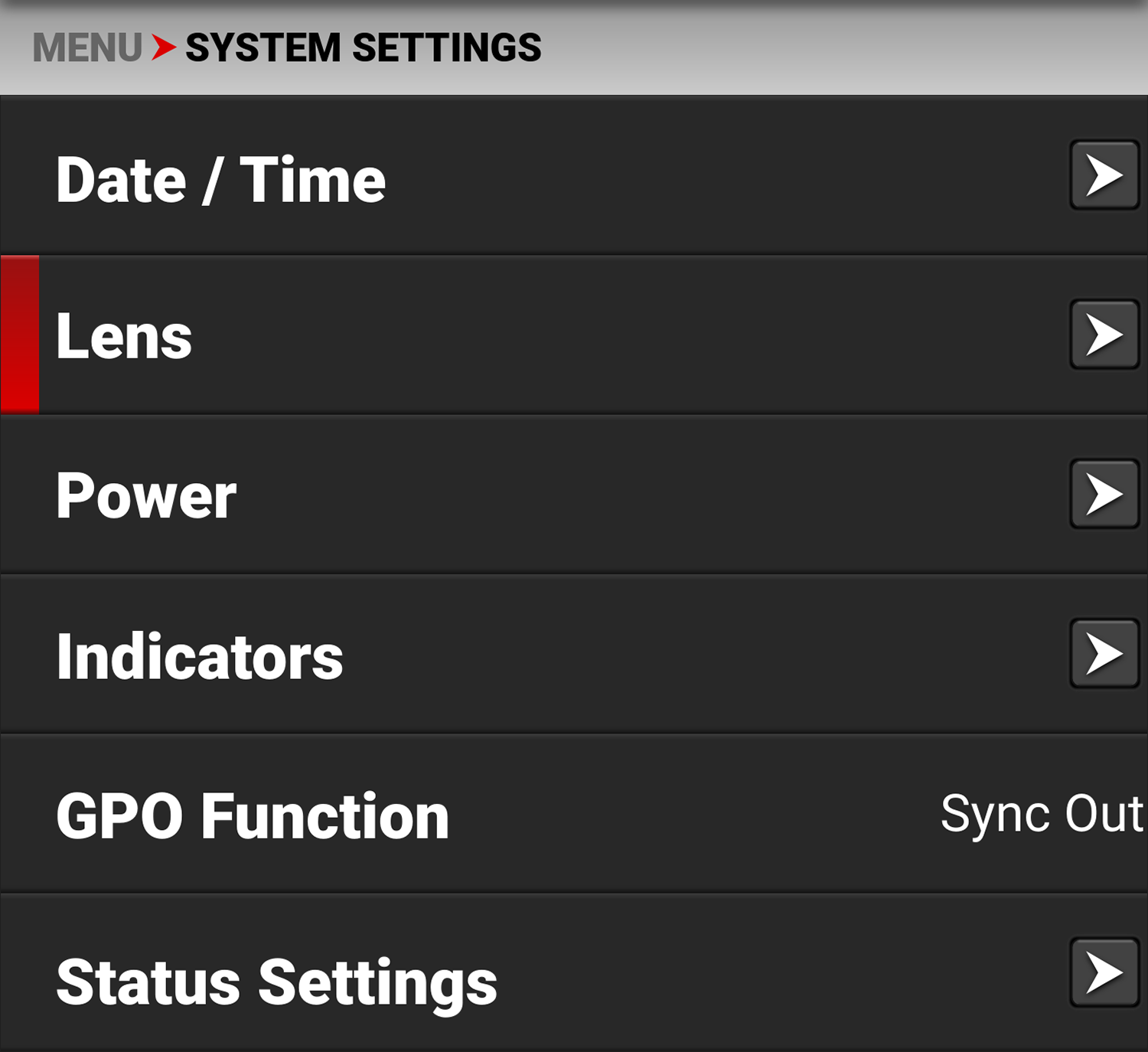

Lens

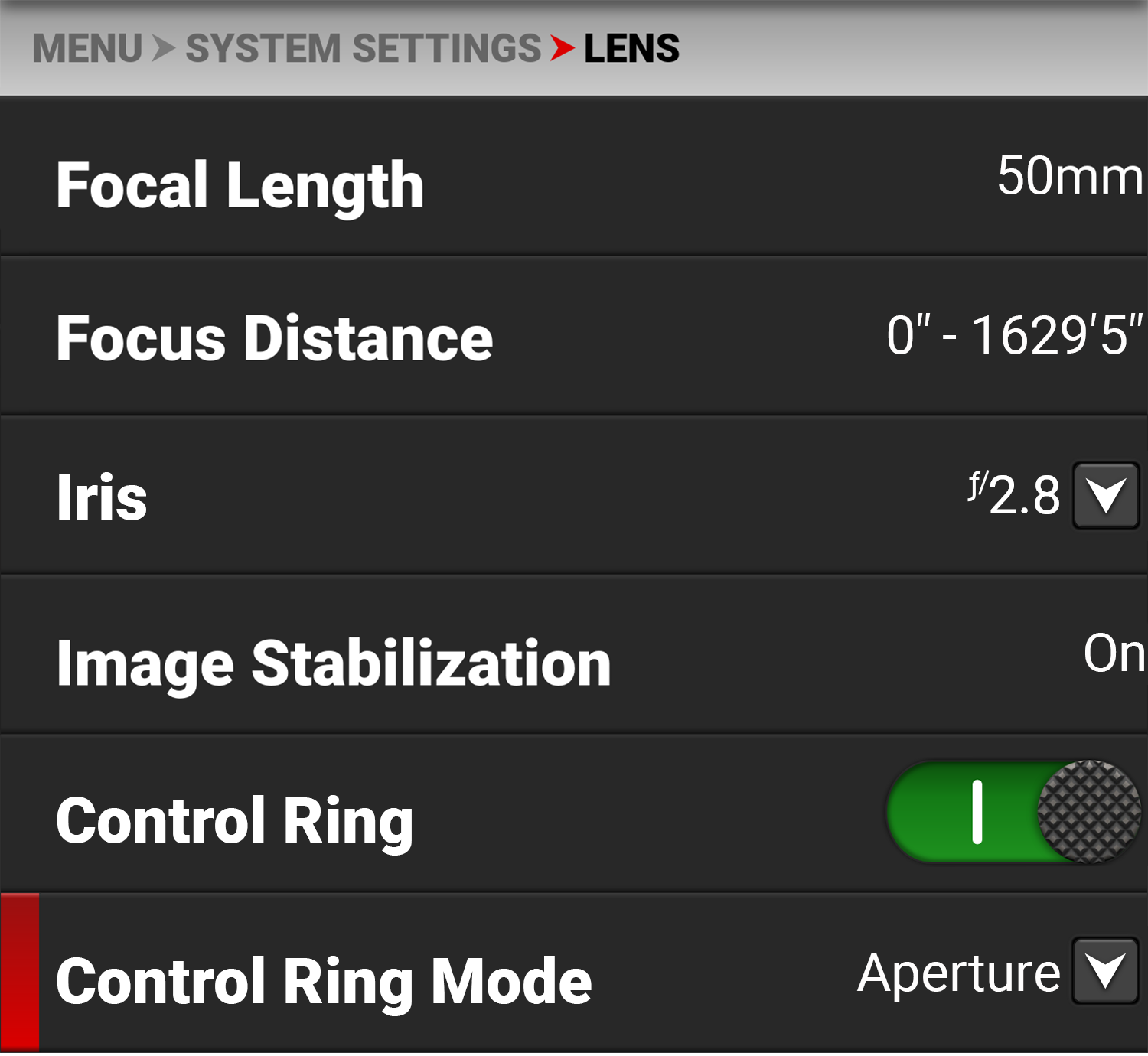

Use Lens to view information about the attached lens.
The information you can view from Lens includes:
|
Items |
|
Details |
|---|---|---|
|
Focal Length |
|
Displays the lens focal length value |
|
Focus Distance |
|
Displays the lens focal distance value |
|
|
Lens Iris menu |
|
|
Image Stabilization |
|
Displays the lens image stabilization status |
|
Control Ring |
|
Enables the lens control ring |
|
|
Control Ring Mode settings |
Iris

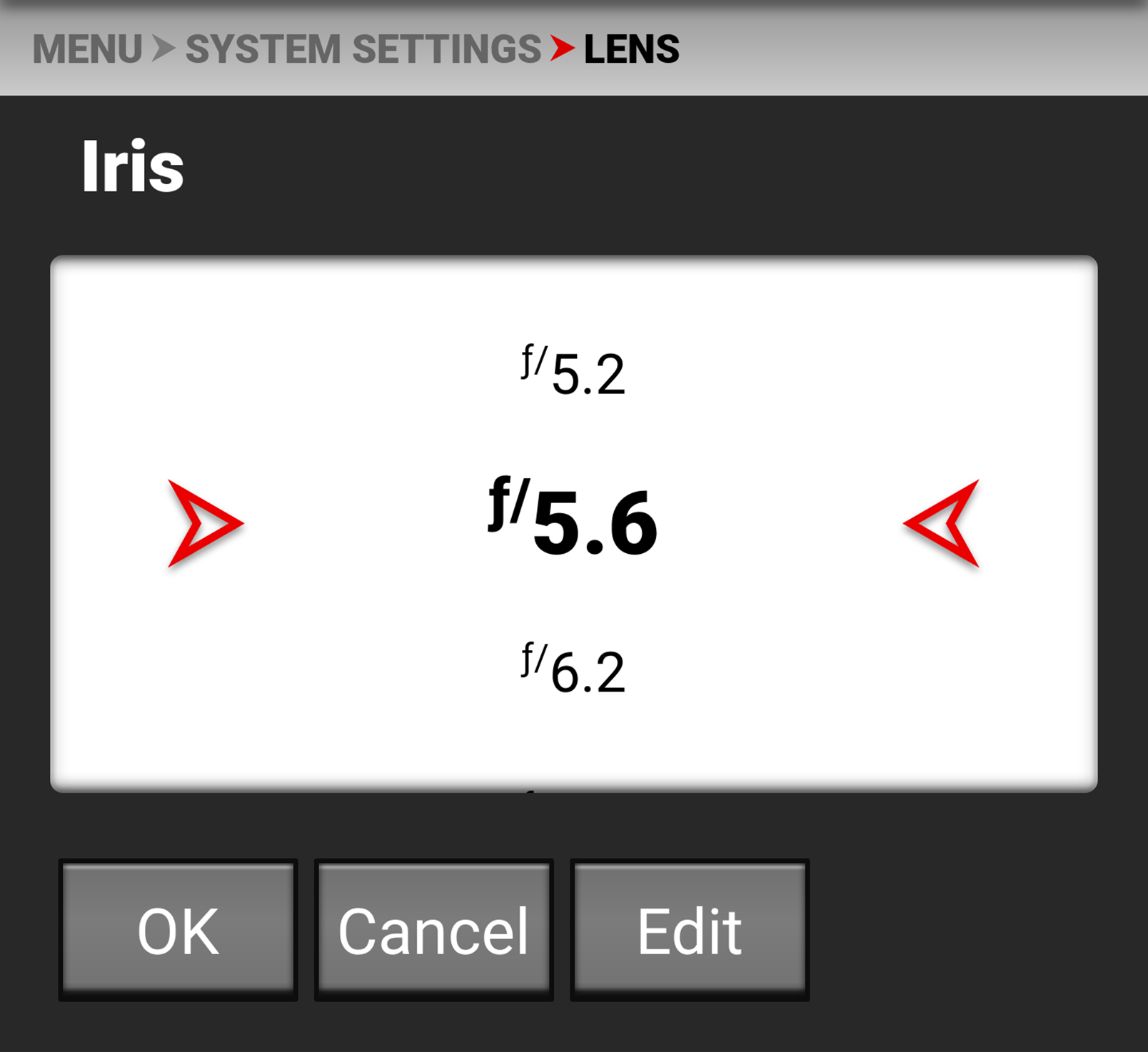

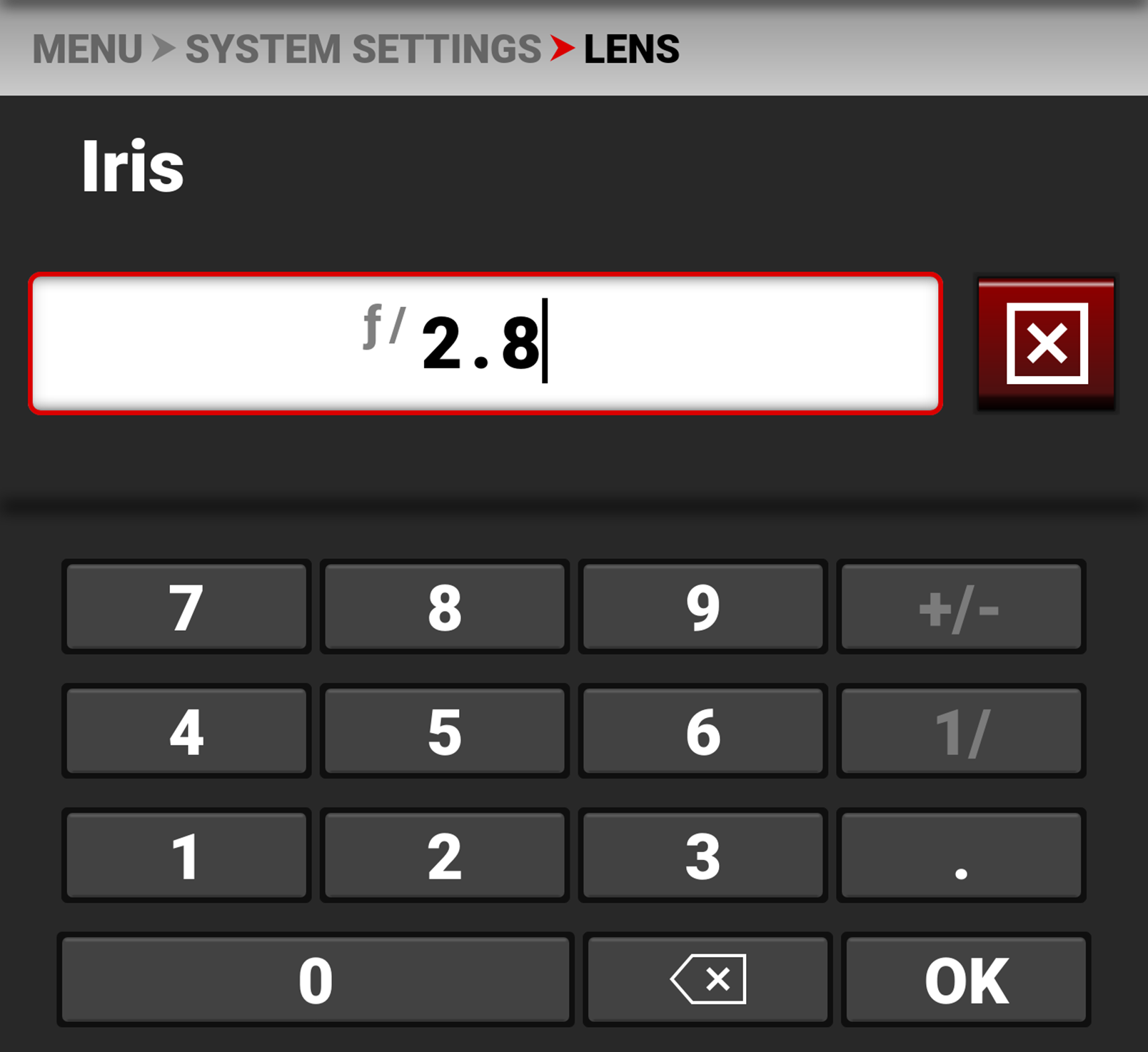

Use the Iris menu to select the camera lens f-stop. Tap Edit to open the keypad and enter the f-stop manually.
Control Ring Mode
Use Control Ring Mode to select the camera setting you want the Control Ring to adjust.
The modes you can select include Aperture (Iris, default), Shutter, ISO, White Balance, LCD Magnify, SDI Magnify, LCD + SDI Magnify, False Color Cycle, Peaking Cycle, and Tools Cycle.
